Aluminum Non-waterproof Solar Carport System
  • Aluminum Non-waterproof Solar Carport SystemAluminum Non-waterproof Solar Carport System
  • Aluminum Non-waterproof Solar Carport SystemAluminum Non-waterproof Solar Carport System
  • Aluminum Non-waterproof Solar Carport SystemAluminum Non-waterproof Solar Carport System

Aluminum Non-waterproof Solar Carport System

Egret Solar which is manufacturer with 7 years experience in solar mounting bracket industry,provide Aluminum Non-waterproof Solar Carport System.The solar port mounting is applied for large commercial and utility PV system,suitable for both framed and unframed panel installation.

Send Inquiry

Product Description

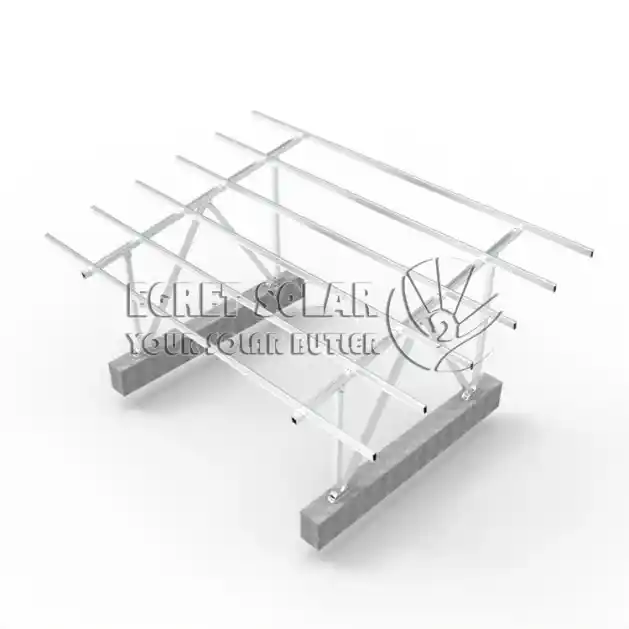

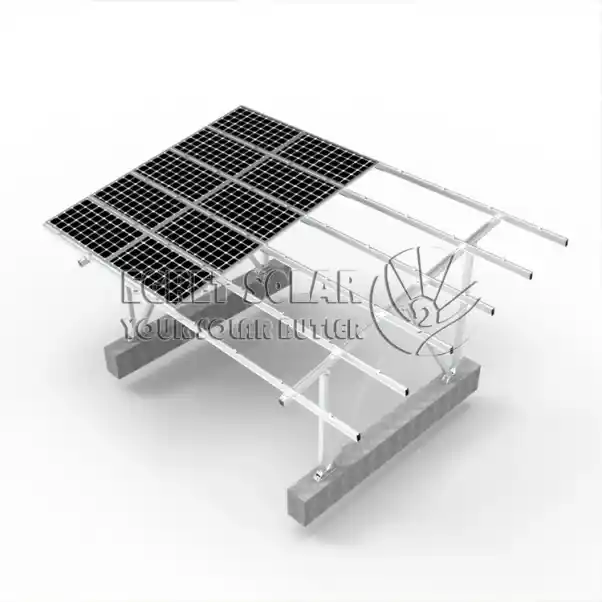

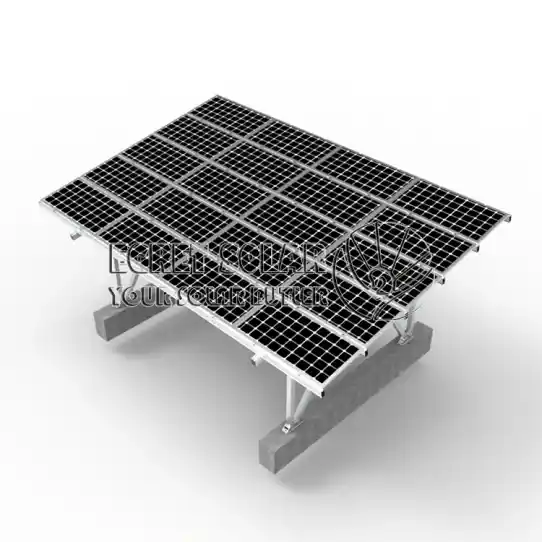

Aluminum Non-waterproof Solar Carport System is made of high quality aluminum (Abbreviation as: Al6005-T5) with super corrosion resistance,wear resistance, coating resistance and good welding performance,special customized designs can adapt to a variety of harsh environment, which suitable for large ground power station. The Egret Solar features W-Type bracket carport design, offering high load-bearing capacity and excellent stability. Using concrete piers as a base reduces piling time, and the pre-assembled support structure significantly improves the installation efficiency of commercial carports. Also,we have double V-type solar carport structure,provide more stronger strength adapt areas with high wind speed.

Aluminum Non-waterproof Solar Carport SystemNon-waterproof Carport





PRODUCT PARAMETERS


W-Type bracket carport
Product name W-Type Aluminum Carport
Layout Landscape
Wind Load 0-60m/s
Snow load 1.2KN/M²
Warranty 12Years
Specification Normal Customized.
Material AL6005-T5

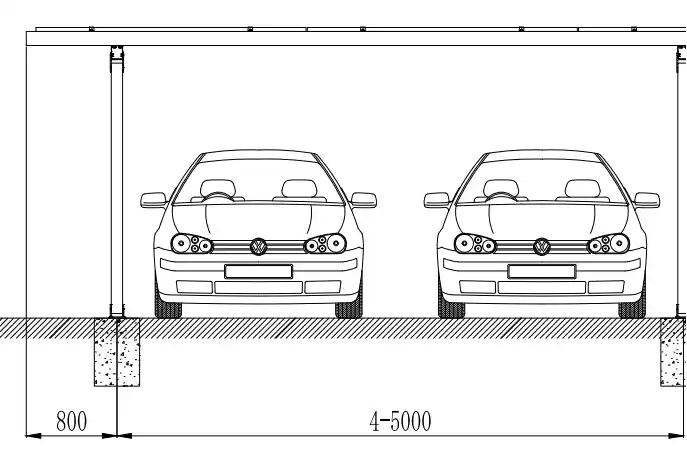

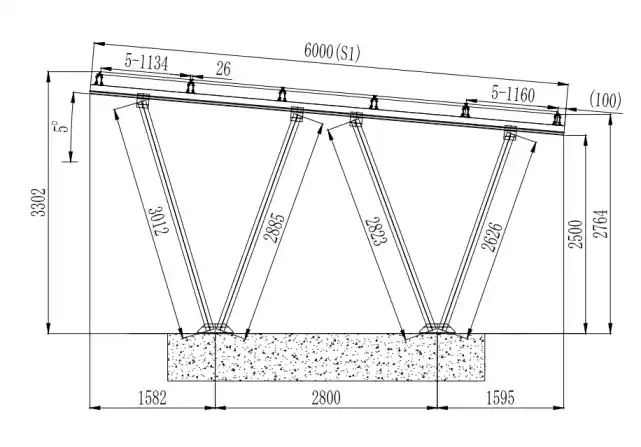

Solar car shedsolar parking carport

This Solar car shed is mainly used in the installation of public carports. Due to its pre-assembled feature, it’s also suitable for the installation of small carports. As shown in the picture above, this carport is 3 meters high, 6 meters long, and 5 meters wide, and can accommodate two standard-sized cars. However, the customization cost of aluminum carports is relatively high. For users with a lower budget, carbon steel carports are a better solution.


OUR ADVANTAGE

1. W-type structure, more stable.

2. Concrete block foundation , save time & costs.

3. Aluminum alloy construction and SUS304 fasteners support sandblasted surfaces.

4. Competitive price for large scale project .


PROJECT CASE

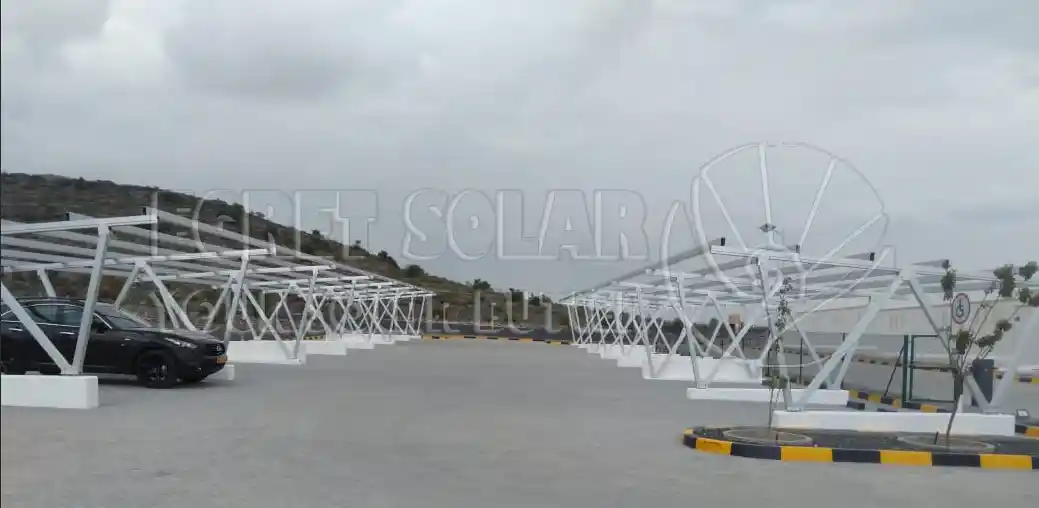

This project is commercial solar parking carport located at a resort in Europe. Self-driving tours are a popular mode of tourism in the area. Therefore, the resort's management wanted to build a solar-powered carport to provide a place for tourists to charge their vehicles and park.

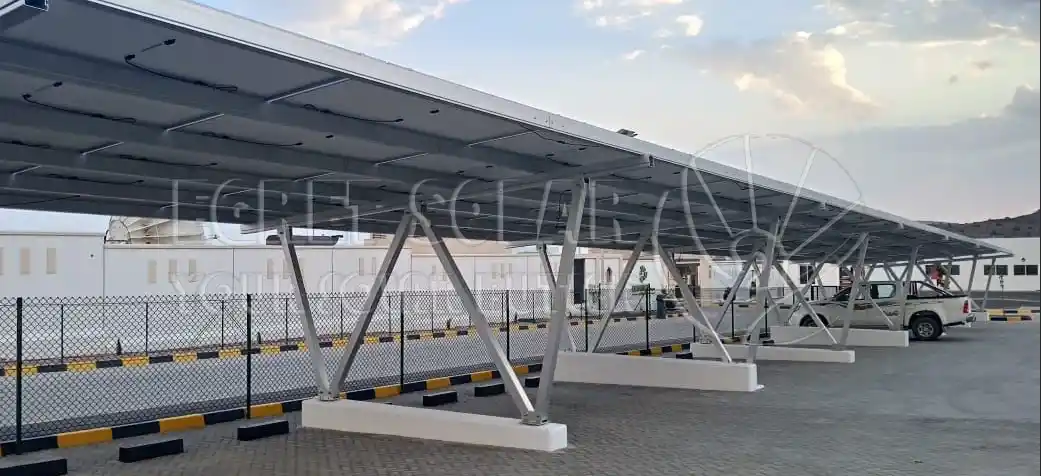

Aluminum Non-waterproof Solar Carport SystemNon-waterproof Carport


OUR FAQ

Q1. What’s the warranty of the solar carport?

A: Our solar mounting brackets have 12 years warranty and 25 years service life.


Q2. How can I get the price of solar carport?

1. Panel size: L*W*H(mm).

2. Panel Watt with Panel quantities.

3. Panel layout: landscape or portrait.Panel array pdf is better

4. Max wind speed ?Max snow?

5. Ground clearance? 2.5meters or what?

6. Material: Aluminum or carbon steel?

7. Waterproof function need?


Q3: Are there any other solar waterproof carport system recommended?

A: For limited budget person,non-waterproof carport is great choice.But for some rainy country,the waterproof function is necessary,so we also provide some waterproof solar carport.
