Solar Accessories Aluminium Rail for Metal Roof Mounting System

For metal roof installations, Egret Solar has developed Solar Accessories Aluminum Rail for Metal Roof Mounting System, delivering both fast installation and reliable structural performance. Made from extruded AL6005‑T5 aluminum alloy, the rail offers excellent strength to withstand high wind and snow loads in outdoor environments.

Simple in design, robust in structure, and built for long service life.The back of the rail is equipped with an innovative interlocking tooth pattern design, which is completely different from the smooth back groove. Through the precise tooth pattern on the back and the cooperation with the dedicated connecting piece, the position of the component can be adjusted continuously and fixed automatically without the need for additional locking blocks. This one-step locking significantly improves the installation efficiency and the reliability against pulling out.

Product Parameters

	Product name	Solar Aluminium Mounting Rail
	Layout	Landscape
	Installation Site	Solar Tile Roof Mounting System
	Wind Load	0-60m/s
	Snow load	1.2KN/M²
	Warranty	12Years
	Specification	Normal. Customized.
	Material	AL6005-T5

PROTECT CASES

This Solar Anodized Aluminium Rail is not a single piece of material, but the core hub of a complete installation system. When used in conjunction with dedicated rail connectors, mid clamps, end clamps, and L feet, it can quickly build a full-link support system from roof clamp fixation to component locking.The connectors join rails end-to-end, keeping everything aligned and stable across long runs. Mid clamps and end clamps lock panels in place firmly, with plenty of resistance to wind uplift and pull-out forces. The L-feet tie the whole system to the roof—whether you're working with clamps, purlins, or concrete footings, they adapt without fuss. This setup works across the board: metal roofs, concrete flat roofs, and ground-mounted arrays alike. One system, multiple applications.

Installation Process

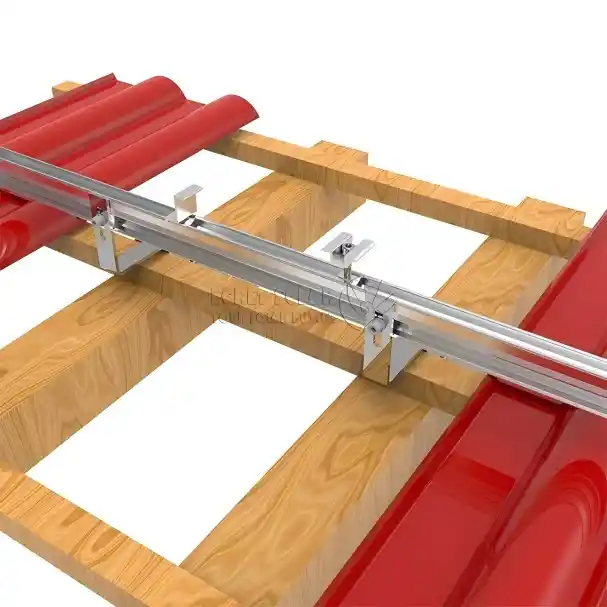

Based on the component layout drawing, accurately determine the installation positions of the hooks on the roof, ensuring that the spacing of the hooks matches the span of the rail support. Lift the corresponding roof tiles, hook the hooks onto the purlins, adjust them to be level, and then lock and fix them with self-tapping screws. Subsequently, lay the Rail for Solar Mounting Bracket longitudinally above the hooks, adjust it to the designed spacing, and use special bolts to connect and lock the rail and the hooks. When the rail length is insufficient, use special connecting pieces to extend it, insert the connecting piece into the end of the rail and tighten the screws to ensure a smooth transition and continuous load-bearing at the joint. After the rail system is laid, start installing the photovoltaic components from the edge, place the end clamp and the mid clamp in sequence, initially lock and position them, then uniformly adjust the component arrangement to make the overall appearance neat and the gaps uniform. Finally, conduct a comprehensive inspection of all bolt connection points to confirm that the torque is up to standard and there is no loosening.

ADVANTAGES

1.The installation of quick and standardized components is directly on the Solar Mounting Rail Kit, without the need for extensive on-site welding or drilling. The construction efficiency is high.

2.It is compatible with the vast majority of crystalline silicon photovoltaic panels, and the components from different brands are basically universal.

3.Uniform force distribution, protecting the photovoltaic panel.The panel is fixed on the rail by the end clamp, with the force distributed evenly, and it is less likely to crack or deform.

FAQ

Q1： Which types of roofs is this Solar Aluminium Rail Accessories suitable for?

A: Pretty much any roof you've got—tile, metal, concrete flat, even ground mounts. The key is the hooks. We've got a bunch of different hook designs, each one tailored to a specific roof type. Just tell us what you're working with, and we'll point you to the right one.

Q2: Does the rail have a standard length?

A: We stock standard sizes so we can ship fast, but we also do custom cutting. If your roof layout needs a specific rail length—say, to fit between obstacles or match a tricky span—just give us the measurements. No extra hassle, we'll make it work.

Q3: How much is shipping, and how long does it take?

A: It depends on how many units you are ordering if you want any custom work and of course where you want the shipment to go. For standard orders we normally ship within 20-25 working days. If it is a custom job we will confirm the time frame once we have agreed on the design. Send us a message with your order and delivery address and we will give you a real quote.
