Solar Ceramic Tile Roof Hook

To meet diverse roof installation needs around the world, Egret Solar offers solar ceramic tile roof hook, which are very popular in Southeast Asia.In the global residential solar system market, homes are primarily covered with various types of roofs, including ceramic tiles, terracotta tiles, asphalt shingles, and slate tiles.

The solar hook professionally optimized for clay tile roof.Each set is conventionally equipped with 2 high-strength self-tapping screws,which deliver firm fastening performance and are universally compatible with both steel beams and wooden beams. The hole spacing has been optimized to ensure even stress distribution.Also,we highly recommend mount customized hook with our hot selling rail.

PRODUCT PARAMETERS

Product Name	Clay Tile Solar Hook
SPEC	L286
Material	SUS304
Color	Nature
Surface	Smooth surface
Application	Tile Roof
Warranty	12 Years
Service Life	25 Years
Packing	Carton
Load Port	Xiamen

Recommended Matching Systems

Egret solar usually offer complete solar mounting brackets for tile roof.For standard roof mounting bracket,including solar stainless steel roof hooks、solar mid clamp、solar end clamp、solar aluminum profile and solar rail connector.

Hot Selling 406 Roof Clamp Mounting System (for 2 panels)

1-Solar tile roof hook*6

2-Solar mounting rail 2400mm*2

3-End clamp*4

4-Self-tapping screws(ST6.3*80mm)*12

Features of the solar asphalt roof hook

Protects the roof and prevents leaks

Installation does not penetrate the roof tiles,screw fixing points are hidden beneath the tiles. The tiles remain largely intact, requiring only minor adjustments or no cutting. Using hanger bolt installation system would damage the roof's waterproofing structure, making it susceptible to rainwater intrusion.

High load-bearing capacity

The SUS304 roof hook has higher rigidity than other materials and can withstand strong winds of 55–60 m/s and snow loads of 1–1.2 kN/m². The large base area distributes the load, reducing the risk of tile cracking.

Adjustable height

The holes on the hooks are adjustable elongated holes, which can be used to adjust the installation height of the rail, adapt to different installation needs, increase the heat dissipation space on the back of the solar panel, and enhance safety.

Professional Packaging & Logistics

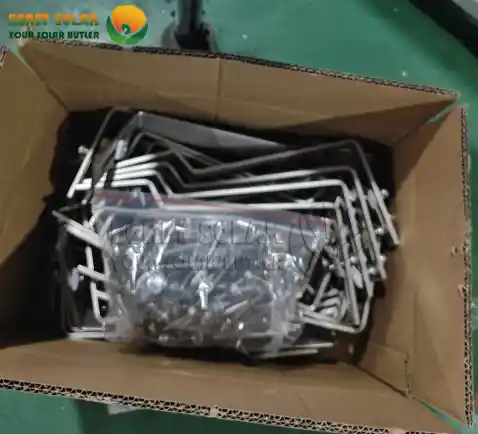

Solar mounting tile roof hooks are quite heavy and bulky, typically packaged in boxes of 30 piece (320*320*240mm) weighing 15kg, making them easy for workers to handle and install. Additionally, to prevent damage during transport, the self-tapping screws are individually sealed to avoid scratching the hooks.

FAQ

Q1. What is the weight capacity of Corrosion-resistant solar hook?

A1. A solar hook can support up weight of 40kg and is suitable for all solar panels currently available on the solar panel market.

Q2. Can adjust the height of this solar roof hook?

A2: No,it’s fixed solar roof hook,only can adjust rail height ,the roof hook height can’t.We also offer adjustable roof hook that allow adjust the height to modified the slope roof.

Q3: If the installation environment is harsh, are there any more stable hooks recommended?

A:We recommend using the dual-adjustable hook system, suitable for areas with heavy snow and wind in Europe. The overall hook weight is heavier, and the support frame is thicker, providing stronger support.
