Solar Embedded Anchor Bolts

Solar embedded anchor bolts are extensively implemented in ground-mounted solar farms and solar carport structures. The type of foundation used on a carport depends on whether it’s mounted to an existing parking deck structure or in the ground, most often in parking lots. The popular solution in ground-mount carport applications is concrete piers, dug at varying depths depending on soil quality. Parking deck projects, on the other hand, often don’t even have to move dirt. Instead, solar canopies are fastened to anchors or saddles attached directly to the existing structure.

Solar Anchor bolts are commonly used in the construction and engineering industries to attach objects or structures to concrete. L-Shaped Anchor Bolts (masonry anchors) vary in shape, size and material, depending on the specific application, however they all consist of a threaded end where a nut and washer can be attached for the external load.

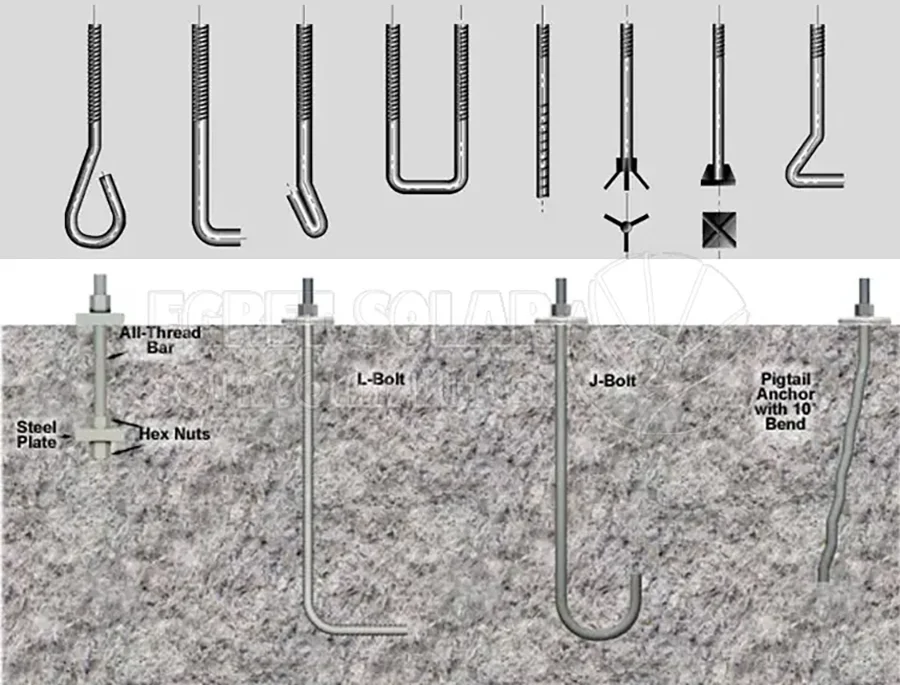

Solar anchor bolts, alias hook anchor bolts, J-shaped anchor bolts, L-shaped anchor bolts, anchor bolts, anchor bolts, anchor screws and anchor wires. Buried in concrete foundation, used as the base for fixing various machines and equipment. J-type anchor  bolt is one of the commonly used anchor bolts. Generally made of Q235 steel, those with high strength are processed with Q345B or 16Mn material, and those with 8.8 grade strength are also processed with 40Cr material, and occasionally with secondary or tertiary threaded steel. Anchor bolts can be divided into wool, thick rod and thin rod. Wool, that is, raw material steel,  is directly processed from round steel or wire without restructuring; The thick rod is called A-type and the thin  rod is called B-type, all of which are made of steel and processed with the corresponding required rod diameter.

How to Use

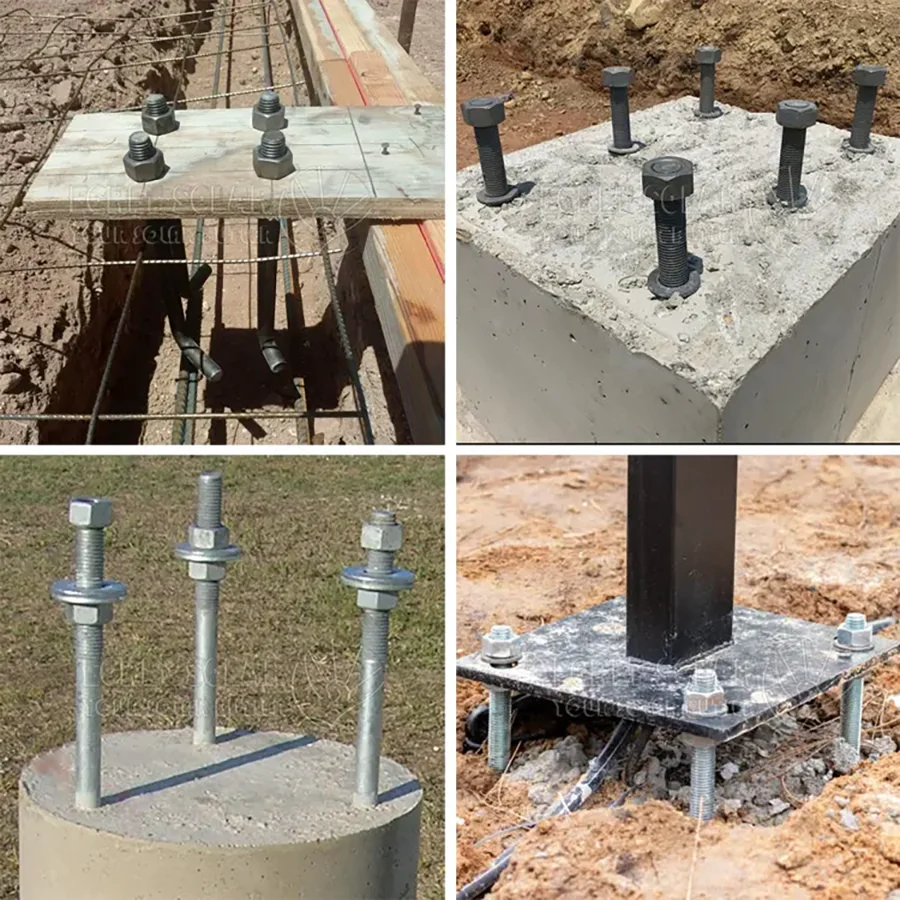

Solar Precast L-Shaped Anchor Bolt is curved so it may grip onto a masonry or concrete building. Egretsolar deliver these anchor bolts that are often cast in place, which means they are put into the concrete right away after it has been poured. As the concrete hardens, the bolts are kept in place by fastening. In new construction, concrete anchor bolts are used to fix steel columns to concrete piers, secure a structure’s walls to concrete slabs and foundation walls, and anchor equipment to concrete pads.

Solar L-Type Foundation Anchor Bolt in ground project could be embedded into the wet concrete, with screw threads protruding above the concrete surface.

It could anchor the support structure on ground, Like solar ground mounting foot, columns, highway sign structures, light poles and structural steel columns, etc.

FAQ

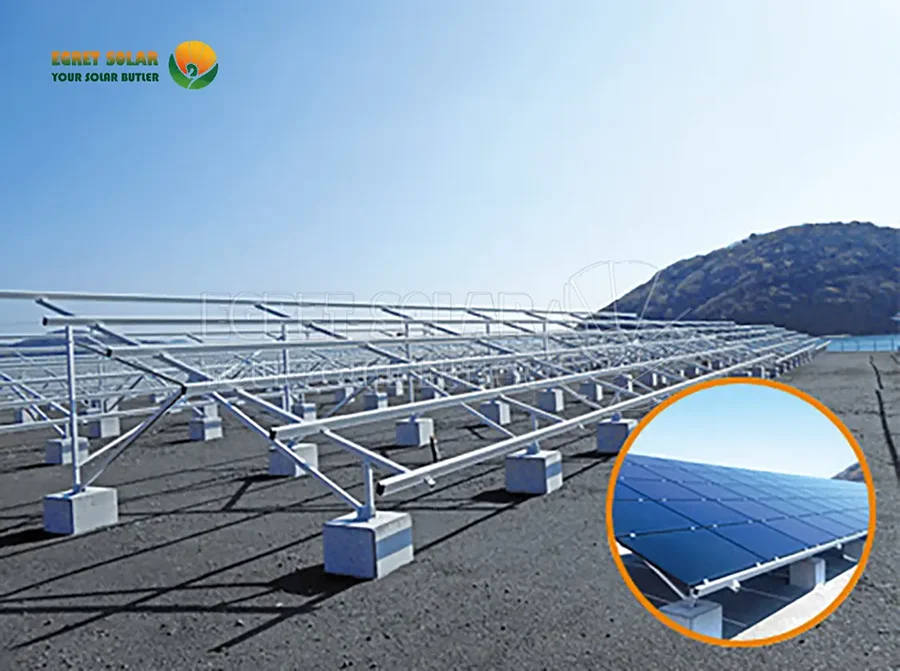

1. How Solar Embedded Anchor Bolt applied in Solar Ground-Mounted Solar Farms installations?

Application: Anchor steel columns of fixed-tilt or tracker mounting systems to concrete foundations (piles/grade beams).

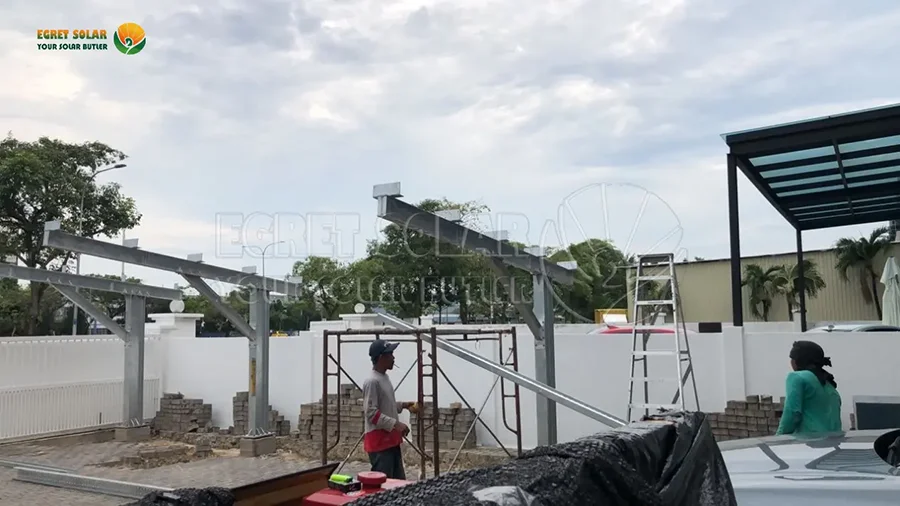

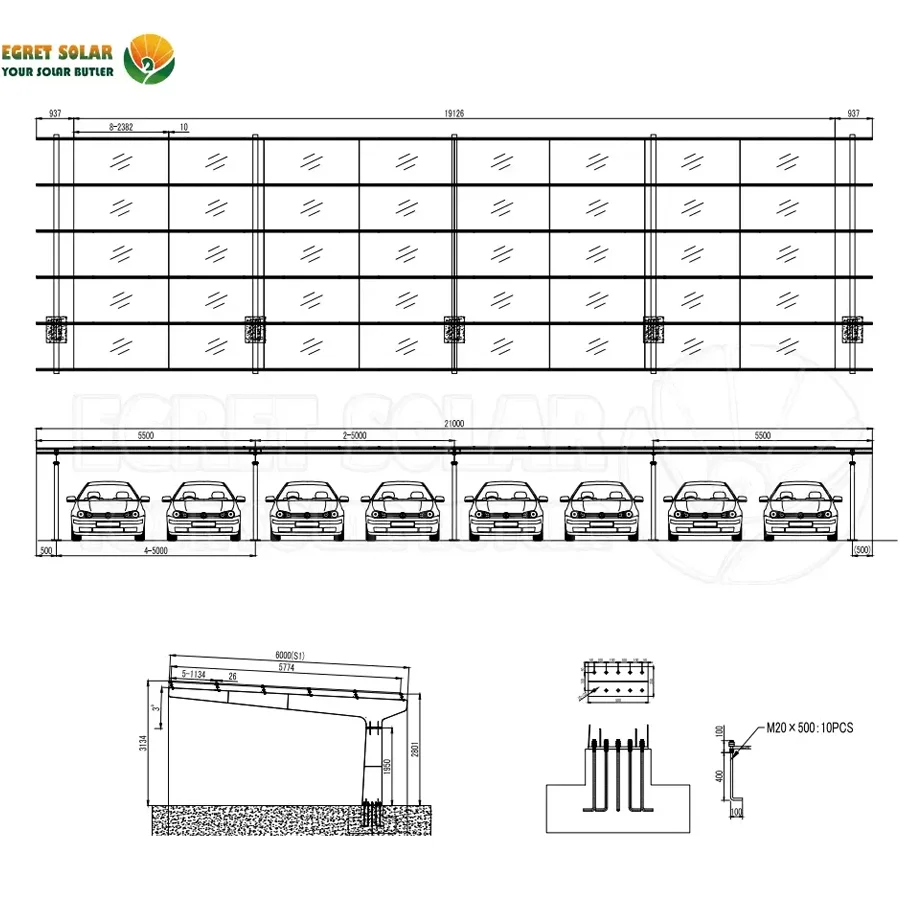

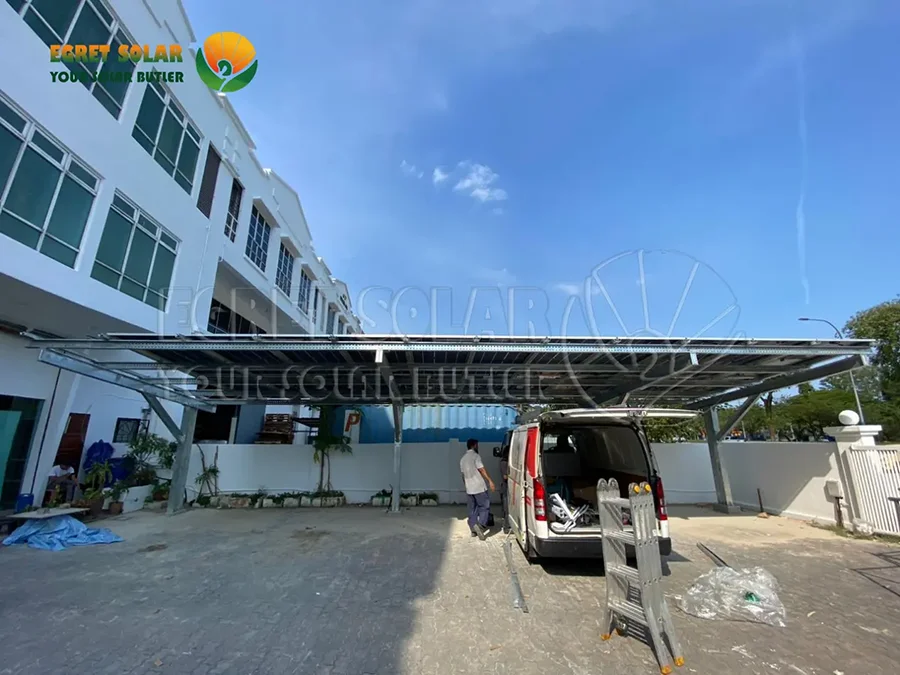

2.How Embedded Anchor Bolt applied in Solar Carport Structures installations?

3. Application:- Secure cantilevered columns to pier foundations or continuous footings.
