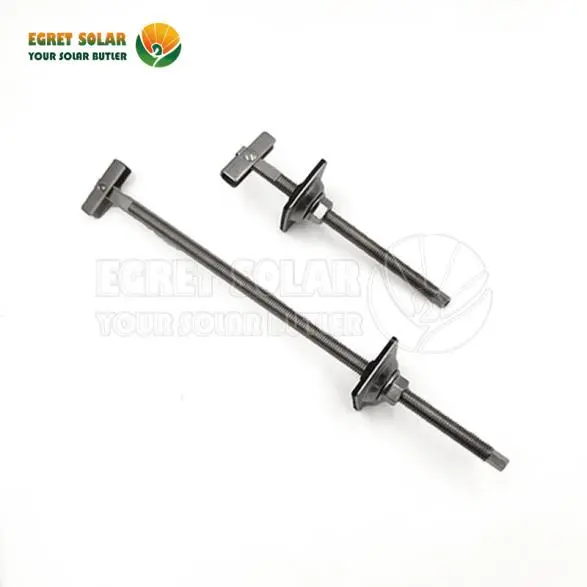

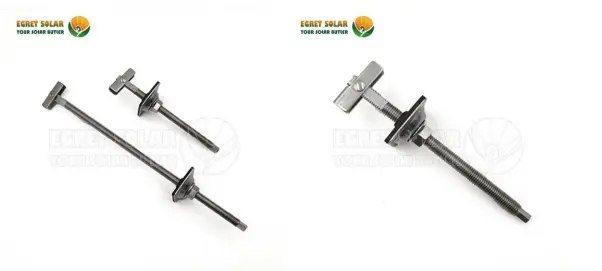

Solar Hanger Bolt

As a fixing component for solar mounting structures, this Photovoltaic Stud Bolt is an innovative design for steel or wooden beam. It provides high efficient solution for solar panel installation.

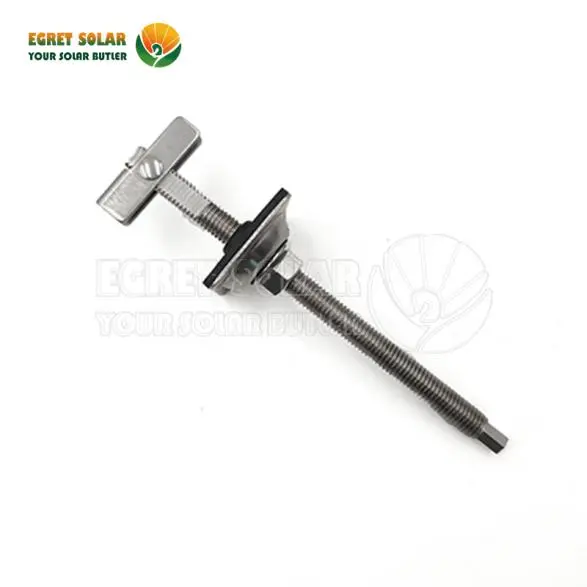

One set of Solar Double Head Screw includes stainless steel bolt ,self-rotating part, EPDM rubber ,waterproof cap & flange nuts .The EPDM rubber &waterproof cap   provide an excellent seal in extreme weather conditions.Its sizes and specifications will vary depending on the specific installation requirements . And the specific selection should be based on the design requirements of the bracket and assembly.

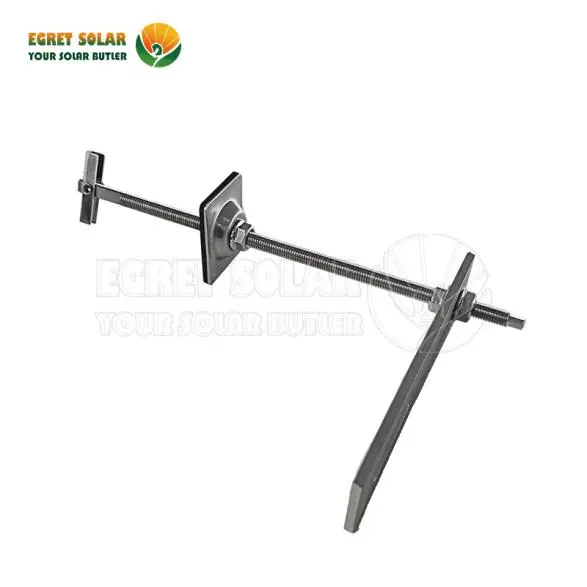

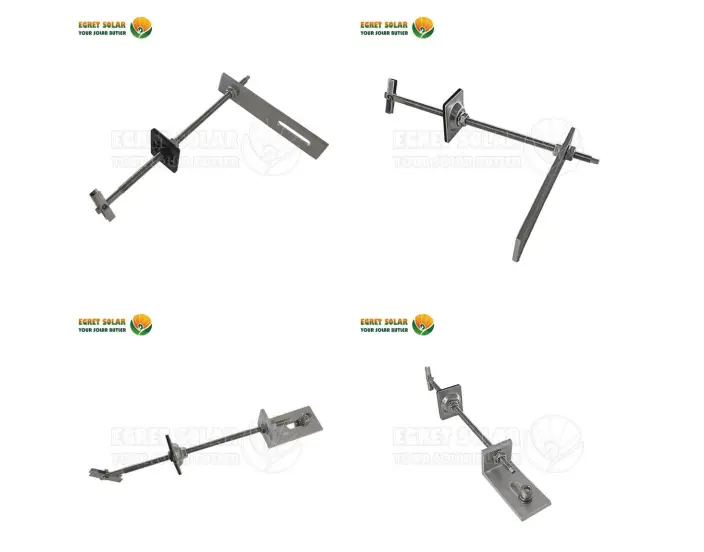

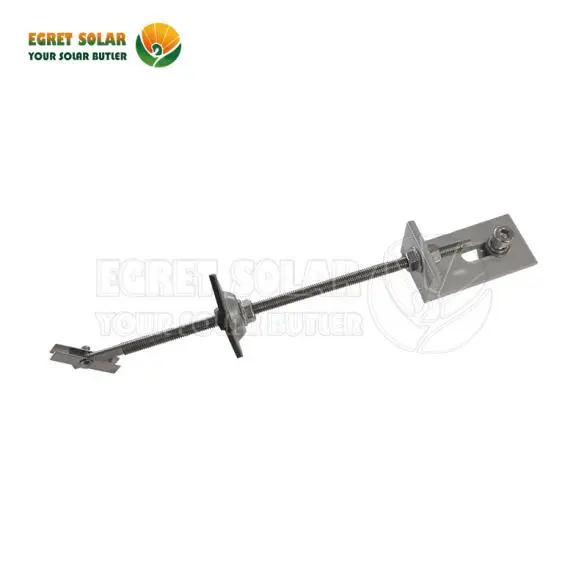

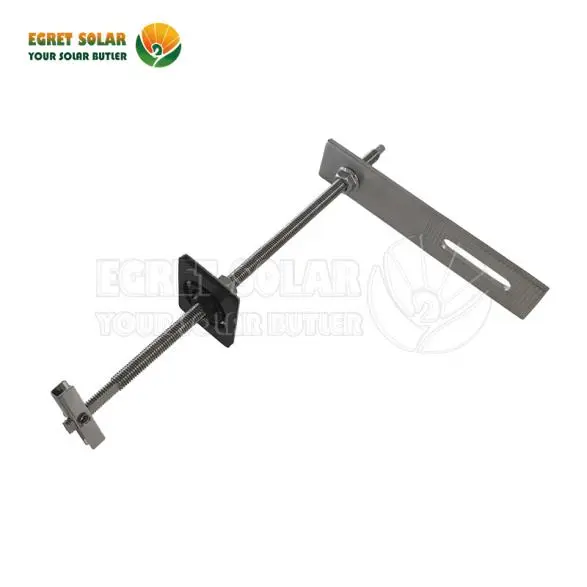

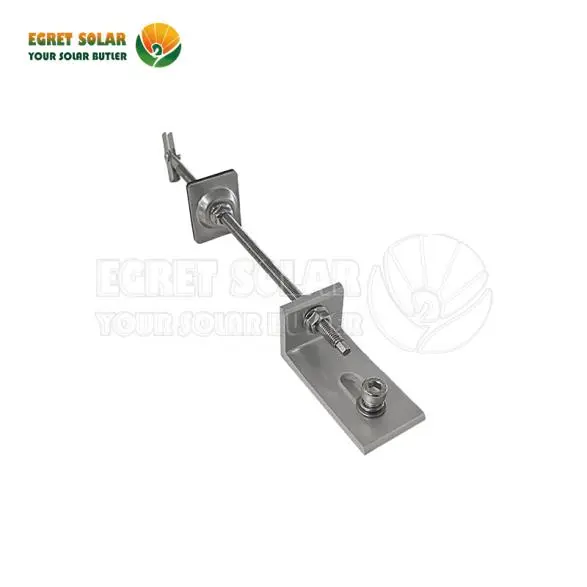

It can match with L feet or adaptor plate,to support aluminum rail(like Egret Solar’s 45/47/40 aluminum profile) on various roof types.

This Solar Hanger Bolt is made of high-quality A2 stainless steel with a corrosion-resistant surface treatment ,and EPDM. Its installation is more convenient and effective. The following steps can help you get more ideas about how to install it?

1.Pre-punched hole in the steel or wooden beam.

2.Insert the hanger bolt into the pre-drilled hole

3.With a gentle shake, the self-rotated part perpendicular to the bolt and locks under the beam.

The Features of the photovoltaic stud bolt as follows ,

Easy & Fast to install

High corrosion resistance A2 stainless steel material ;

Ingenious design optimized for steel &wooden beam;

Good waterproofing;

Height Adjustable

FAQ

Q1: What is your main products

A1: We mainly provide solar panel supporting structures & accessories. Like solar roof mounting system ,ground mounting system , carport mounting system,ballast mounting system,aluminum rail ,mid clamp ,end clamps,solar roof hook ,solar roof clamps ,PV cable ,PV connector and so on .

Q2: Do you provide free samples ?

A2: Yes , we provide free samples ,but you need to bear the freight .

Q3: Do you offer customized service ?

A3: Yes ,Accept Customization .

Q4. What's the material of Solar Hanger Bolt?

It is stainless steel 304, which is named A2 or stainless steel 1.4301 in Europe.

Material carbon steel also can be offered if needed.

Q5. Are these Solar Hanger Bolt Kit pre-assembled before shipment ?

A5:Yes, it will be pre-assembled with nut, EPDM rubber & waterproof cap.
