Tile Roof Solar Hook
  • Tile Roof Solar HookTile Roof Solar Hook

Tile Roof Solar Hook

Xiamen Egret Solar boasts quality tile roof solar hook suitable for most types of tiled roofs. The hooks can be connected sideways or laterally for special installation needs, offering the best and easiest solutions. The tile roof bracket are fully compliant with international standards on wind & snow load, making them suitable for a wide variety of climatic zones.

Brand : Egret Solar
Material :Stainless Steel
Color : Natural.
Lead Time:10-15 Days
Certification :ISO/SGS/CE
Payment :T/T,L/C
Product Origin : China
Shipping Port :Xiamen

Send Inquiry

Product Description

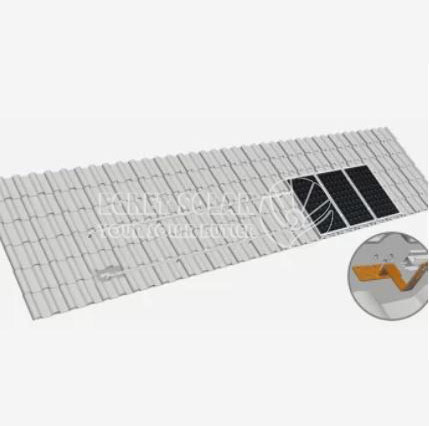

The Tile Roof Solar Hook is a reliable and durable solution designed for installing photovoltaic (PV) solar panels on tiled roofs. Our solar roof hooks are specifically engineered to be compatible with various tile roof types. They provide a secure foundation for solar panels, ensuring that they remain firmly in place while maintaining the roof’s integrity. Made from high-quality stainless steel, these hooks offer excellent corrosion resistance and long-lasting performance, even in extreme weather conditions.

The patented solar panel mounts eliminate the need to remove tiled roofs, significantly reducing installation time and minimising tile breakage. The system can also be installed on the ridge of curved tile roofs for superior water leakage protection.


Xiamen Egret Solar’s robust solar panel mounts for pitched roofs represent an ideal solution for reliably fixing solar panels thanks to their stability, weatherproof characteristics and durability. In addition, they coexist with the building harmoniously, especially black anodised components and rails are available to cater to the customers’ diversified needs. With a wide range of roof hooks and solar panel mounts, Xiamen Egret Solar’s mounting systems can be applied to most roof types, including pitched tile roofs, pantile roofs and even slate roofs.


Installation Steps

1、Position the Hook: Place the solar hook directly over the rafter or batten, ensuring the hook is aligned and secure.

2、Secure with Screws: Use stainless steel screws to firmly attach the hook to the rafter or batten.

3、Attach the Rails: Connect the mounting rails to the solar hooks using bolts and nuts, ensuring a level and secure alignment.

4、Mount Solar Panels: Install the solar panels onto the mounting rails and secure them with clamps.

5、Final Inspection: Double-check all connections for security and alignment.    Advantages:·  High Compatibility: Works with most types of roof tiles, including clay and concrete tiles.

● Durability: Made from premium stainless steel for superior strength and corrosion resistance.

● Easy Installation: Designed for quick and efficient installation, minimizing labor time on-site.

● Adjustable Design: Some models feature adjustable height, ensuring a perfect fit for uneven roofs.

● No Roof Penetration Damage: Engineered to avoid damaging roof tiles, maintaining roof integrity and water resistance.

● Wind Resistance: Securely holds solar panels in place, even under high wind conditions

PRODUCT PARAMETERS

Product name Tile Roof Solar Hook
Installation Site Flat Roof Solar Mounting Systems
Material Stainless steel
Surface Treatment Anodized
Wind Load 60m/s
Snow Load 1.6KN/㎡
Bracket Color Natural or Customized
Warranty 12 years


FAQ


Q1: Is the tile roof solar hook compatible with all types of tiles?

A1: Our solar hooks are designed to work with a variety of tile types, including flat, S-shaped, and Spanish tiles. However, it is recommended to check with us to ensure compatibility with unique tile shapes.

Q2: Does installing the solar hook damage the roof?

A2: No, our solar hooks are designed to minimize roof penetration and ensure that the waterproofing of your roof is maintained. Proper installation ensures no damage to the tile or roof structure.

Q3: What material is the tile roof solar hook made of?

A3: The solar hooks are manufactured from high-quality stainless steel (304/316) for excellent strength and corrosion resistance.

Q4: Can the height of the solar hook be adjusted?

A4: Yes, we offer adjustable models that allow the height to be modified to accommodate uneven or sloped roofs.

Q5: What is the lifespan of the solar hook?

A5: The solar hooks are made from durable materials and are designed to last for 25 years or more, making them an excellent long-term solution for solar installations.

Q6: How much weight can the solar hook support?

A6: Each hook can support up to 60 kg, making it suitable for most solar panel installations.
