Adjustable Angle Folding Solar Tripod Mounting System

The Adjustable Angle Folding Solar Tripod Mounting System is east to store, a Adjustable Solar Panel Kit weighs approximately 3 kg and is approximately 1.2 meters long, making it easy to store in the trunk of a car during a picnic or outing. It's secured with screws, making assembly and disassembly easy.

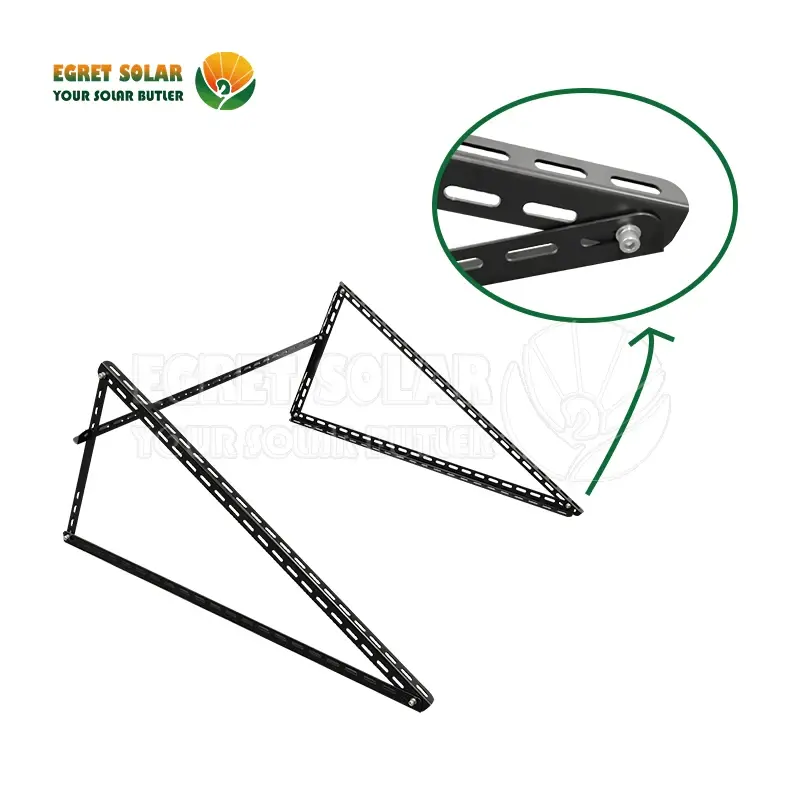

One of the advantages of the adjustable angle folding solar tripod system is Multi-angle adjustment.The Wall Solar Bracket features a row of holes on the side, allowing for adjustment according to the sun's direction in all seasons, maximizing power generation efficiency. It can be installed on any wall, not just rooftops.

The Solar Racking Adjustable Triangle has a stable structure with excellent corrosion resistance. Once assembled, the bracket forms a triangular structure, ensuring even load distribution. The aluminum angle is made of AL6005-T5, which has a dense oxide film on its surface that effectively resists acid and alkali corrosion. The steel angle is made of S350+ZAM275, which contains trace amounts of Mg, creating a fluid film on the surface that covers tiny pores and provides excellent corrosion resistance and self-healing capabilities.

How to install the Adjustable Angle Folding Solar Tripod Mounting System?

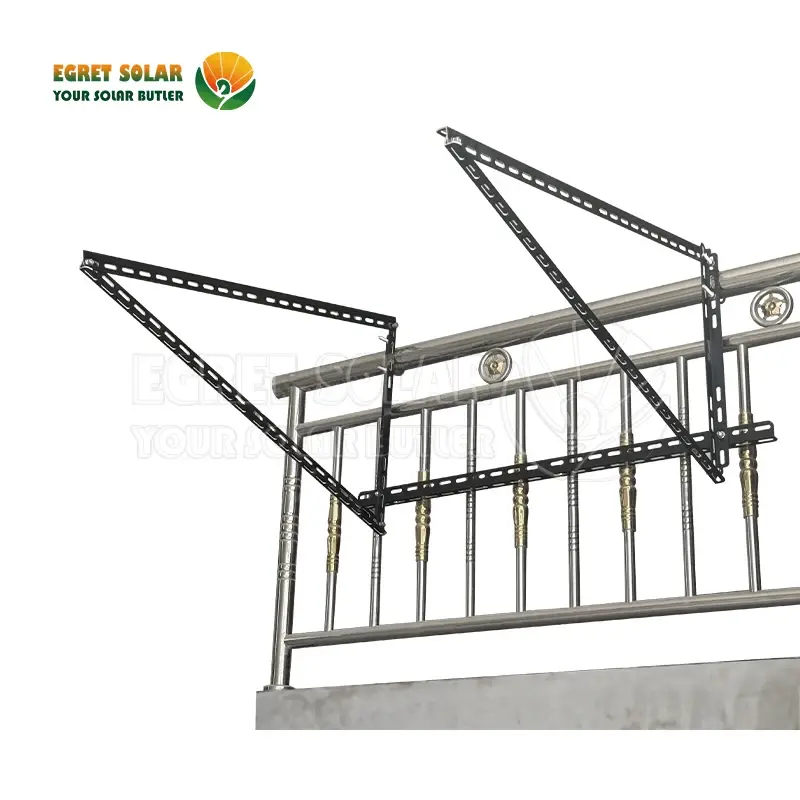

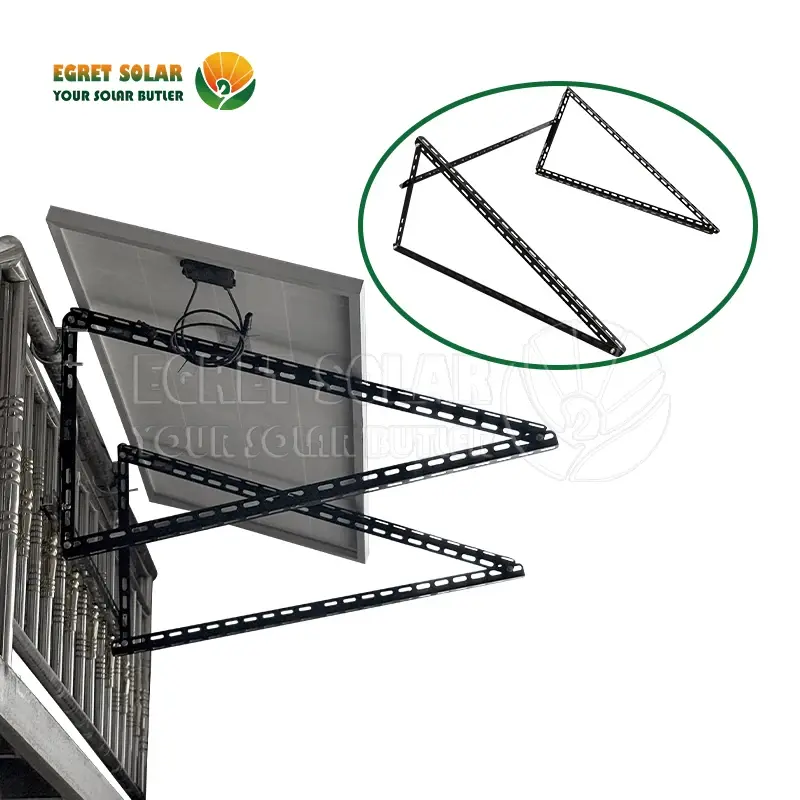

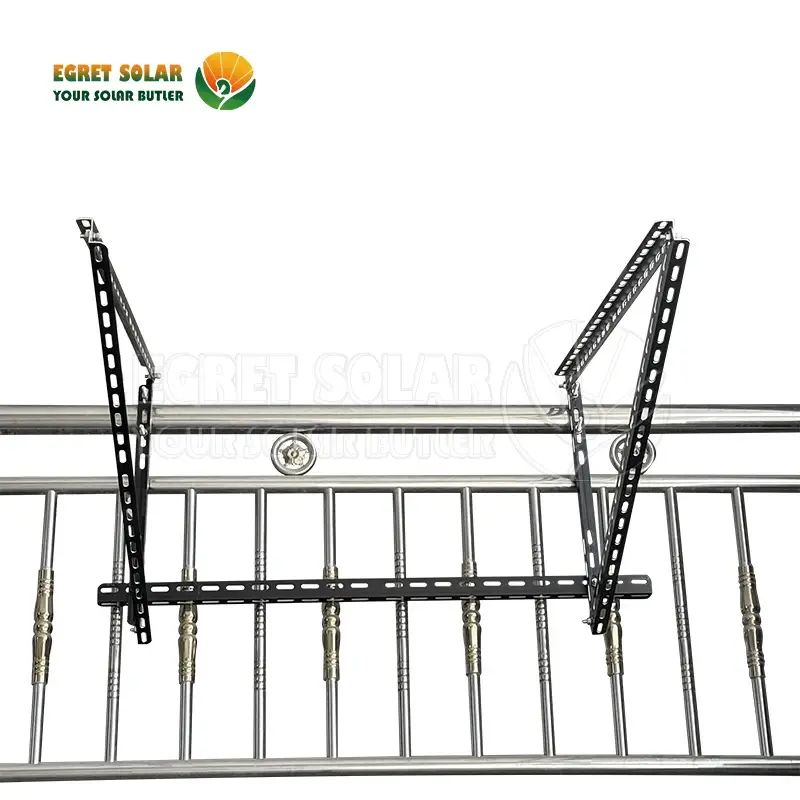

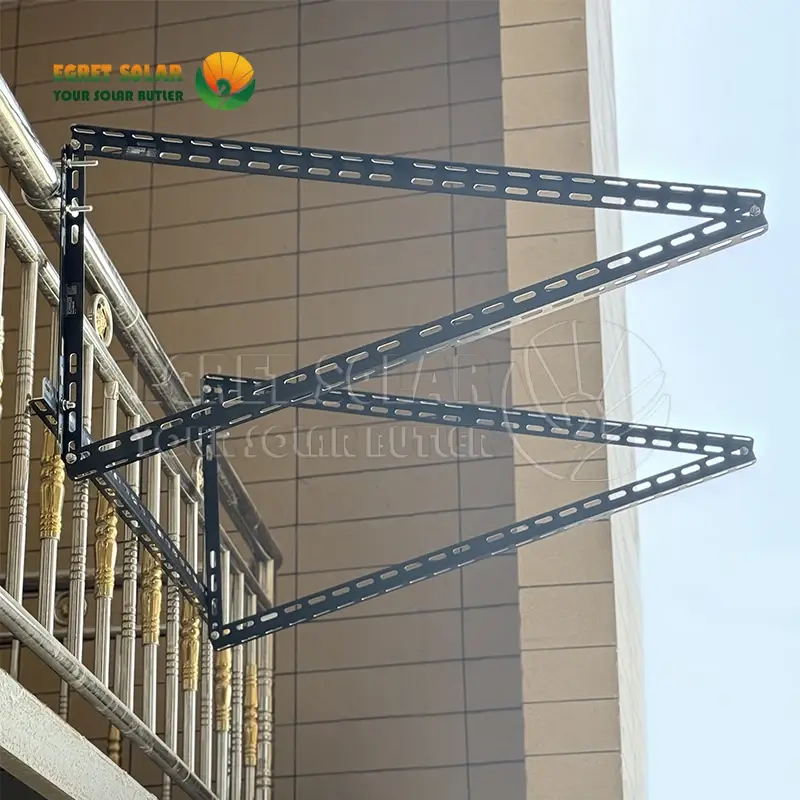

If your home has a flat roof or a vertical roof, you can install the Foldable Adjustable Triangle Tilt. If you want to install it on a balcony railing, you can use hooks. If it's a wooden roof, you can use self-tapping screws to secure the bottom beam. Concrete roofs can be installed by placing weights or using expansion bolts.

Specifications:

Material: Aluminum/S350+ZAM275

Installation Site: Tin Roof/Wall/Roof

Color: Natural

Tilt Angle：0-60°

Wind Load：60m/s

Snow Load：1.6KN/㎡

FAQ

Q1: What’s the material of the solar triangle mounting system?

A1: AL6005-T5 or S350+ZAM275.

Q2: How long the length of solar triangle mounting bracket?

A2: Customizable based on the length of the component board, mounting angle, and other factors.

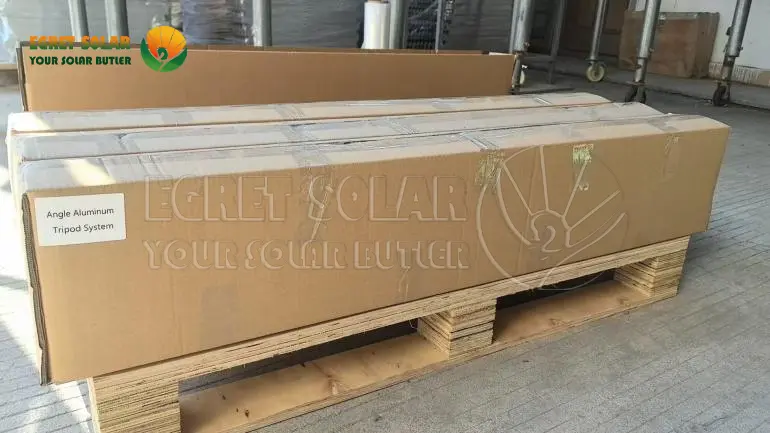

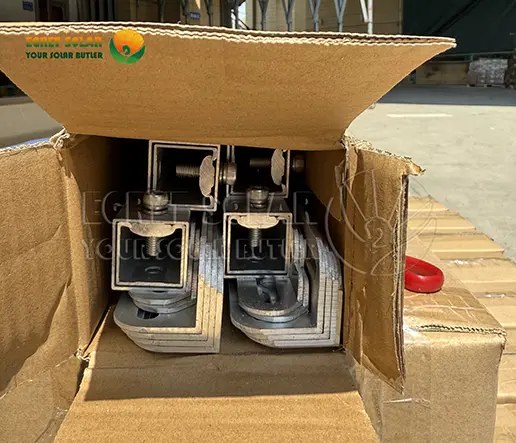

Q3: What is the packaging method the Solar Tripod Mounting ?

A3: Securely wrap the profile with stretch film and place in a 5mm thick carton.
