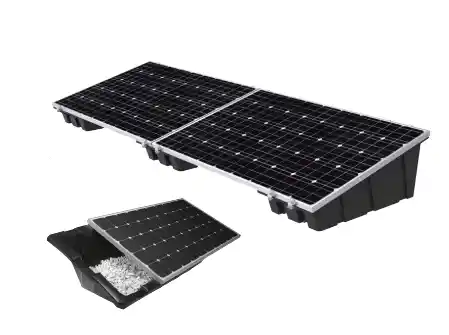

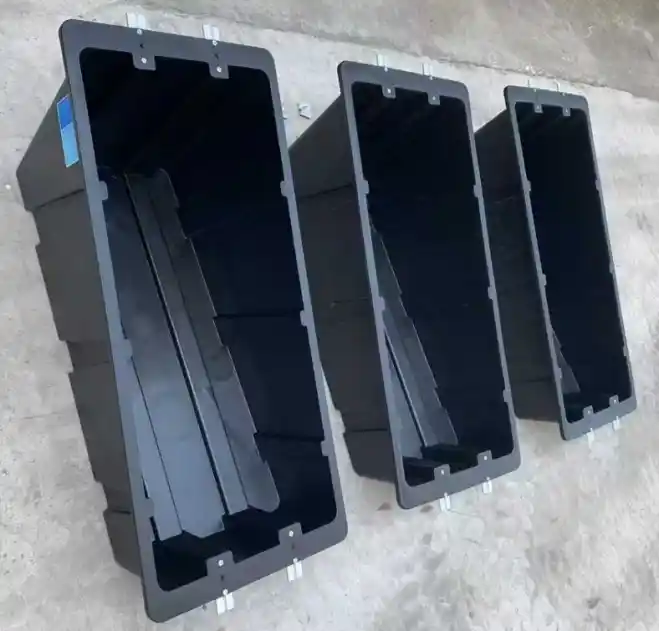

HDPE Plastic Ballsted Solar Bracket

Egret Solar's HDPE Plastic Ballsted Solar Bracket is a popular solution for installing solar panels. Lightweight, economical, and durable, it's ideal for solar installations. The plastic bracket is particularly suitable for areas where solar roof mounting system is inconvenient, such as open fields or large commercial properties. Our products are in stock; please contact us for more detailed information!

Product Features

1. Plastic Solar Bracket HDPE Ballast is widely used for crystalline silicon and thin-film solar panel modules.

2. Easy and quick installation.

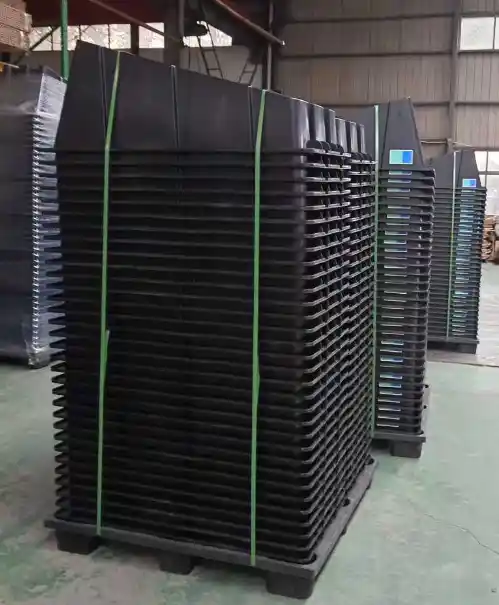

3. Stackable, easy to move and transport.

4. Enclosed ballast support reduces wind impact.

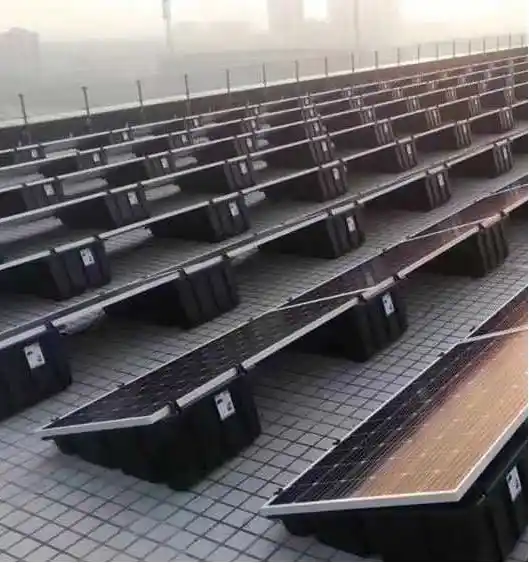

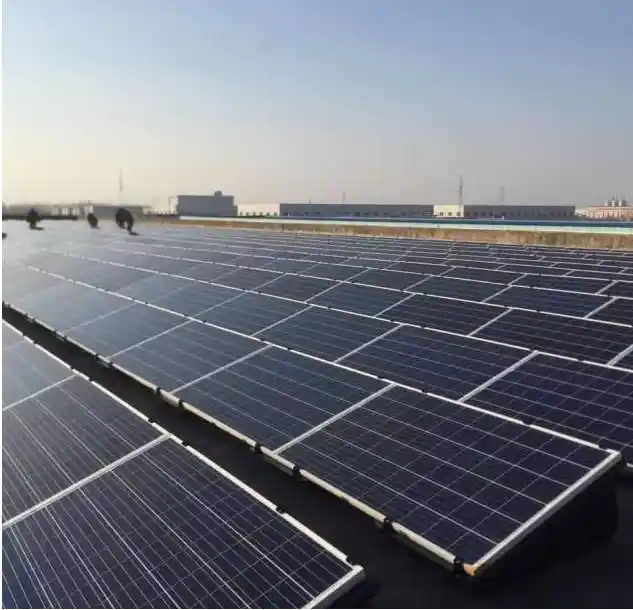

5. Suitable for flat roofs/ground surfaces or projects requiring relocation.

Why Choose This System?

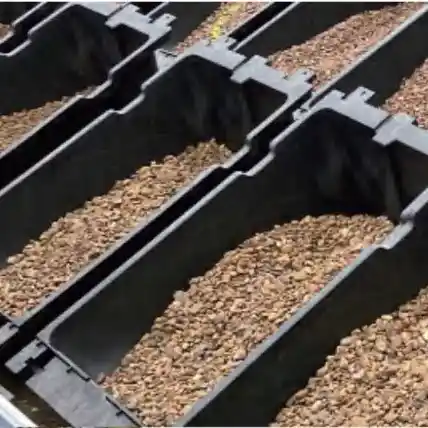

1.Easy Installation: Since it secures the mount by placing heavy objects like gravel, sand, or dirt inside, installation is quick and easy without drilling.

2.Easy Maintenance: Because this Plastic Ballasted UV Resistant Bracket doesn't damage the original roof structure, it reduces the risk of leaks and corrosion, minimizing environmental impact.

3.Economical: The mounts used in this system are made of HPED (High-Performance Integrated Components), which is economical, recyclable, and reusable, reducing initial and long-term costs for solar projects.

4.High Adaptability: The Plastic Solar Bracket HDPE Ballast can hold gravel, sand, dirt, etc., requiring minimal installation tools, environment, and materials. It can be placed on any flat surface, such as roof or ground, offering high adaptability.

Specifications

Brand：Egret Solar

Material: HDPE

Installation Site: Flat Roof&Garden

Ballast Material: Gravel, Sand, Dirt

Ambient temperature range: 40°C to +60°C

Applicable solar module width range: 980mm-1140mm

Module tilt angle: 15°

System orientation: East-West, South-facing

Weight: ≈4.5kg

Dimensions: 1150*525*458mm

Wind Load: 0.49kn/㎡

Snow Load: 1.6kn/㎡

Product Origin : China

Shipping Port : Xiamen

Delivery cycle: 10-15 days

Installation Instructions

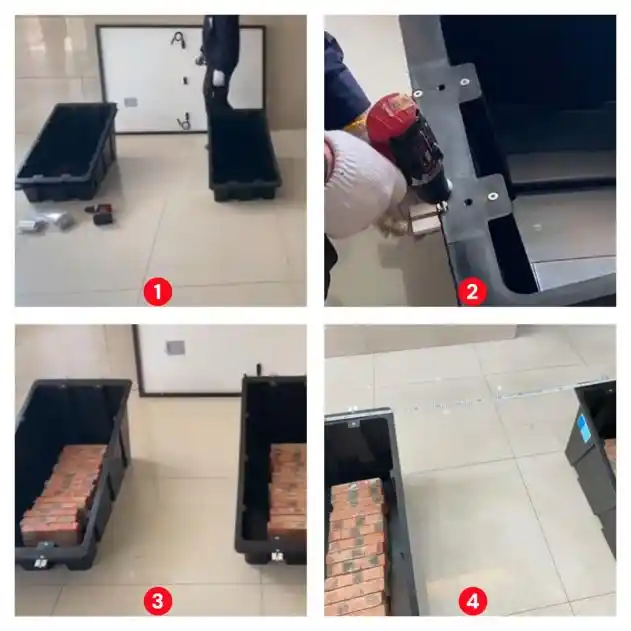

1. Find a flat surface or rooftop. Take out the Solar Bracket HDPE Ballast Mounting Bracket and arrange it at regular intervals.

2. Next, take out two Mini Rails and secure them to the bottom of the bracket using four M6*25mm self-tapping screws. Repeat the above steps to secure the rail at the top of the bracket.

3. Place bricks, pebbles, or other filler materials inside the bracket, ensuring a weight of at least 70kg.

4. Adjust the bracket's placement according to the length of the solar panel.

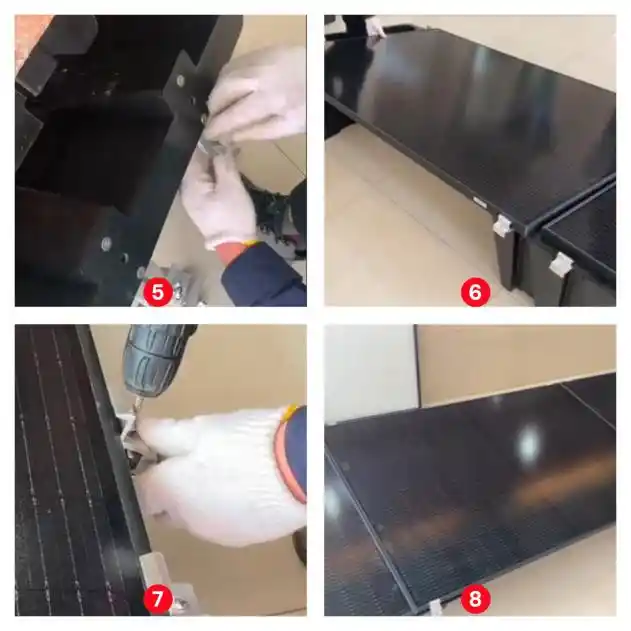

5. Place the End Clamp on the Mini Rails, but do not secure it yet.

6. Place the solar panel on the bracket (the solar panel dimensions shown in the diagram are 1708*1134*30mm).

7.  After confirming the solar panel's position, tighten the End Clamp bolts to secure it to the solar panel.

8. This completes the installation of the entire HDPE Plastic Solar Ballast Roof Mounting System.

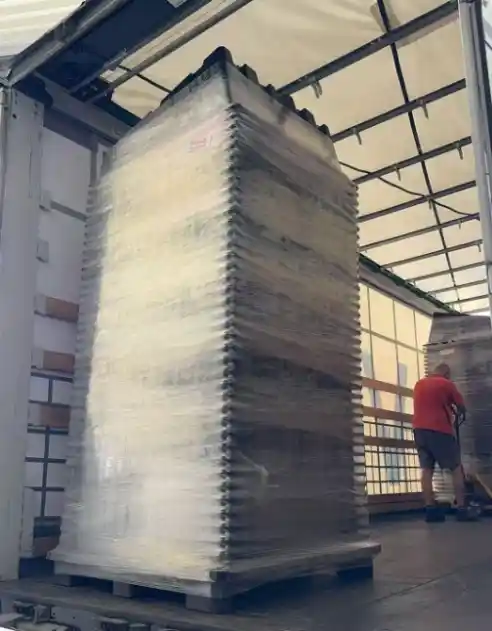

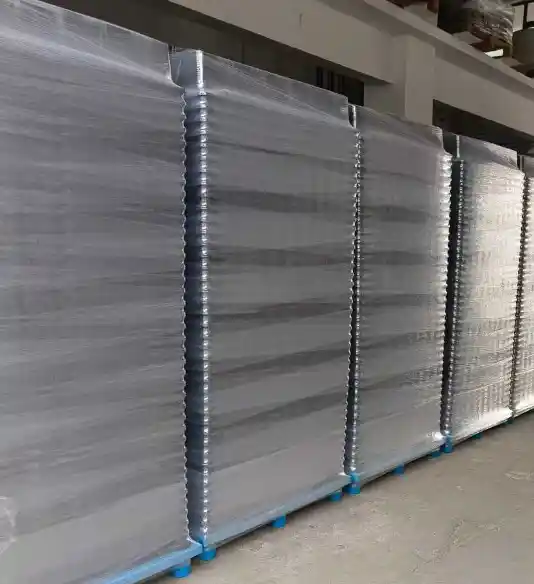

Packaging Diagram

660 pieces/20ft container, Pallet Dimensions: 1200*1050*2250mm

1640 pieces/40ft container, Pallet Dimensions: 1200*1050*2550mm
