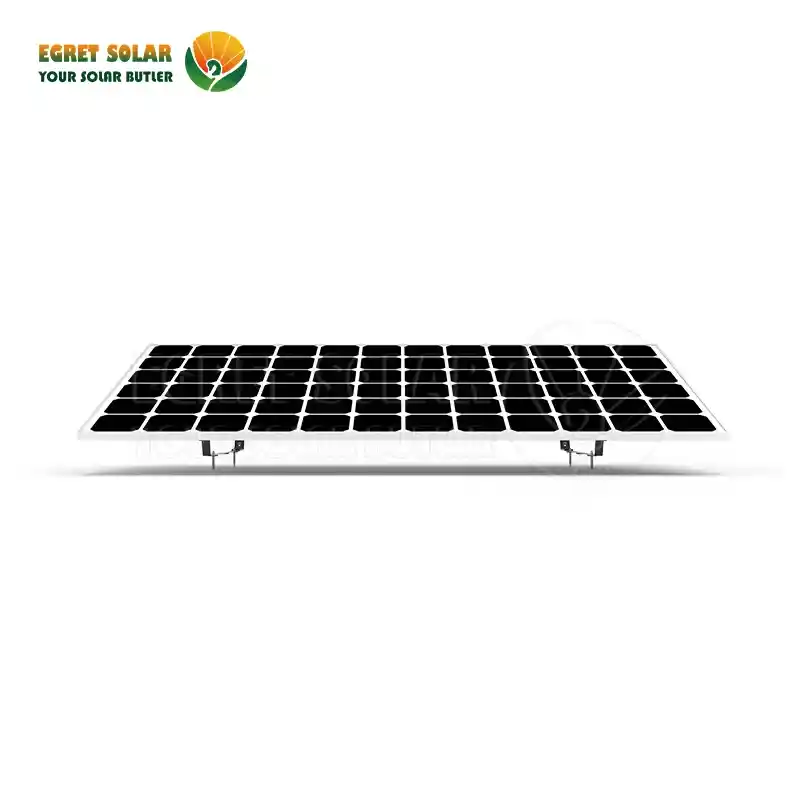

Solar Flat Roof Mounting Ballast System

Egret Solar is a solar mounting bracket supplier with its own factory, a reliable Chinese supplier, and is now launching a customized Solar Flat Roof Mounting Ballast System that supports custom tilt angles. This solar installation system was originally designed for installation on flat roofs. Still, it can also be installed on open ground. The expansion bolts used for installation on the roof surface do not penetrate the roof's waterproofing layer, meeting the installation requirements of the solar PV module.

The ballast system features Q235 carbon steel that offers excellent value for money and is more cost-effective than traditional aluminum ballast systems. It can be finished with black paint, hot-dip galvanizing, or both. As a flexible ballasted system, it is suitable for most flat roof types, including concrete or fiber cement, making it suitable for industrial and rural self-built homes.

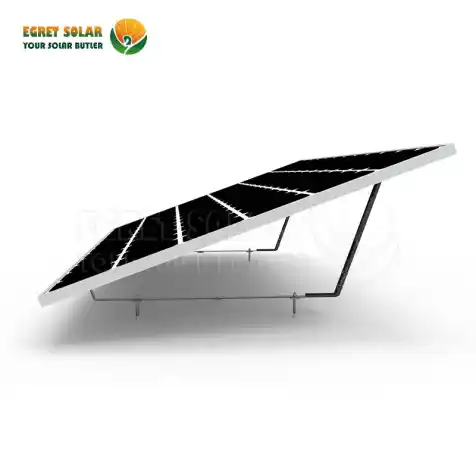

This Ballasted Flat Roof Mounting System requires only on-site assembly of the carbon steel brackets and bolts, eliminating the need for welding. It significantly reduces labor costs and shortens installation time by approximately 33.33%. Furthermore, it allows for flexible module layouts because it is compatible with monocrystalline and polycrystalline photovoltaic modules, among others.

PRODUCT SHOW

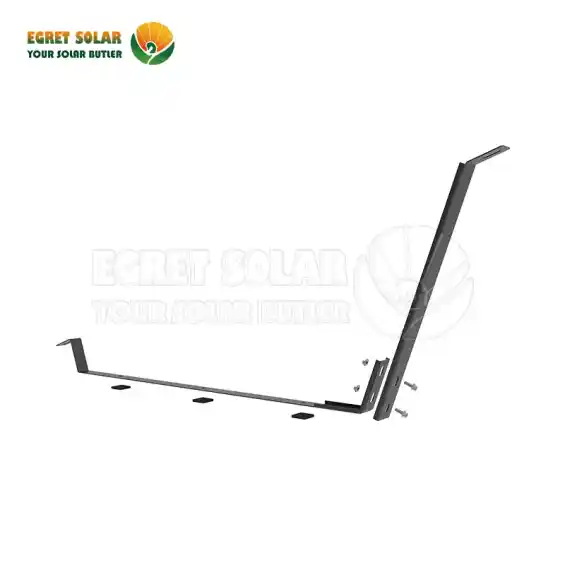

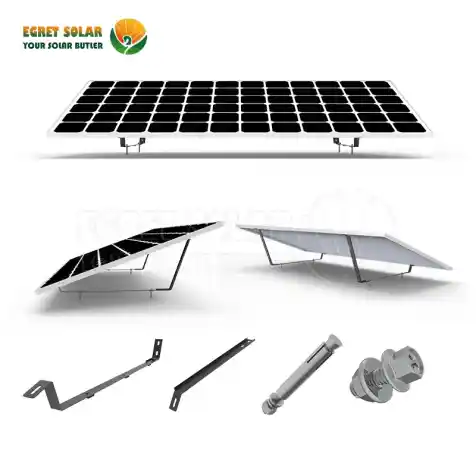

The Flat Rooftop Mounting Ballast System consists of core components such as carbon steel brackets, expansion bolts, and bolt kits, offering both an affordable price and high efficiency.

Since it is a ballast solar PV mounting system, it requires counterweights. You can flexibly configure the concrete counterweights according to the local maximum wind speed and snow depth. This ensures optimal wind and snow load resistance. Our brackets have been tested and possess nice bending and torsional resistance, since you don't need to worry about they can't to support the solar PV modules.

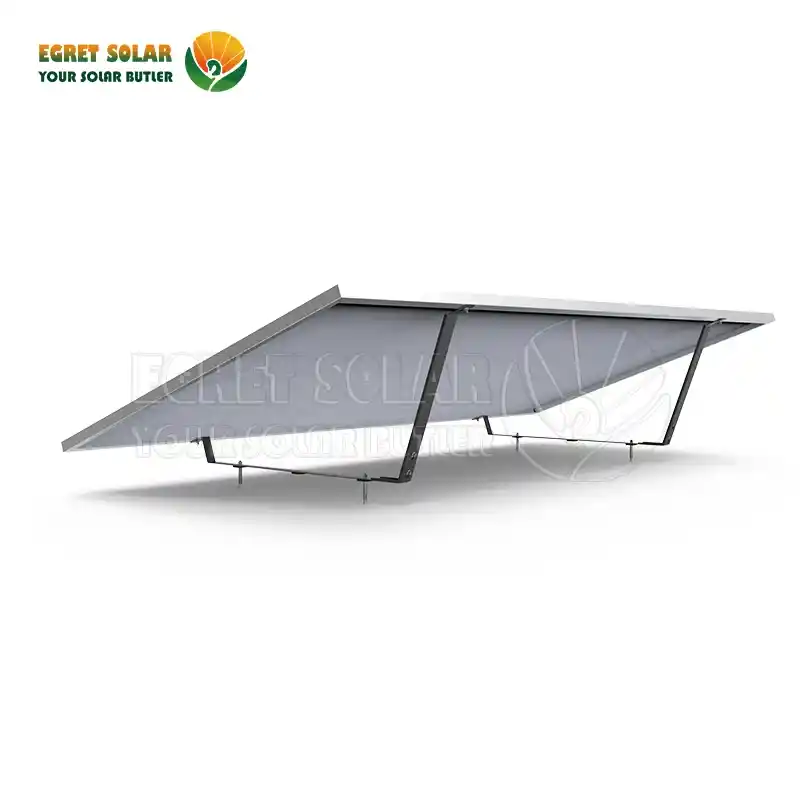

The Ballast Solar Flat Roof Installation System features rear legs offering a fixed tilt angle of 5°to 20°, with custom angles available to allow installers to optimize the angle based on the project’s latitude and maximize solar radiation absorption. It is compatible with 30mm to 50mm thick PV modules. Installation is also simple, which just need secure the bracket to the roof with expansion bolts, then tighten the module with the bolt kit. Installation of a single module can be completed in as little as 10 minutes.

Furthermore, as a flexible solar photovoltaic installation ballast system, it supports both horizontal and vertical splicing. Installation does not require damage to the existing roof waterproofing layer, and the components are easy to disassemble, facilitating later maintenance and reducing operating costs.

ADVANTAGES

1. Carbon steel, black paint, hot-dip galvanization, 25-year lifespan, corrosion-resistant.

2. No roof damage, compatible with all flat roof types, like concrete or fiber cement

3. Quick bolt assembly system increases mounting speed by 33.33%, reducing labor costs.

4. meets regional wind/snow load standards, safe in extreme weather.

5. fixed tilt angle of 5°to 20°, customized tilt angle, optimizes solar absorption, boosts power generation efficiency.

FAQ

Q1: What types of roofs does the solar ballast system support?

A: It is suitable for common flat roof types, including concrete and fiber cement, making it ideal for industrial and rural self-built homes.

Q2: Can this Solar PV Mounting Ballast System have an adjustable tilt angle?

A: We currently offer fixed tilt angles in the range of 5-20°. If this doesn't meet your requirements, you can also choose a customized tilt angle.

Q3: How are the counterweights configured in this mounting system?

A: You can flexibly configure the concrete counterweights according to the local maximum wind speed and snow depth.

Q4: Does this solar ballast system have a warranty? How long can it be used?

A: Yes, we offer a twelve-year warranty, and the system has a lifespan of up to 25 years.

Q5: Will it damage the roof's waterproofing layer?

A: No, the expansion bolts used for installation on the roof surface do not penetrate the roof's waterproofing layer.

Q6: Is there a solar ballast system made of aluminum alloy?

A: Yes, we also have a rapid ballast system and an aluminum tripod ballast system can chose.
