Adjustable Trapezoidal Clamp for Solar Panel Mount

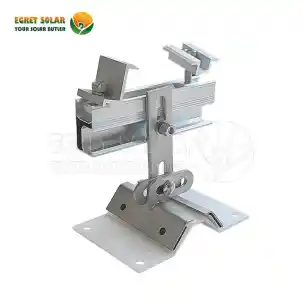

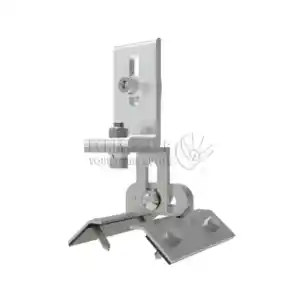

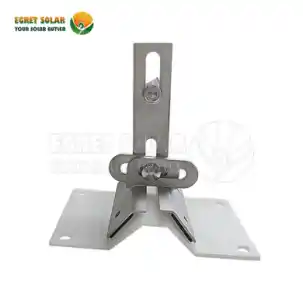

Adjustable Trapezoidal Clamp for Solar Panel Mount is an upgraded solar mounting accessory developed and produced by Xiamen Egret Solar New Energy Technology Co., Ltd. It is specially designed for installing solar panels on trapezoidal color steel roofs and tin roofs. Based on the original trapezoidal clamp, we have optimized the structure to remove L‑feet components, so you only need the clamp to complete stable installation without extra parts, while maintaining the same installation effect and reducing your total cost. This clamp can be assembled with the mid clamp, end clamp, rail, and rail connectors to complete a roof mounting system.

Product Specification

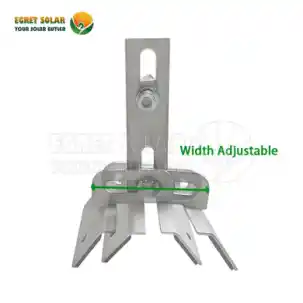

Made of high‑strength stainless steel with sandblasted surface treatment, this clamp provides excellent corrosion resistance, high bearing capacity, and long service life matching solar panels. It comes with a built in EPDM waterproof pad to prevent roof leakage after installation. The Adjustable Trapezoidal Clamp supports width adjustment to fit most trapezoidal roof profiles without measuring cross‑section data in advance, greatly improving universality and construction efficiency.

Comparison with Other Fixtures

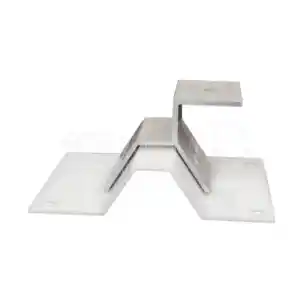

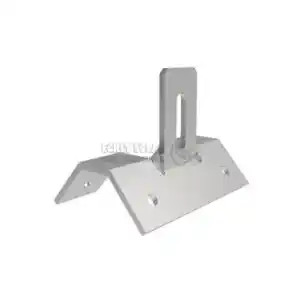

Compared to other adjustable clamp, this PV module roof clamp reduces the use of L-feet, making it an optimized version that better reduces costs and installation time while maintaining the same installation effect as older models. We have several trapezoidal clamps with fixed angles, such as Egret CL05 roof clamp and Egret CL04 roof clamp, but these are not adjustable. You need to confirm whether they match your roof tile type.

Product Advantage

1. This stainless steel solar clamp is widely applicable with width adjustable design, fit most trapezoidal roof profiles.

2. It can connects directly with mounting rails without L-feet, which lowers costs and speeds up installation time while keeping the same performance with old style adjustable clamps .

3. Made of stainless steel, sandblasted surface treatment. It has a high load capacity, so that a long service life, matching solar modules’ service life, almost no maintenance.

4. Each roof clamp equipped with EPDM waterproof pads, which can avoid roof leakage.

5. All products are inspected strictly before delivery, which can ensure a low defect rate.

6. Factory wholesale prices, and professional after-sales support, give you a reliable purchasing experience.

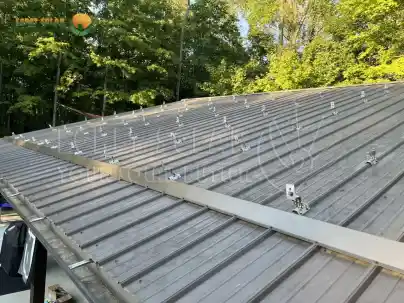

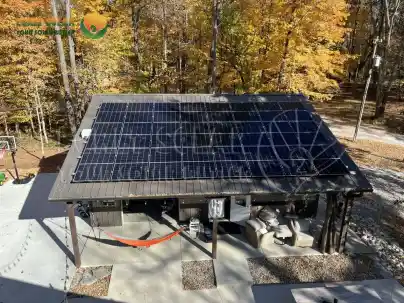

Installation Case

This trapezoidal roof solar mount clamp has been used in many real trapezoidal roof solar projects. It fits different roof sizes easily, makes installation much faster, and no leaking or loose issues after long-term use. Installers and EPC companies all praise its easy use and great stability.

Factory

We have our own production lines and trained staff, so we can offer you high-quality solar module mounting accessories at factory prices. We don't just produce and sell tin roof solar clamp, also offer you a full range of solar module mounting solutions. Such as roof mounting system, ground installation, carport, and home balcony systems. We accept wholesale orders, and customize products to meet your demands. With quick lead times and steady supply, we can keep your project on schedule.
