Solar Standing Seam Roof Clamp

Our solar standing seam roof clamp works very well with the Egret Solar metal roof mounting system. This clamp is made to hold solar panels firmly on metal roofs with a standing seam. It does not need to go through the roof surface. They offer a simple, leak-proof solution while maintaining the integrity of the roof. Please contact us if you need free samples to test first.

Specifications

Brand：Egret Solar

Material: AL6005-T5

Length: 50mm

Color: Natural

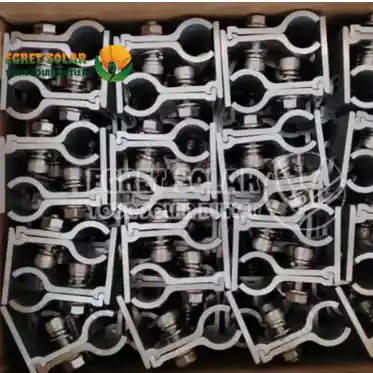

Packing: Box

Wind Load: 0.49kn/㎡

Snow Load: 1.6 kn/㎡

Product Origin : China

Shipping Port : Xiamen

Delivery cycle: 10-15 days

Product Highlights

1) Metal roof solar standing seam roof clamp features a truly non-penetrating connection, allowing direct clamping onto vertical roof panels, eliminating the roof leakage and warranty issues associated with drilling solutions.

2) It incorporates integrated corrosion protection; EPDM rubber is used between the roof clamp and the roof to prevent corrosion between the aluminum roof clamp and the steel roof panel.

3) This roof clamp uses two sets of stainless steel allen bolts and nuts to ensure vibration-resistant and reliable clamping force at the joint.

4)In addition to selling the roof clamp separately, we also sell it as a complete solar roof mounting system, including solar L feet, rails, and solar panel clamps.

5)Through optimized design, solar bracket standing seam roof clamp is manufactured using AL6005-T5, featuring a compact shape, a standard cut length of 50 mm, and broad compatibility. (Other sizes are available, or we accept custom orders.)

Applications

Solar Aluminum standing seam roof clamp are primarily used in metal roof installation systems. It offers flexible installation options and securely attaches to the standing seam of the metal roof without drilling or penetration, thus ensuring the roof's waterproofing and structural integrity.The following demonstrates two flexible installation methods:

Option 1: As shown in the diagram, this roof clamp can be used with rails, L feet, mid clamps, and end clamps to form a complete metal roof mounting system.

Option 2: Thanks to the horizontal elongated hole structure in its top design, this clamp can also be used with other rails that require bottom mounting, such as 40*40mm rails. By combining the rapid mid clamp, rapid end clamp, and rail connectors, a complete solar roof mounting system can be assembled.

Installation Instructions

Compared to other clamps that go through the roof, this clamp is easy and fast to install. It also does not hurt the roof. This makes solar installation safer.

1) Place the solar non penetrating roof clamp on the standing seam.

2) Tighten the screws or bolts. Keep tightening until the clamp is locked tight in the joint.

3) Fix the rail to the roof clamp. Use bolts and nuts. You can also add L-feet. This makes the solar panel sit higher above the roof.

4) Place the solar panel onto the rail. Secure it with panel clamp. Then you can complete the entire installation of the solar clamp for metal roof mounting system

Related Inquiries

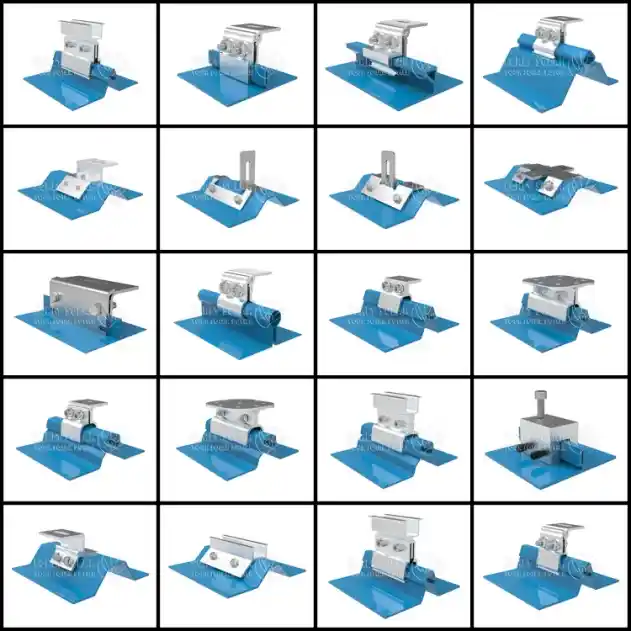

Egret Solar also has roof clamps for many roof types. You can find one that fits your needs. If you are not sure which clamp works for your roof, send us this information. Our engineers can suggest the right one for you:

1)Roof cross-section data

2)Wind and snow load at your location

3)Number of solar panels you want to install (we can help you figure out how many you need)

We're happy to provide any assistance, so please feel free to contact us anytime if you require it!
