Solar Panels Mount Roof Clamp

Egret Solar is a specialized provider of PV mounting solutions, the Solar Panels Mount Roof Clamp introduced here is available for bulk orders and other large procurement needs. The roof clamp is specifically designed to accommodate trapezoidal corrugated steel roofing and utilizes a non-drill, which mounts directly onto the crests of the metal panels. For PV projects operating under budget constraints, selecting this roof clamp minimizes unused roof margins, thereby maximizing the installed capacity of the roof area. Constructed from high-strength stainless steel with a sandblasted surface finish and paired with an EPDM waterproof rubber pad.

Key Product Highlights

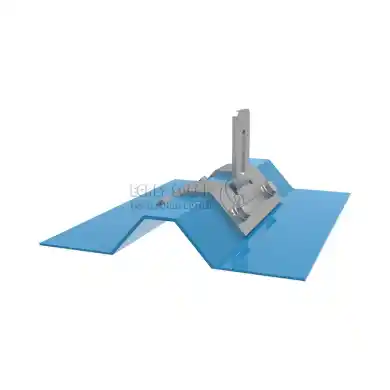

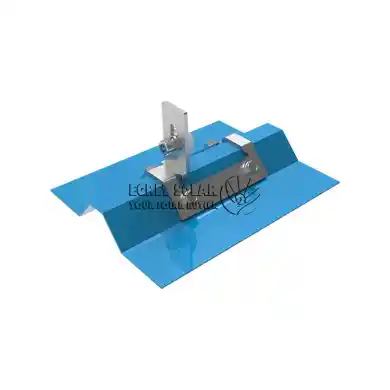

The primary function of the Corrugated Steel Roof Solar Clamp is to securely fasten PV modules to the crests of colored steel roofing profiles. No pre-drilling is required, you can simply use electric screwdriver to drive self-tapping screws directly into the clamp for fixation. Our solar mounting clamps are equipped with EPDM,which  ensure the roof's waterproofing layer remains intact. The roof clamp is designed for horizontal module layout, if you require vertical module layout, Egret Solar also offers solar mounting roof clamp for that purpose. Compatible with trapezoidal colored steel roofing, this clamp serves as a critical component for commercial and industrial PV power stations.

Product Materials and Specifications

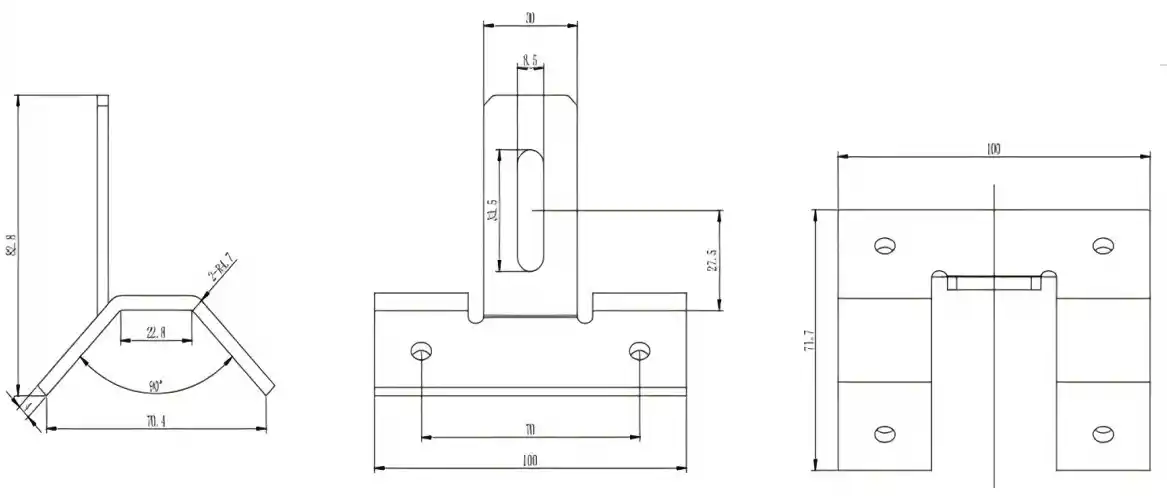

Our solar mounting clamp is produced from stainless steel, and with sandblasted surface finish. That offering excellently strength and corrosion resistance. It with an EPDM rubber pads that conforms tightly to the surface of the roof tile, ensures a watertight seal for the roof tile. Our Standard Rooftop PV Clamps measures 100mm in length, the image below with specific dimensions detailed. We can also customize the dimensions to suit the specific tile profile of your roof.

Modular Assembly System

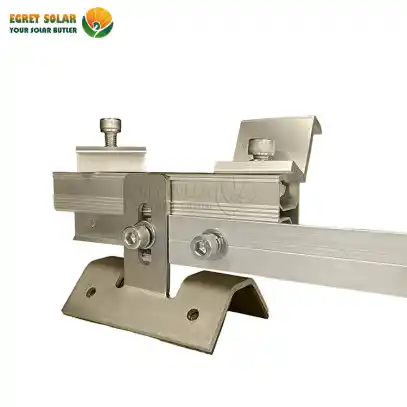

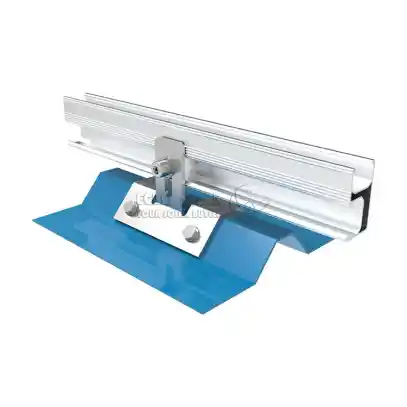

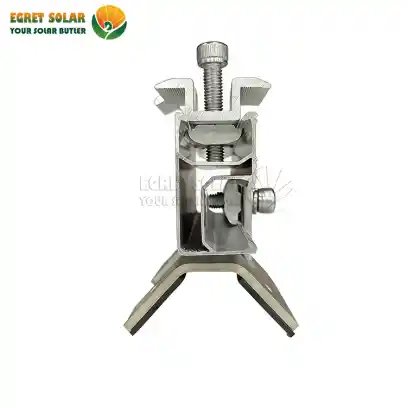

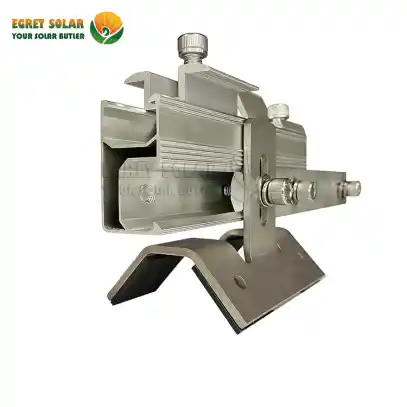

For solar trapezoidal roof clamp features a modular assembly design, allowing it consist of Egret Solar 47 mm rail, rail connector, and other accessories to form a complete solar metal roof mounting system. The Trapezoidal Corrugated Steel Roof Clamp secures to the 47 mm rail via M8 bolt and slide nut, while mid clamp and end clamp are positioned on the rail to firmly fasten the solar modules. We will calculate the height of the end clamps and the length of the bolts to suit the dimensions of your PV modules.

Key Installation Points

Based on your lateral layout plan for the PV modules, position the No-Drill Solar Roof Clamps against the crests of the colored steel roofing sheets. The next step is simply use an electric screwdriver to tighten the screws, the installation for the roof clamp takes just two minutes. After that, slide the nut into the rail and tighten the M8 bolts. Place your modules onto the rails, then use the mid clamps and end clamps to secure them in place. Finally, ensure that there is no looseness to complete the installation.

Packing

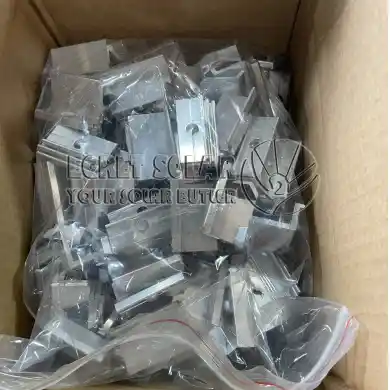

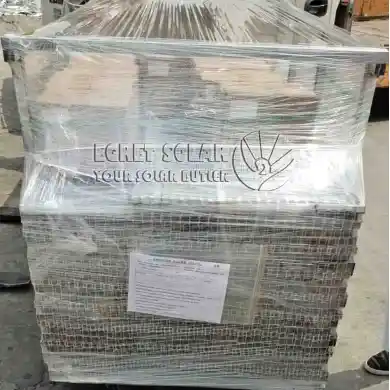

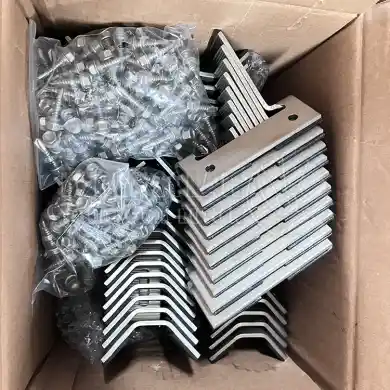

The standard carton dimensions for the Metal Roofs PV Clamps are 540 x 220 x 220 mm. The standard configuration contains 60 sets per carton, and the screws are individually bagged to prevent loss, as well as to protect against scratches and moisture during transit.

FAQ

Q1: Which types of colored steel roofing sheets are compatible with the roof clamp?

A:  It is compatible with mainstream trapezoidal colored steel roofing sheets. For sheets with special specifications, we can provide customized clamps.

Q2: Does the roof clamp's mounting method compromise the waterproofing of the colored steel roof?

A:  No, it does not. The EPDM waterproofing gasket fits tightly against the roof surface, effectively eliminating the risk of water leakage caused by roof penetrations.

Q3: Can you do OEM/private labeling for big orders?

A:  Yes, we can do OEM for bulk orders. We can change things like product labels, colors, and other details.

Q4: Do I need a pro to put this clamp in? Do you have instructions for how to do it?

A:  You don't need a pro to put it in. We can help you put it in by giving you videos or remote technical help.
