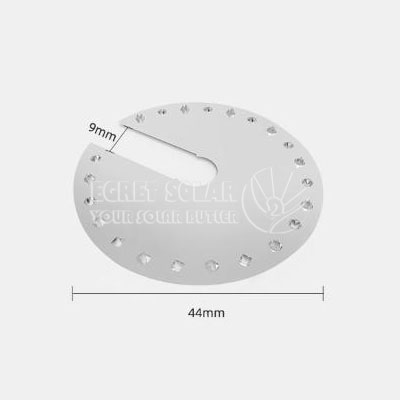

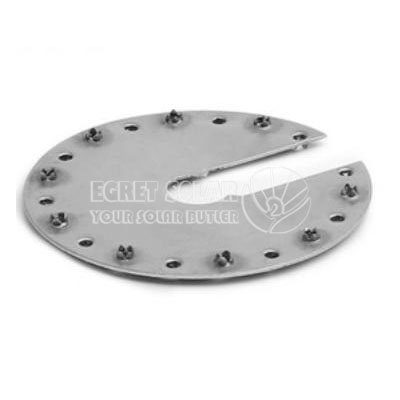

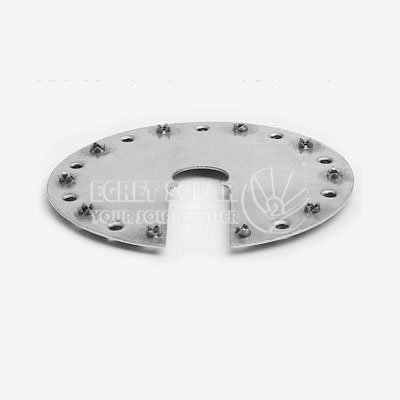

SUS304 circular conductive sheet has various designs, inserted between the module frame and mounting bracket, piercing the anodized coating weld. The result is excellent conductivity without oxidation, which makes the panel and track a single metal, forming a circuit on the ground. You can rest assured to purchase Egret Solar's circular conductive sheets. We provide high-quality products with timely delivery, which has won the trust of many customers from both domestic and foreign countries.
Brand: Egret Solar
Product Origin: Fuiian, China
Material:Aluminium
Warranty:12years
Duration:25years
Shipping Port: Xiamen Port
Lead Time: 7-15 days
Max Wind Speed: 60m/s
Max Snow Load: 1.4kn/m
Our photovoltaic circular conductive sheet is one of the necessary accessories as the power connection for the entire solar energy system. The circular conductive sheet is used together with the middle edge pressure and installed at the edge of the photovoltaic panel. Good corrosion resistance results in a very long service life for the conductive sheet. This photovoltaic circular conductive sheet is placed between the photovoltaic panel and the aluminum track, and can be installed using a simple and fast method, which can reduce the labor cost of installation and save installation time. Once the circular conductive sheet is installed on the guide rail, the teeth on the conductive sheet can puncture the oxide film on the surface of the guide rail, ensuring the smooth flow of current. In this case, the current generated by the photovoltaic panel can flow to the track and then be conducted to the ground. As a conductive connector, ensuring quality is very important.
Functional features:
1. Good corrosion resistance;
2. The teeth of the conductive sheet can puncture the oxide film on the surface of the track;
3. Used together with the central pressure, placed on the track, suitable for solar installation systems such as roofs, floors, and carports.
Our photovoltaic stainless steel conductive sheets are designed for various solar installation systems. In addition to circular conductive sheet, we also offer other options for you to choose from. Our products are characterized by high quality, good stability, and high cost-effectiveness. I hope our product can satisfy you. If you have any special requirements, please contact us promptly. We will provide you with the most suitable solution.
1.The role and characteristics of photovoltaic bracket conductive sheets
Photovoltaic bracket conductive sheet is a bridge connecting solar panels and the ground. They support the solar panels underneath and transmit current from the panels to the ground. The role of photovoltaic bracket conductive sheets is not only to support and conduct electricity, but also to improve the service life of solar panels and reduce maintenance costs. In addition, they also have good thermal expansion coefficient and anti-aging performance, and can adapt to changes in ambient temperature and long-term use. Circular conductive sheets are suitable for some special scenarios due to their different shapes.
2.The development trend of conductive sheets for photovoltaic brackets
With the continuous development of the solar energy industry, the conductive sheets of photovoltaic brackets are also constantly improving and perfecting. In the future, photovoltaic bracket conductive sheets will pay more attention to environmental protection, efficiency, reliability, and safety. For example, developing new environmentally friendly materials to reduce environmental pollution during the production process; Optimize structural design to improve the stability and power generation efficiency of the bracket; Adopting new materials and manufacturing processes to improve the service life and safety of products. The widespread use of circular conductive sheets is the beginning of innovation.
In short, as a key component in photovoltaic power generation systems, photovoltaic support conductive sheets play an important role in improving photovoltaic power generation efficiency, reducing costs, and minimizing environmental pollution. In the future, with the continuous advancement and improvement of technology, photovoltaic bracket conductive sheets will pay more attention to environmental protection, efficiency, reliability, and safety, making greater contributions to promoting the global green energy revolution.
1: Are you a factory or the only company?
We have factories that produce solar cells and energy storage systems, and are also a source of solar energy components.
2: Why can we choose you?
We have been engaged in photovoltaic system products for 5 years.And we are committed to providing you with reliable products and high-quality services.
3: How about the shipping cost?
If the goods are not large, we can send them by express delivery (FEDEX, DHL, EMS, TNT, etc.). If our cargo volume is large, we will send it to you by sea or air freight. We can quote FOB, CIF, and CNF according to your preferences. Then you can choose our freight forwarder or your freight forwarder.
4: How about the price? Can I have it in a cheaper price?
We will provide you with the most favorable quotation based on the purchase order you require.
