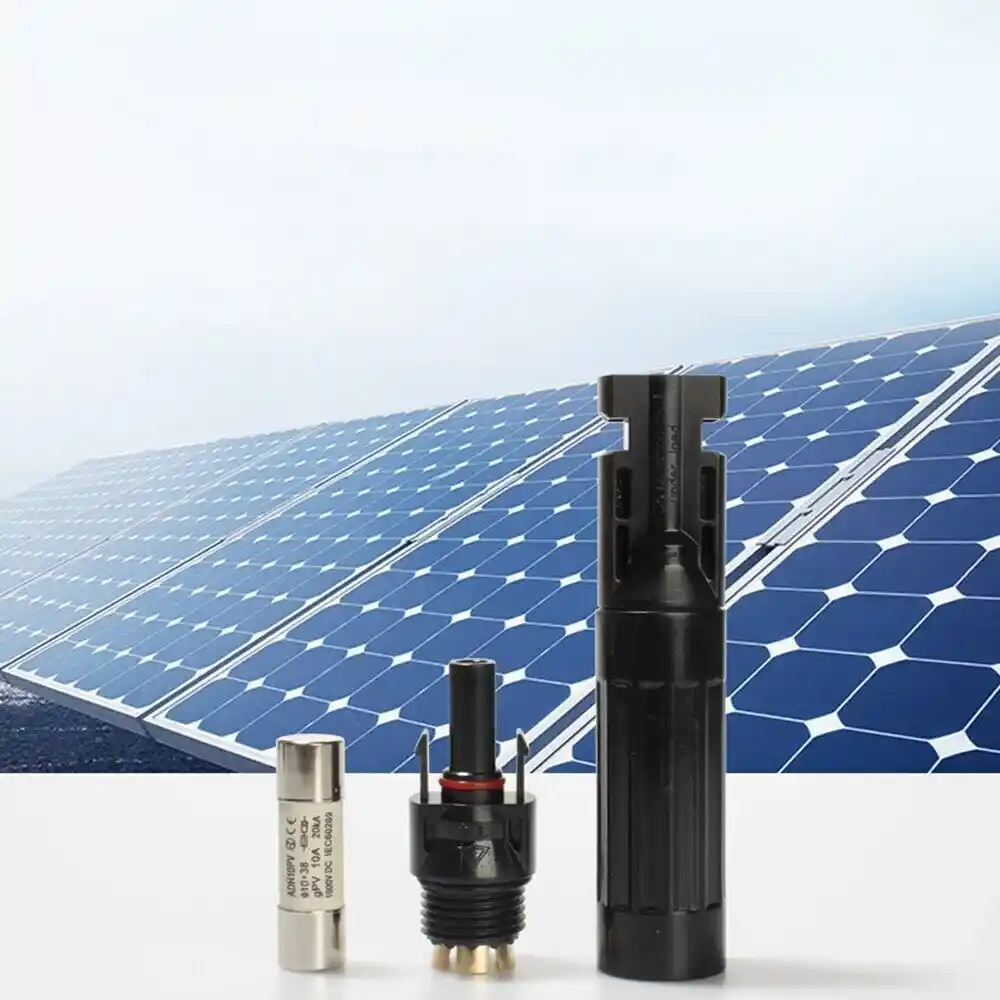

Solar Photovoltaic Fuse Connector

To provide precise and reliable over-current protection ,Xiamen Egret Solar New Energy Technology Co.,Ltd designs high quality Solar Photovoltaic Fuse Connector,which offers a space-saving, plug-and-play, high safety solution for photovoltaic systems.It can prevent thermal spot effects and fire risks caused by current surges or short circuits.By integrating the protection function into the cable connection directly,it eliminates the need for traditional external fuse boxes.

Send Inquiry

Product Description

Manufactured by Egret Solar,Solar Photovoltaic Fuse Connector provides complete single circuit protection to your solar power array.It is widely used in photovoltaic systems,which can prevent large currents from damaging your solar panels.In distributed roof mounting system, it can be installed behind the modules or on the mounting bracket directly, effectively utilizing limited space and protecting the DC-side lines. When multiple strings are connected in parallel to the inverter, each string is equipped with this Solar Male & Female Connector to prevent current back-flow caused by a fault in one string.It can ensure the stable output of the entire array. Furthermore, its high IP68 waterproof rating is a key factor in floating power plants or high-humidity environments,to ensure the long-term insulation performance of the system.

Solar Photovoltaic Fuse Connector Solar In-line Fuse Holder Solar Surge Protection Device Waterproof Solar Fuse Connector

Main Components

MC4 Connectors with Fuse Link is made of the following components

1.Female Insulated Connector Housing

2.Fuse Housing

3.Male Insulated Connector Housing

4.Locking Slot - Unlock Area (press to release)

5.Locking Tab

6.Fuse

Advantages

Easy Installation, Reduce BOS Costs.

If added fuses in traditional photovoltaic systems,normally it requires additional waterproof fuse boxes. It will increase material costs and consume valuable installation space. Adopting pre-pressed cables or a plug-and-play design, it allows installers to quickly connect Waterproof Solar Fuse Connector to the system without additional tools. This highly integrated design simplifies system wiring (BOS).And it is particularly suitable for space-constrained scenarios,such as module-level fast shutdown and optimizer systems.

Precise Protection, Enhanced System Safety.

Solar Surge Protection Device moves the protection point forward to each string of modules. Upon detecting a reverse over-current caused by a fault, the fuse quickly melts, cutting off the faulty circuit. This effectively prevents solar cables from overheating and causing insulation aging or fire.It can also protect connected inverters and combiner boxes, minimizing fault damage. This "one-to-one" protection mechanism is crucial for systems using multiple strings in parallel.

High Compatibility and Long Lifespan

Thanks to standardized interfaces, these Solar In-line Fuse Holders are compatible with all solar connectors MC4 on the market. In terms of material selection, high-quality tin-plated copper terminals and UV-resistant housing materials ensure stable operation within an extreme temperature range of -40℃ to +90℃, with a design life of up to 25 years, highly matching the lifespan of photovoltaic power plants.
