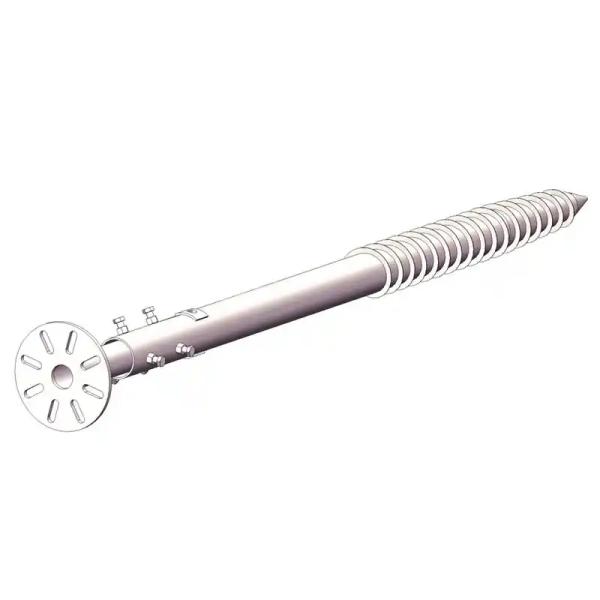

Solar Adjustable Ground Screw

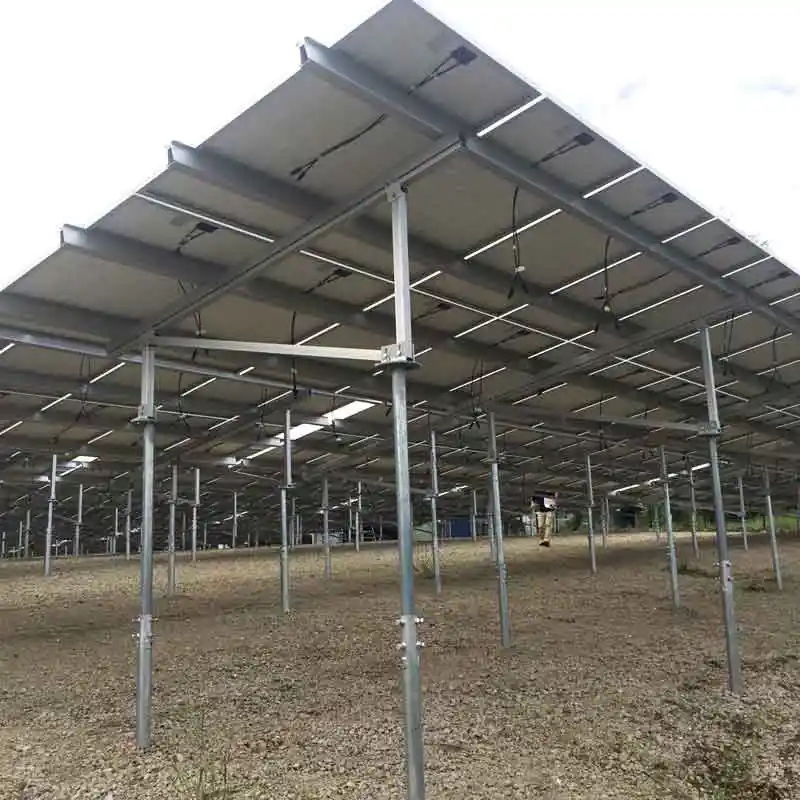

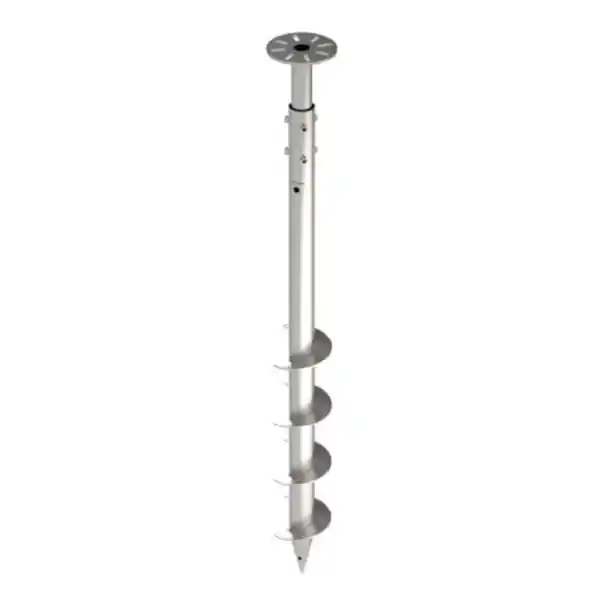

Solar Adjustable Ground Screw, also known as Helical Ground Screw with Adjustable Flange,are a new type of irregular pile foundation,designed by Egret Solar.It consists of three main parts.They are tube body, helical blades, and connecting adjustable flanges respectively .While the helical blades are welded and wound around its surface.After welding, the entire structure undergoes hot-dip galvanizing to prevent corrosion.They are particularly suitable for installation on uneven terrain, such as mountainous areas.And it can also be used to adjust for installation errors. The design of the helical blades allows them to form a tight interlock with the surrounding soil, after being screwed into the ground. Utilizing the lateral friction between the Adjustable Ground Screw Pile and the soil, as well as the interlocking force between the blades and the soil, they resist pull-out forces and withstand vertical and horizontal loads, thus ensuring the long-term stability of the foundation.They are widely used in solar power station foundation, solar farm fence pile foundations, agricultural greenhouses, and temporary facility foundations.

Production Process

The main raw material of Ground Screw Anchor With Set Screws is Q235 welded pipe.

It has major steps of as following.

1.The Q235 welded pipe is fed into the cutting equipment,according to the length required by customers .

2.Deformation on Tail-sharpening & pipe forming .

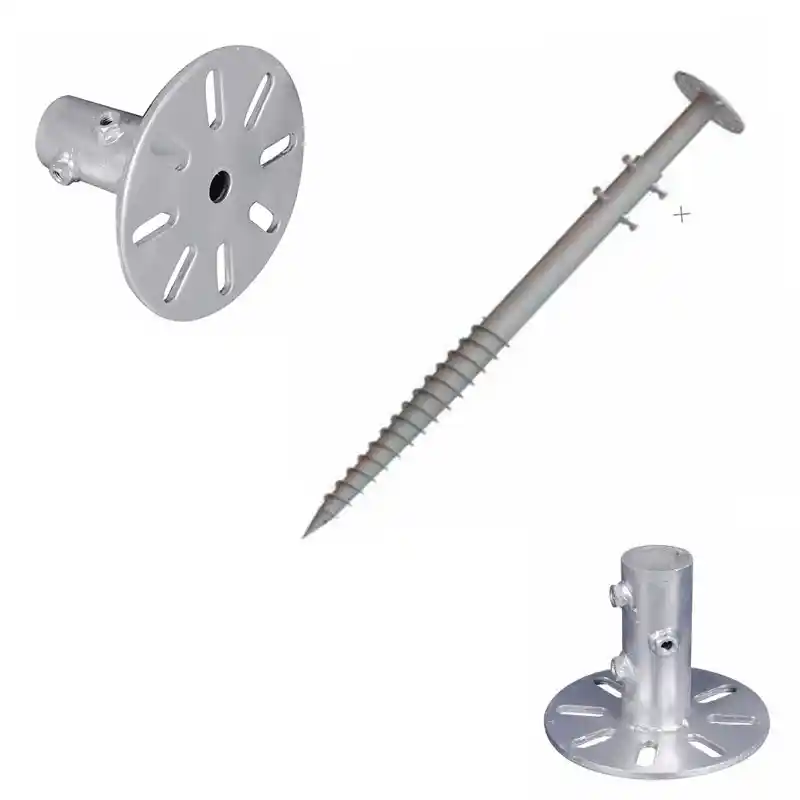

3.Welding on blades & flange .The main function of flange is to connect the solar ground mounting system .

4.Hot-dip galvanizing for corrosion protection.The Hot-dip galvanizing time and the thickness of zinc coating ,will decide its service life .

How to Pack

To protect Adjustable Solar Mounting Ground Screw Pole during storage and transportation ,it adopt industrial-grade multi-layer protective packaging solution.That’s packed them into iron pallet ,then tightly wrapped with heat-shrink film.The iron pallet packaging supports forklift loading and unloading.It facilitate warehouse management and on-site handling.

How to install

Before install Solar Mounting Adjustable Ground Screw Foundation ,it need do some Pre-installation preparations.Firstly ,get the geological report ,and decide to whether use special drill bits or pre-treatment . For example, pre-drilling may be required in hard soil areas.Secondly, choose the right ground screw,according to the solar mounting system ’s snow & wind load.Thirdly,select a suitable hydraulic pile driver ,based on the pile length and geological conditions. .

After did the above pre-installation preparations ,you can follow the below steps to install .

Step 1.According to the overall construction plan, please kindly conduct surveying and layout using instruments.

Step 2.Determine the location of each pile to be driven and mark it with easily visible objects ,such as small flags and wooden strips.

Step 3.Install the ground screw by pile driver.

Advantages

1.Highly adaptable to various terrains

Designed for uneven terrain, it doesn’t require site leveling or excavation. Grounding screw can be installed directly on the original landform. They are particularly suitable for complex geological conditions such as mountains, hills, Gobi deserts, stony soils, deserts, grasslands, and permafrost.

2.Fast Installation

Solar Adjustable Ground Screw are installed by specialized piling equipment.It takes about 0.5-3 minutes to install .It possess load-bearing capacity immediately,no need concrete curing time.Compared to traditional concrete foundations, the overall construction cycle is shortened by more than 70%.And save labor costs.

3.High cost-effectiveness

No need for excavation, cement pouring, or formwork support.It save material and labor costs by approximately 20% to 30% .

4.Green and environmentally friendly

It doesn’t require water resources and won’t generate construction waste
