Solar Carbon Steel Base

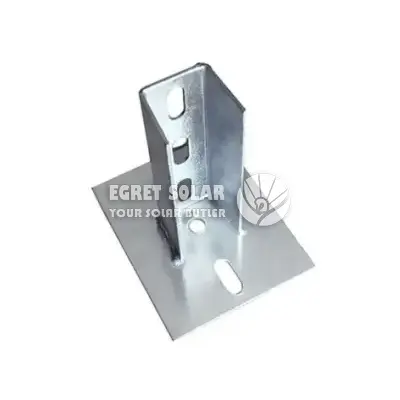

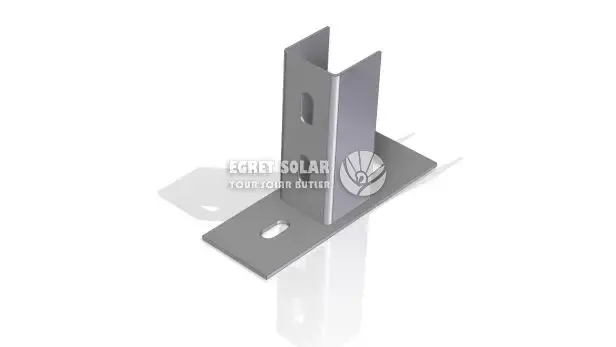

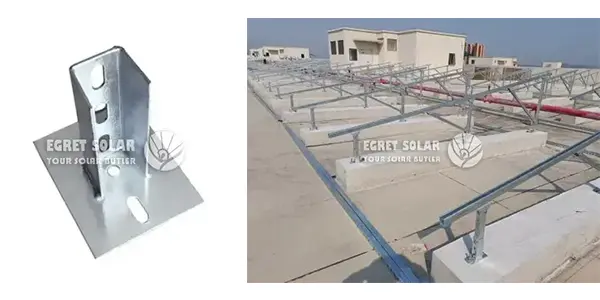

In areas with strong winds, the cross-section of the U-shaped steel in carbon steel supports is relatively narrow and long, often resulting in significant unilateral stress. It is therefore necessary to extend the base to reinforce the single side. The C-section steel base for Egret Solar products is formed by welding two metal sheets., and the wind and snow resistance capacity of the column base can be enhanced by thickening the wall thickness or lengthening the designed outer tube.

Features

1.Enhances the stability and seismic resistance of the PV supporting bracket, and prolongs its service life.

2.Both the outer tube and the base adopt a multi-hole design, allowing the bracket to be adjusted at a small angle to adapt to uneven ground. It can be fixed on concrete piers in cooperation with expansion bolts, or on ground piles with ordinary bolts.

3.Made of Q235B steel, it has excellent bending strength and corrosion resistance.

4.Solar grounding mounting base can be interlocked during packaging, which reduces packaging space and facilitates transportation.

Specifications:

Base thickness:4~ 6mm

Material: Q235

Installation Site: Ground/Roof

Color: Natural

Wind Load：60m/s

Snow Load：1.6KN/㎡

This solar base is a reinforced version of the standard base, designed specifically to withstand heavy wind and snow conditions. It has a service life of up to 20 years in a C3 corrosion environment.

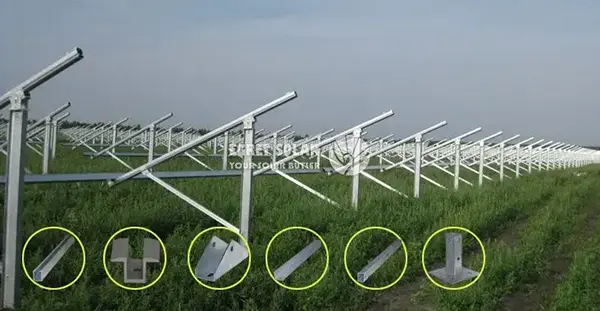

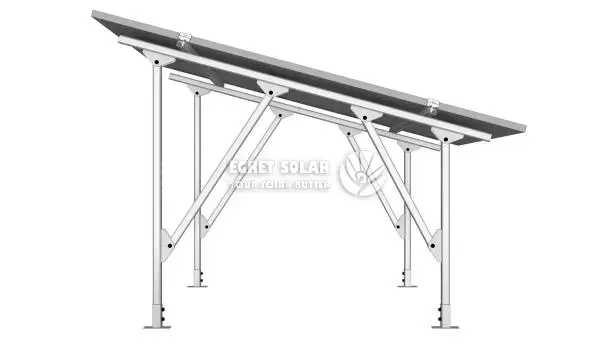

In terms of structure: The Solar Carbon Steel Base and the PV support form a stable tripod structure.

In terms of adaptability: It is suitable for uneven ground and can be connected and fixed to all common types of foundations.

In terms of transportation: Interlocking design reduces transportation space by 40%.

In terms of installation: Multi-hole adjustment enables high installation efficiency.

FAQ

Q: What is the single weight of the base?

A: The weight of the standard model is 0.35kg, and the specific weight needs to be estimated according to the thickness and length.

Q: How long is the production cycle for an order?

A: We can complete the production of the goods within two weeks, and deliver the goods according to the nearest shipping schedule.

Q: Can the base be customized?

A: We can provide one-on-one design according to your customization requirements, and offer design drawings in DWG and PDF formats free of charge.
