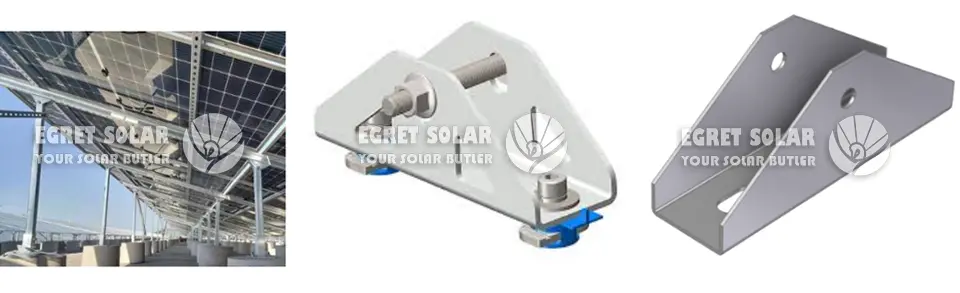

Solar Carbon Steel Triangular Joint

High strength, streamlined PV project installation, and strong universality.

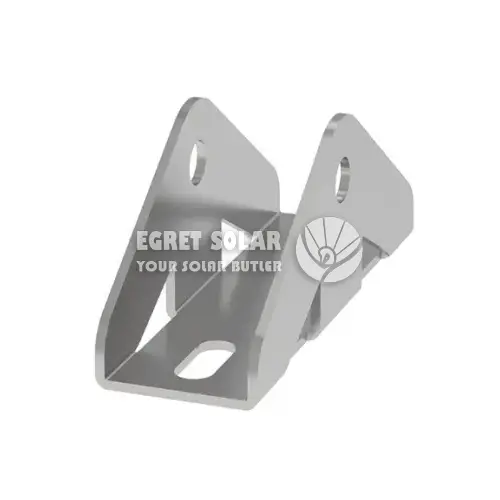

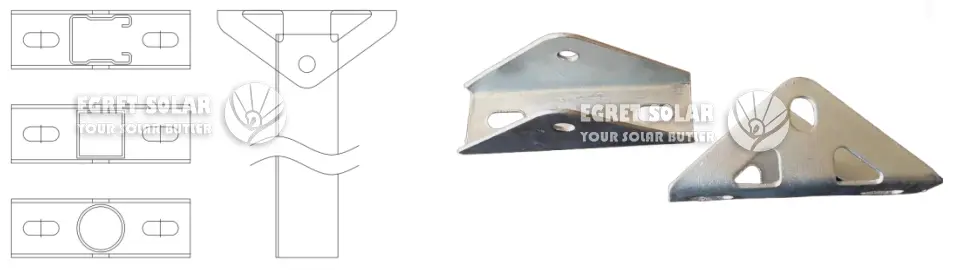

Egret Solar's Self-developed joint is made by punching and bending plates of Q235B material, and the yield strength of the Solar Ground mounting triangular joint is 235MPa. The middle part of the joint is a rectangular notch, which can be fitted with common profiles such as C-channel steel, U-channel steel, square tubes and round tubes. The width can be adjusted according to the actual project requirements.

Hollowed-out design with multi-hole adjustment:

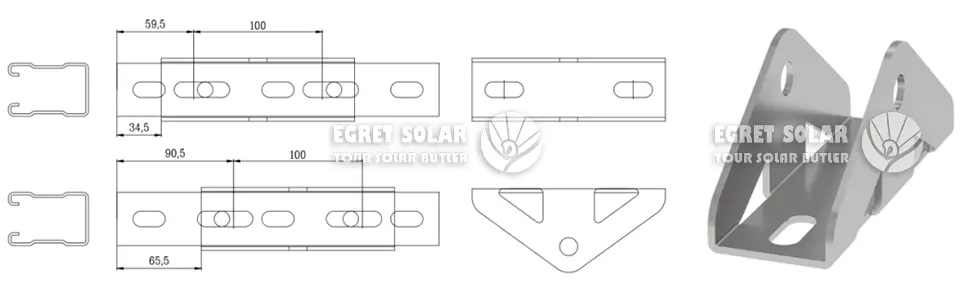

The two sides of the joint adopt a hollowed-out design, which reduces the windward area of the pv support in the lateral direction. The bottom of the PV Triangular Joint Connector is processed into slotted holes, allowing for a front-and-back adjustment of 30mm on the longitudinal beam. This solves the problem of inconsistent angles of photovoltaic supports caused by uneven road surfaces and reduces interference during installation.

Advantages & Features for this Solar Triangular Joint Connector :

1.Corrosion Resistance: This Triangular Joint is made of Q235B material with a hot-dip galvanized surface treatment, and the thickness of the zinc layer on the surface reaches 65μm, achieving an anti-corrosion effect of 20-30 years in the C3 environment.

2.Lightweight ：Hollowed-out design for weight reduction.、

3.High strength and high loading capacity ：The structural strength can be enhanced by replacing the material and increasing the thickness.

4.Easy installation：It can be interlocked in pairs, reducing the storage space by 40%. Featuring a small size and light weight, it is convenient for transportation.

FAQ

Q: How to select a suitable Solar Carbon Steel Triangular Joint?

A: We will select or customize the corresponding joint according to the wind and snow conditions of the project and the main profiles used.

Q: Can the material and anti-corrosion performance of the joint be enhanced?

A: The galvanized coating can be thickened or plates of SUS350 material can be adopted for processing.

Q: How long do the transportation cost and delivery time take?

A: The transportation cost is calculated according to the actual port conditions and purchase volume. The production time is 15 working days, and the goods will be shipped based on the nearest shipping schedule.
