Solar Aluminum Sliding Block With Spring Ball M8 Nut
  • Solar Aluminum Sliding Block With Spring Ball M8 NutSolar Aluminum Sliding Block With Spring Ball M8 Nut
  • Solar Aluminum Sliding Block With Spring Ball M8 NutSolar Aluminum Sliding Block With Spring Ball M8 Nut

Solar Aluminum Sliding Block With Spring Ball M8 Nut

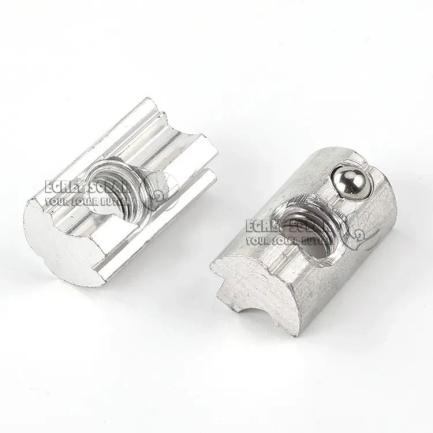

Solar Aluminum Sliding Block With Spring Ball M8 Nut is a fasten accessory for PV module installation sliding in aluminum alloy rail. Aluminum body with stainless steel/A2 spring ball, M8 thread for aluminum profile 40*40.

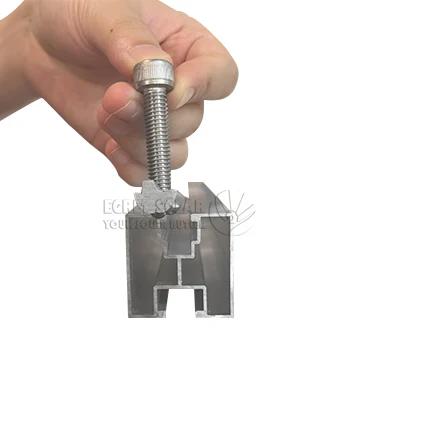

The roll-in ball with spring loaded can help these nuts stop in any position of rail grooves. This sliding slot nut with spring ball is designed for M8 PV aluminum groove profiles. What ever upper channel or side channel of the mounting rails.Material of the slot nut is aluminum. The integrated stainless steel spring ball ensures a secure seat.Put the sliding block swivel into the top groove, and then install srcew with clamps.

Name: Solar Aluminum Sliding Block With Spring Ball M8 Nut
Brand: Egret Solar
Product Origin: Fujian, China
Material: Aluminium
Warranty: 12years
Duration: 25years
Shipping Port: Xiamen Port
Lead Time: 7-15 days
Max Wind Speed: 60m/s
Max Snow Load: 1.4kn/㎡

Send Inquiry

Product Description

The main body of this Solar Aluminum Sliding Block With Spring Ball M8 Nut is made of good quality aluminum(EN AW-6061), the ball and spring inside is made of stainless steel, this M8 sliding nut can offer great stability and long life-span for photovoltaic racking system.


These balled M8 sliding nuts are used together with solar aluminium mount rail clamps.


Features of this sliding nuts M8 with ball for solar mounts:

(1) Weather resistant

(2) Easy construction

(3) Individual connection for rails;

(4) Aluminum sliding block with stainless steel spring ball;

(5) Tightening torque: 15Nm;

(6) Easy to push into rail profil with M8 screw thread sliding Block;

(7) Good hold with mechanics design of spring ball;


Besides M8 bolt size, M4 / M5 / M6 … T slot nuts are also available for these sliding nuts M8 with ball for solar mounts.


More than 10 years experience in the field of solar photovoltaic and pv panels mounting components and installation system.

FAQ

1. What is a solar sliding nut?

A solar sliding nut is a type of fastener used in solar panel mounting systems to attach the panels to rails. It is typically made of stainless steel or aluminum and features a slot that allows it to slide along the rail and be positioned anywhere along its length.


2. How is a solar sliding nut installed?

A solar sliding nut is typically installed by inserting it into the bottom channel of the rail and sliding it along until it reaches the desired position. The solar panel can then be attached to the sliding nut using a bolt or other fastener.


3. How many solar sliding nuts are needed for a solar panel system?

The number of solar sliding nuts needed for a solar panel system depends on the size of the system and the spacing of the rails. Typically, several sliding nuts are used for each solar panel to provide secure and reliable support.


4. What are the benefits of using solar sliding nuts?

Using solar sliding nuts allows for greater flexibility and adjustability in solar panel mounting systems. They make it easy to position the solar panels precisely where needed along the rails, and they can be easily moved or adjusted if needed.


5. Are solar sliding nuts compatible with all types of solar panel mounting systems?

Solar sliding nuts are a common component of most solar panel mounting systems, but it's important to ensure that they are compatible with the specific system being used. The manufacturer of the solar panel mounting system should be able to provide guidance on the use of sliding nuts.


6. What materials are solar sliding nuts typically made from?

Solar sliding nuts are typically made of stainless steel or aluminum, which are durable and corrosion-resistant materials that can withstand exposure to harsh environmental conditions.

Overall, solar sliding nuts are a versatile and essential component of solar panel mounting systems, allowing for greater flexibility and precision in the positioning of the panels along the support rails.
