Solar Hanger Bolt Roof Mounting Bracket

The Solar Hanger Bolt Roof Mounting Bracket is used widely in Roof Mounting System.These high-quality Solar Hanger Bolt Roof Mounting Bracket has been exported to Europe, North America, Germany, Turkey, Brazil and other countries for a long time. As a factory, we can ensure accurate delivery time, and our product quality and service are recognized by customers.

Brand : Egret Solar
Material :SUS304
Color : Natural
Lead Time:10-15 Days
Certification :ISO/SGS/CE
Payment :T/T,Paypal
Product Origin : China
Shipping Port :Xiamen

Send Inquiry

Product Description

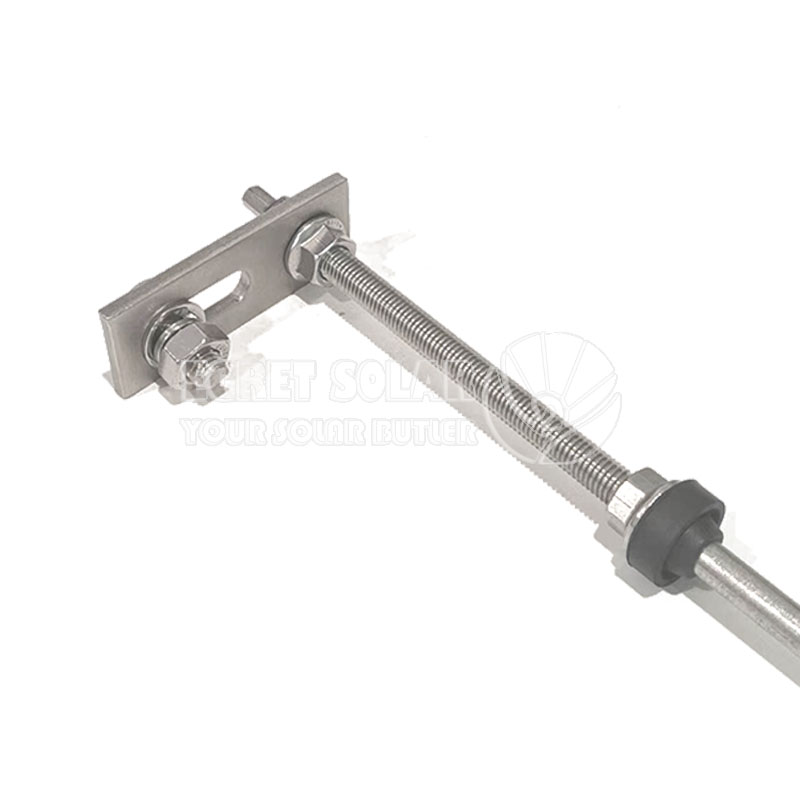

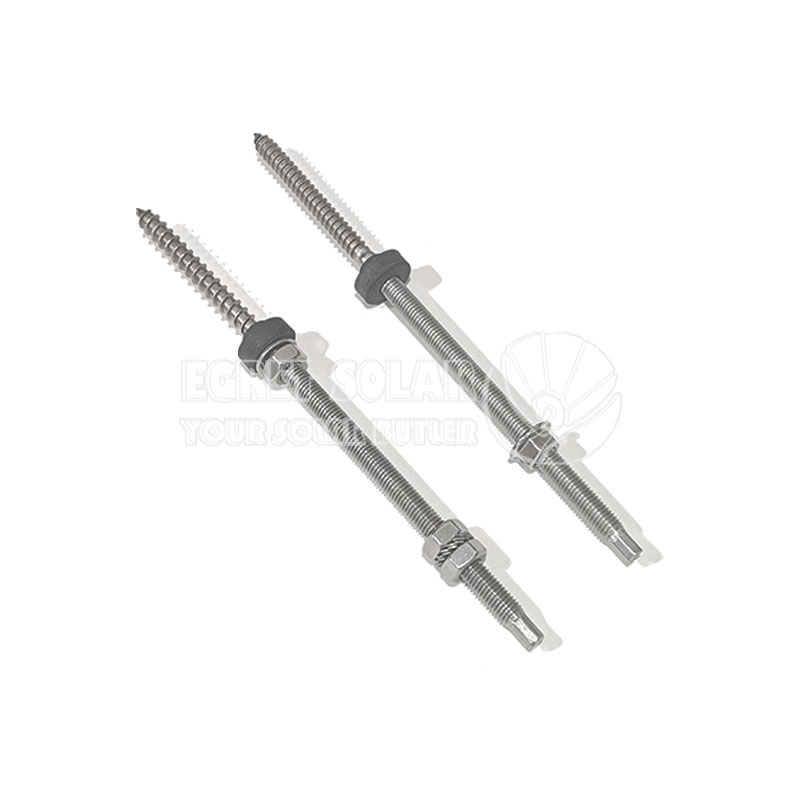

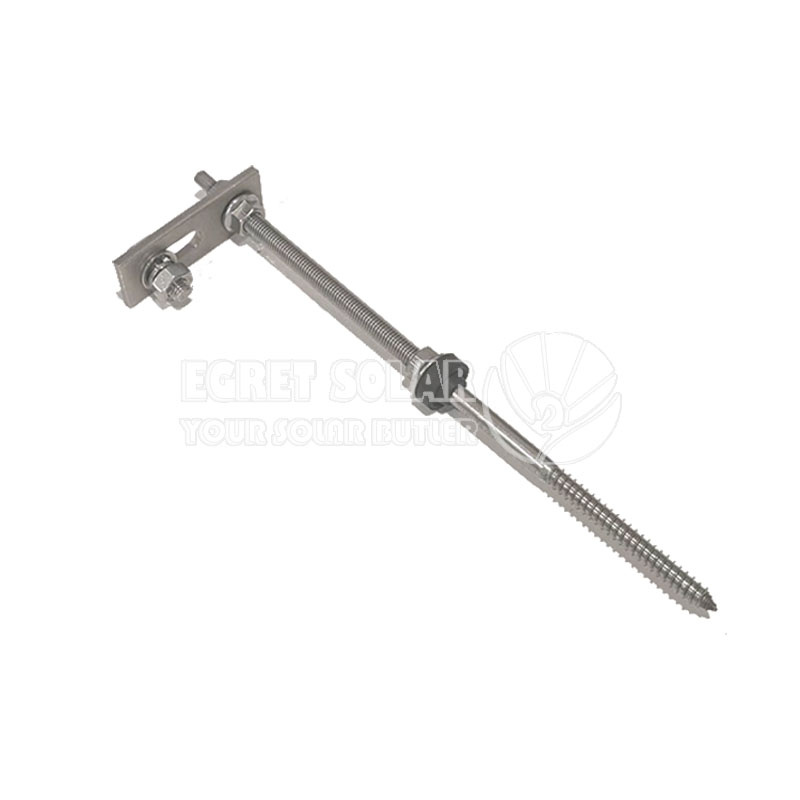

The Solar Hanger Bolt Roof Mounting Bracket is made of stainless steel 304 material , with M10 flange nuts and EPDM Rubber , The hanger bolt is suitable for installation on corrugated metal roofs, and trapezoidal roof .

Solar Hanger Bolt Roof Mounting Bracket applies to install on both wooden beam and steel beam . Both types can be applied with L feet and plate.It can support the rail on the roof.

Main Features：
The features of Solar Hanger Bolt:
1.Easy and fast to install.
2. SUS 304 Material
3. Highly corrosion-resistant surface finish
4. EPDM rubber can be effective waterproofing.
5. Wooden beam and steel beam available both.

PRODUCT PARAMETERS

Product name	Solar Hanger Bolt Roof Mounting Bracket
Model Number	EG-HB01
Installation Site	Solar Roof Mounting System
Specification	M10*200/250/300/350mm
Warranty	12 years
Snow Load	1.4KN/M²
Wind Speed	60M/S
OEM Service	Available
