Water Guide Clip

Water accumulation, dust, hot spots, etc. under the photovoltaic panel frame will significantly affect the power generation of the photovoltaic panel. Egret Solar has a drainage clamp that can solve this problem. The drainage clamp is designed to use the flow of rainwater to carry away accumulated water and dust, increase power generation, reduce cleaning and maintenance costs, reduce the frequency and cost of manual cleaning, and effectively reduce the occurrence of hot spots.

Product Name: water guide clip
Brand: Egret Solar Energy
Product origin: Fujian, China
Material: Aluminum/plastic
Warranty period: 12 years
Duration: 25 years
Shipping Port: Xiamen Port
Delivery cycle: 15-30 days
Maximum wind speed: 60ms
Maximum snow load: 1.4knm

Send Inquiry

Product Description

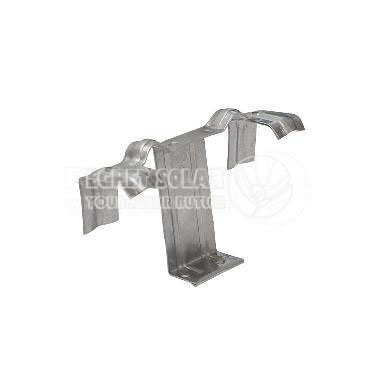

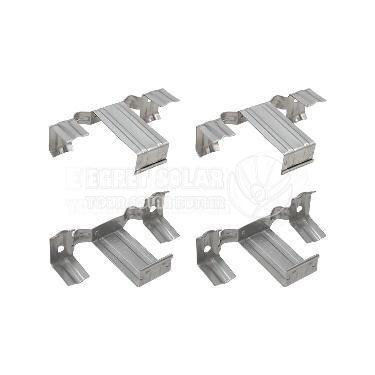

Egret Solar's water guide clamp has many advantages. 1. Anti fall design: The stainless steel plate is suspended below the water guide clamp, squeezed between two photovoltaic panels, and fixed to the water guide clamp. After installation, the water guide clip will not fall off due to cleaning or other scratches; 2. Anti overflow glue blockage: The two S-shaped elbows on both sides of the stainless steel plate can prevent the structural glue between components from overflowing above the frame, ensuring a smooth drainage path after the installation of the water guide clamp.


features:

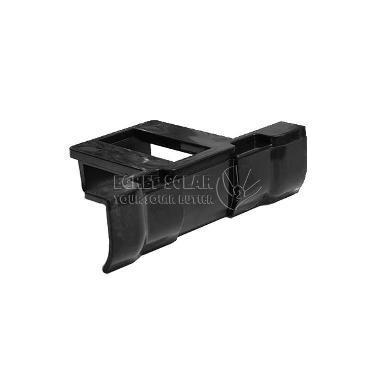

1. Using the water guide clamp, engineering plastics+fiberglass materials break through the limitations of hydrophilic materials, optimize product structure design, and further enhance water drainage performance with leg design, resulting in weather resistance of the product.

2. Optimize the reinforcement design to further enhance the impact resistance of the water guide clamp.



Specification: 30mm   35mm    40mm

Installation method: Install the water guide clamp on the bottom edge of the solar cell and maintain a distance of 2-3cm from the frame, so that water and mud can be discharged simultaneously. Install the the water guide clamp at the bottom edge of the water dust sediment and maintain a distance of 2-3 centimeters from the boundary. By installing the water guide clamp at the bottom, water and mud can be discharged synchronously. Keep a distance of 2-3cm between the solar cell and the frame.


FAQ:

1: Are you a factory or the only company?

We have factories that produce solar cells and energy storage systems, and are also a source of solar energy components.


2: Why can we choose you?

We have been engaged in photovoltaic system products for 5 years.And we are committed to providing you with reliable products and high-quality services.


3: How about the shipping cost?

If the goods are not large, we can send them by express delivery (FEDEX, DHL, EMS, TNT, etc.). If our cargo volume is large, we will send it to you by sea or air freight. We can quote FOB, CIF, and CNF according to your preferences. Then you can choose our freight forwarder or your freight forwarder.


4: How about the price? Can I have it in a cheaper price?

We will provide you with the most favorable quotation based on the purchase order you require.


5. Is the solar drainage clip suitable for any frame?

The solar drainage clip comes in all standard frame sizes (30mm, 33mm, 35mm, 40mm, and 50mm). Just measure the thickness of the frame and let us know when you ask for a quote.
