Adjustable Solar Trapezoid Metal Roof Mounting Structure

Egret Adjustable Solar Trapezoid Metal Roof Mounting Structure provide a reliable solution for solar arrays on these specific trapezoidal roof.Its adjustability and design offer installers flexibility and efficiency.

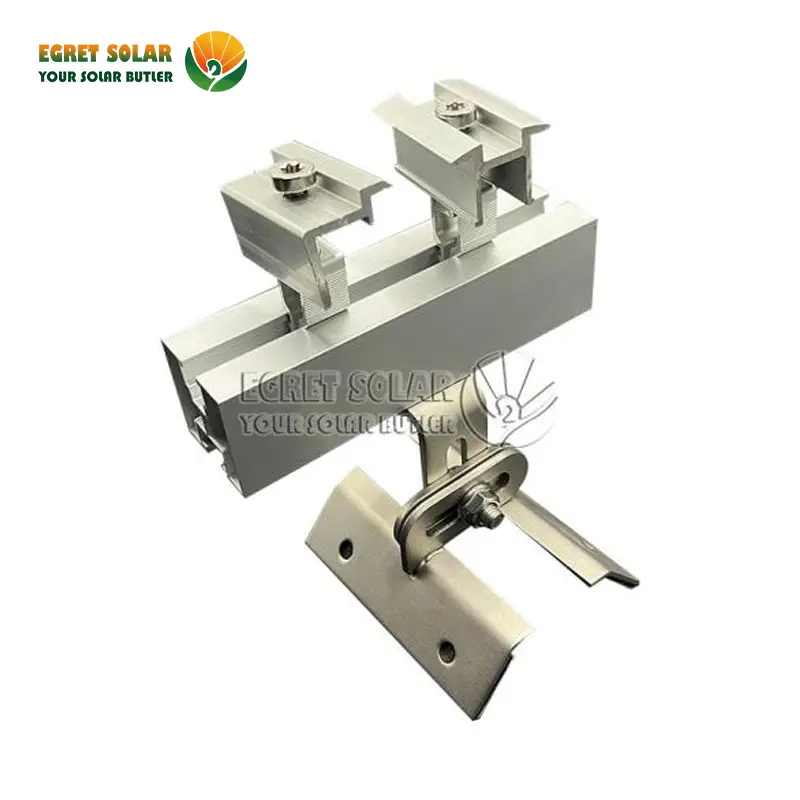

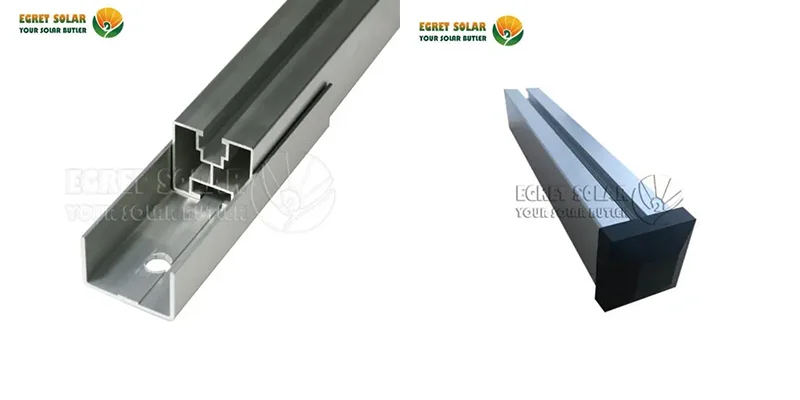

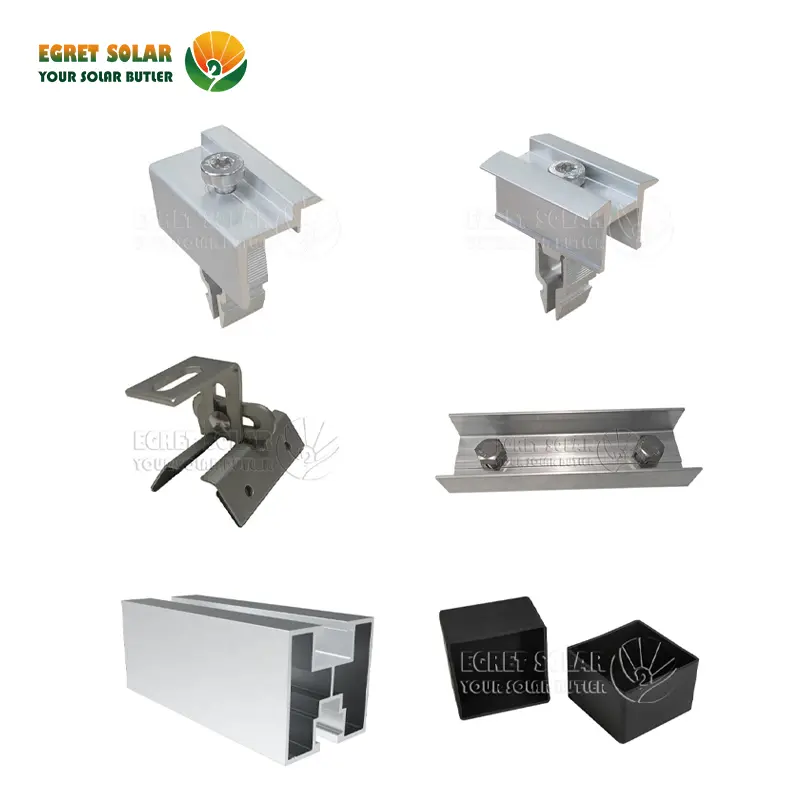

This kind of system mainly consist of solar X clamp , aluminum profile 40x40mm ,rapid end clamp ,rapid mid clamp & rail connector .The rail length can be extended by rail connector . To protect this whole adjustable solar metal roof system well , you can add end cap.

The Solar Mounting Adjustable Roof Clamp offers both vertical and lateral adjustment. It allows fine-tuning of the mounting rail's height above the roof surface by 40x40 mm solar mounting rail. This compensates for variations in rib height and roof slope, ensuring horizontal placement of the solar panel. It also enables precise positioning of the clamp along the length of the rib for optimal alignment with the solar panel mounting holes or the 40x40 mm aluminum rail.

Based on the design concept of 25 years’service life and a 12-year warranty, all structural parts are made of high-strength stainless steel and anodized aluminum to ensure the high durability of the materials. Egret Solar insists on strict quality control, including material purchase, production and processing, and pre-assembly, to ensure that the system can withstand extreme weather conditions. All parts of the system are tested accurately to make sure there is enough bearing load. Resistance to wind speed is 60 m/s, and snow load is 1.4 KN/㎡

What are the advantages of the adjustable solar trapezoid metal roof mounting structure?

1. High Compatibility, with the function of adjustable width, height, and angle to well fit with different sizes of trapezoidal roofs;

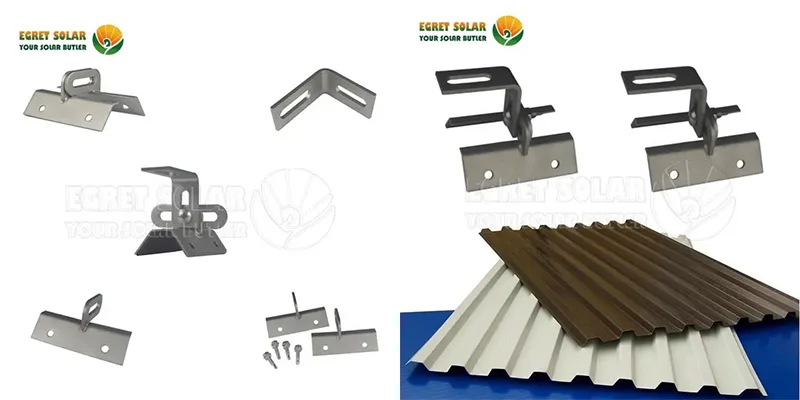

2. Corrosion Resistance, SUS304 stainless steel roof hook and anodized aluminum rail &solar panel clamps to promise longer durability;

3. Easy Installation, reserved mounting holes on clamps, light-weight aluminum rail to make it fast and easy when installation;

4. Strong Protection, 3M adhesive rubber pad on both sides to prevent metal roofs from leaking water, keeping clamps fixed permanently without damage to the roof;

FAQ

Q1: Can I have a free sample of Solar Metal trapezoidal Roof Clamping?

Yes,one set sample is for free, but you need to cover the courier freight.

Q2: What about the lead time?

Sample needs 2-3 days.While bulk order needs 7~15 days ,depands on order quantity .

Q3 : Any MOQ for Trapezoidal Metal Roof Solar Panel Mounting Bracket?

Egret Solar don't have a request on MOQ for our regular products, 1pc for sample checking is available. But for ODM and OEM products, we have a request on MOQ.

Q4 : How about your after-service?

Egret solar will be responsible for any complaints from our customers (response immediately when we received it, within 3 hours) and would like to help our customers to solve any problems what they meet.
