Solar Mini Rail Mounting System

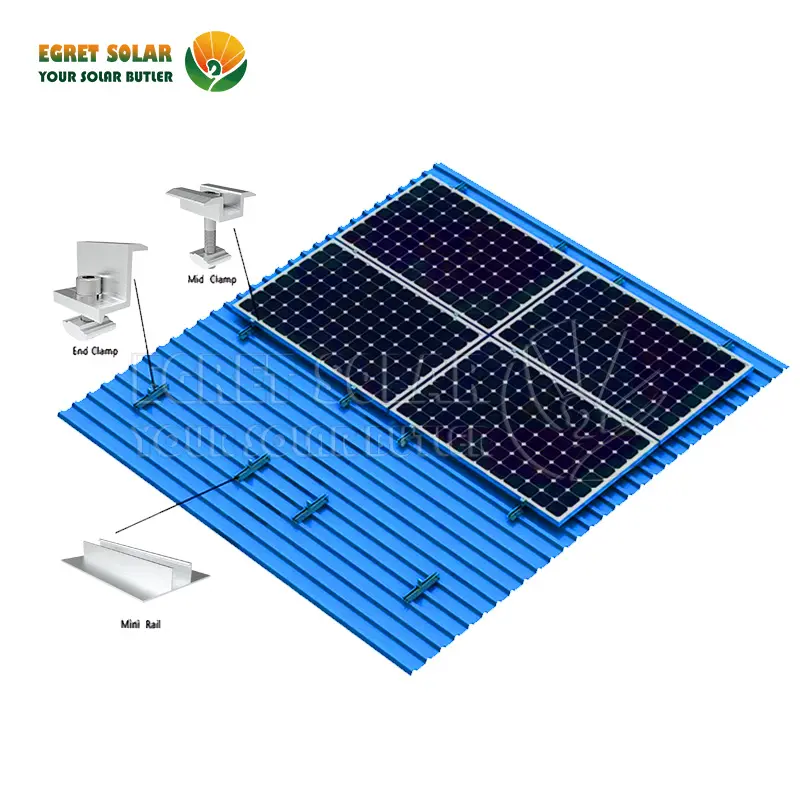

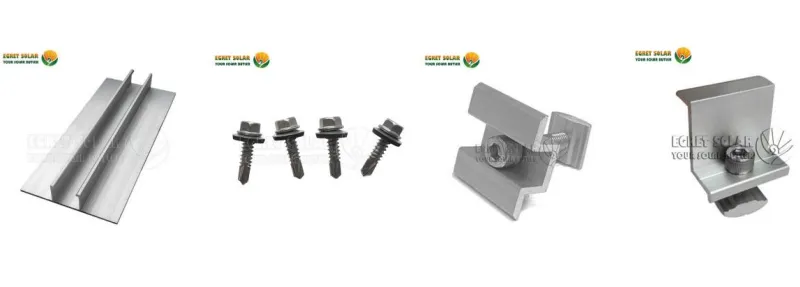

Egret Solar Mini Rail Mounting System for solar installation has been specially developed for metal sheet roof, like trapezoidal sheet roof and corrugated iron roof. It's a variant of Mini rail system and impresses with its universality and simplicity. It is made of anodized AL6005-T5 & SUS304, which have great performance on corrosion and acid and alkali resistance. It's the most economical solar solution that apply to tin roof. The whole system consists only four components,which make it easy to install.They are solar short rail,self-tapping screws,end clamp & mid clamp respectively.

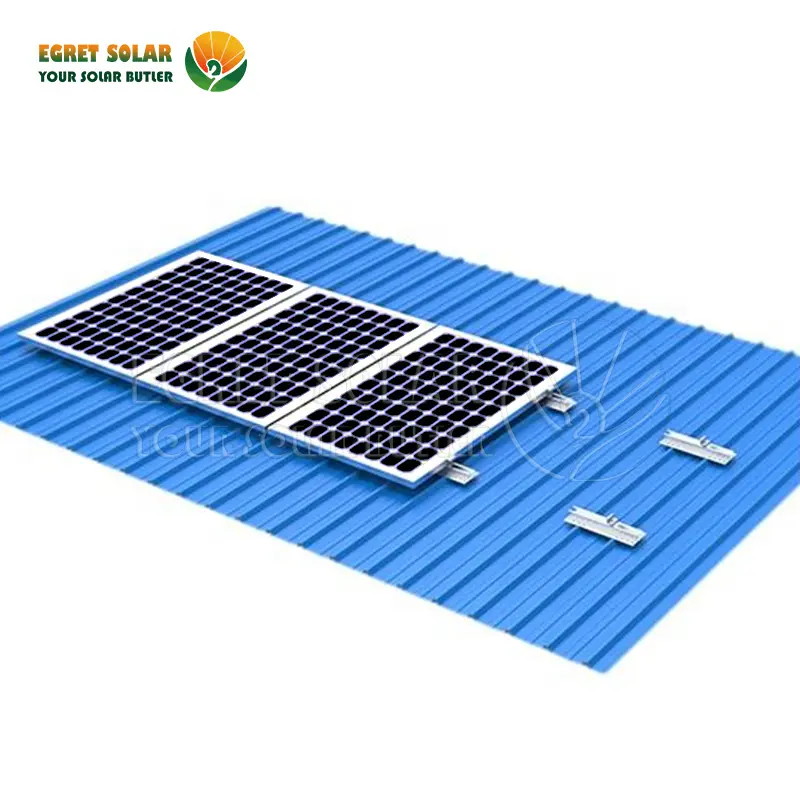

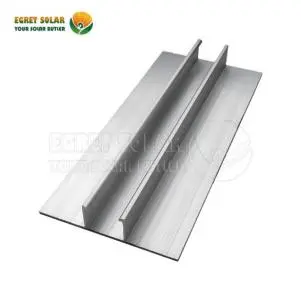

This Solar Roof Mounting Structure is workable for both portrait and landscape orientation.And it ‘s suitable for different solar panels’ thickness .To avoid any water leakage ,the self-tapping screws are with sealing washers .The regular length of Egret solar short rail is 200mm/250mm/300mm/320mm.Or can customize as client’s request.Using carton packaging, it’s easy to transport and handle to roof top .This kind of short rail design can save logical cost ,installation cost & labor cost .

Egret Solar Short  Rail Solution are designed to be easy to install, which means they can be put in place quickly and efficiently. It allow to adapt to more complex roof layouts and multiple installation configurations .They can flexibly adjust the installation position and angle of solar panel to optimize solar power generation efficiency.Easy Installation of Solar Short Rail Mounting System only need the following two steps .

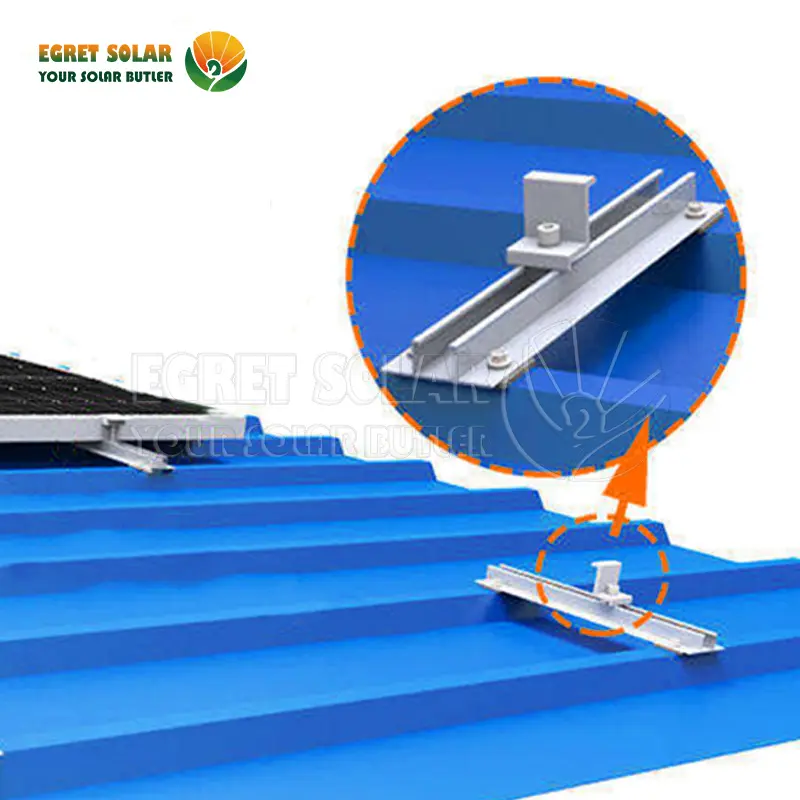

STEP 01---Mount solar short rail on the suitable points by self-tapping screws.

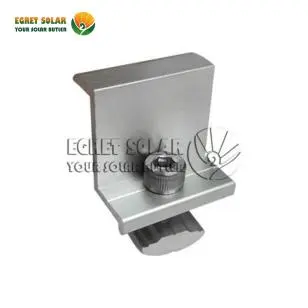

STEP 02---Install solar panels on Egret solar mini rails by solar mid clamps and solar end clamps.

Features

· Easy & fast installation

· Cost-effective due to low material cost

· High Flexibility and adaptability

faq

Q1: What’s your delivery time of Solar Mini Rail Mounting System ?

A1: About 7-15 days .When order confirmed ,we will double check for you .

Q2: Do you provide free samples ?

A2: Yes , we provide free samples for test.

Q3: Do you have OEM service ?

A3: Yes ,we accept OEM service .

Q4. Are you manufacturer ?

A4.Yes ,we have own factory located in Xiamen China,with rich experience more than 8 year.

Q5. Can you recommend the suitable Solar Racking Roof Mounting System ,according to roof style ?

A5:Yes, we have engineers to design for you .
