Solar Mounting L Feet Extra Long Style

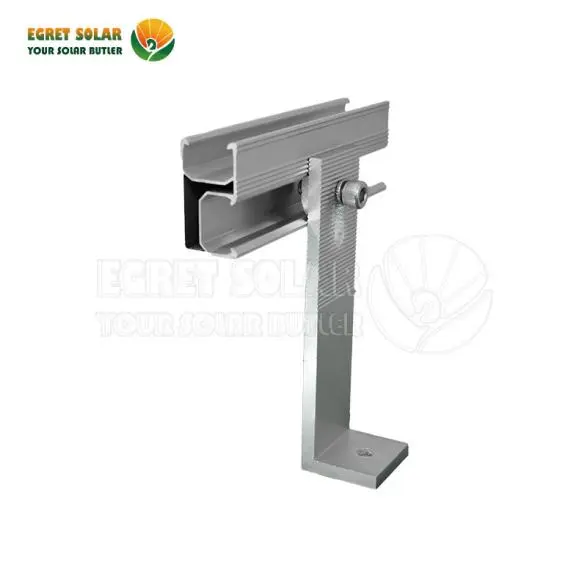

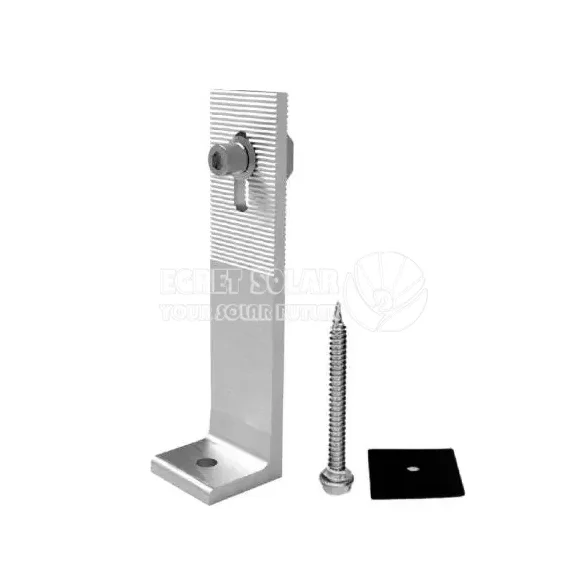

Solar Mounting L Feet Extra long style is one of the most cost-effective solution applied for universal corrugated metal sheet roof.The L feet can math with wooden and self-drilling screws or our hanger bolts to meet different roof purlins and requirement, and the EPDM rubber pad can prevent water leakage caused by drilling. L feet solar bracket is mounted on the metal roof directly and connect with rails which is side mounted,simple and easy to install.

L Feet Solar Mount is designed for securely and robustly mounting solar panels on metal roofs, ideal for outdoor environments requiring wind resistance and heat from sunlight.

Product Features

Material: High-quality aluminum alloy, strong and corrosion-resistant

Height: 155mm

The L-shape securely attaches the aluminum rail to the metal roof.

Pre-drilled holes for screw installation.

Supports installation with additional roof clamps or waterproof rubber seals.

Advantages

Easy to install, saves time

Durable in all weather conditions

Good resistance to weight and tension from solar panels

Designed specifically for metal roofs

How to Use

Place the L-Feet against the metal roof ridge at the desired location.

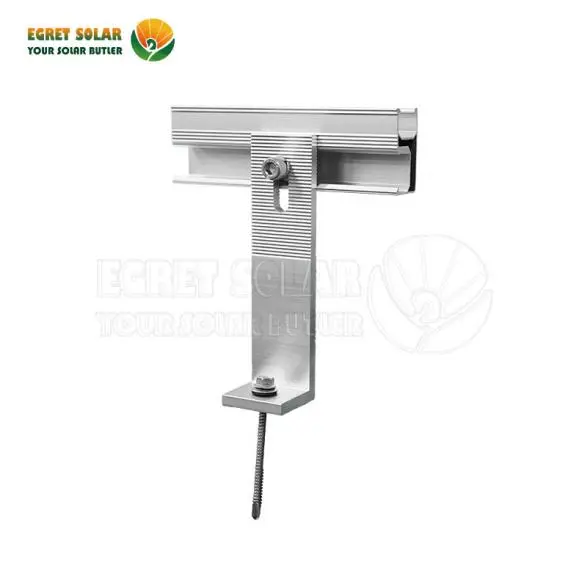

Drill and secure with self-drilling screws suitable for the roofing material.

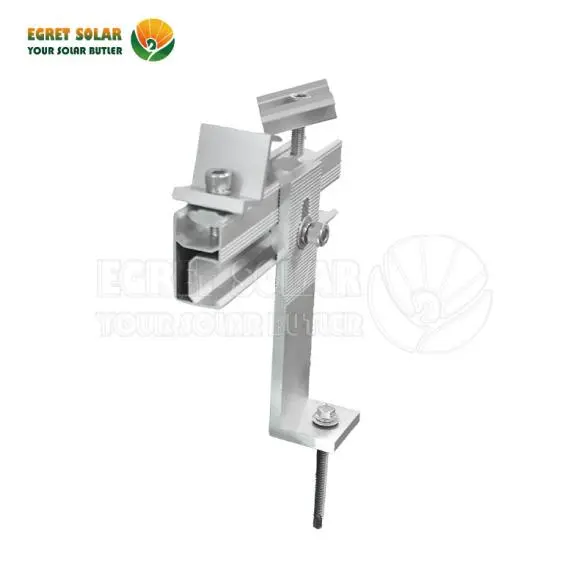

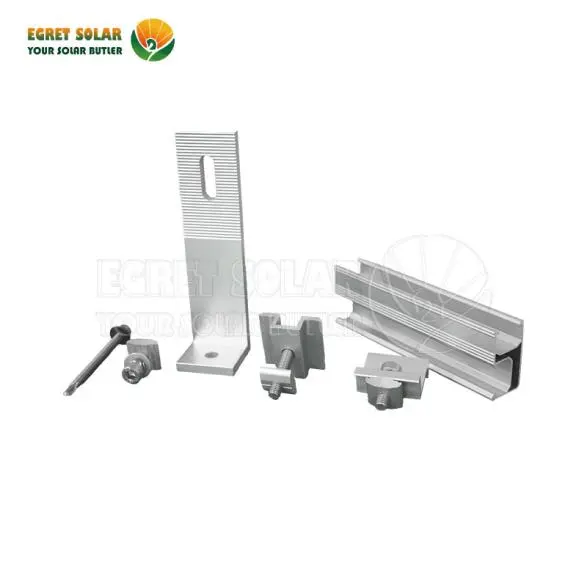

Connect to the aluminum rail using nuts and washers.

Check tightness before installing the solar panels.

Precautions

Choose high-quality screws and sealing rings

Avoid installation in rainy or humid conditions

Check the condition after every installation

This Roof Mount L Feet is made of good quality AL6005-T5 material,light weight, corrosion resistance and durable.Serrated surface treatment of the upper part can be fixed with the rail firmly to prevent sliding. The high quality of EPDM rubber pad is quite durable for long life service.

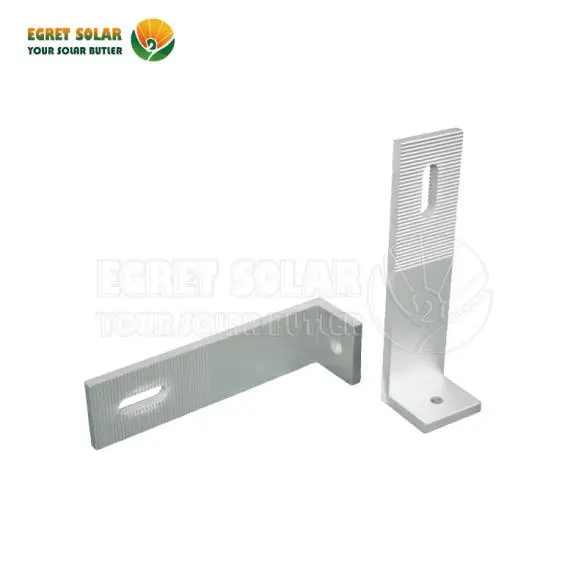

L-Feet Metal Sheet Solar Panel Mounting System for solar bracket, make more space between solar panel and roofing,conducive to the heat dissipation of solar panels.Ensure the service life of solar panels and the most efficient power generation output.The long hole design is flexible for adjusting the height of  the rail, make the installation more faster.

FAQ

1. What are L-Feet in solar installations?

Answer: L Feet for Tin Roof that anchor solar rails to roofs/ground surfaces. They form the foundation of your array, supporting rails that hold panels.

2. What dimensions do L-feet come in?

Answer: Heights range from 80mm (low-profile) to 300mm (high-clearance). Common sizes:

155mm: Ideal for tile roofs or moderate snow clearance.

200–250mm: For steep slopes or heavy snow zones.

Custom heights available for commercial projects.

3. Are L-feet compatible with all roof types?

Answer: Yes, with correct flashing/seals:

Asphalt shingles: Use EPDM seals.

Tile roofs: Requires tile hooks.

Metal roofs: Clamp-on feet (no penetration).

Flat roofs: Paired with ballasted bases.
