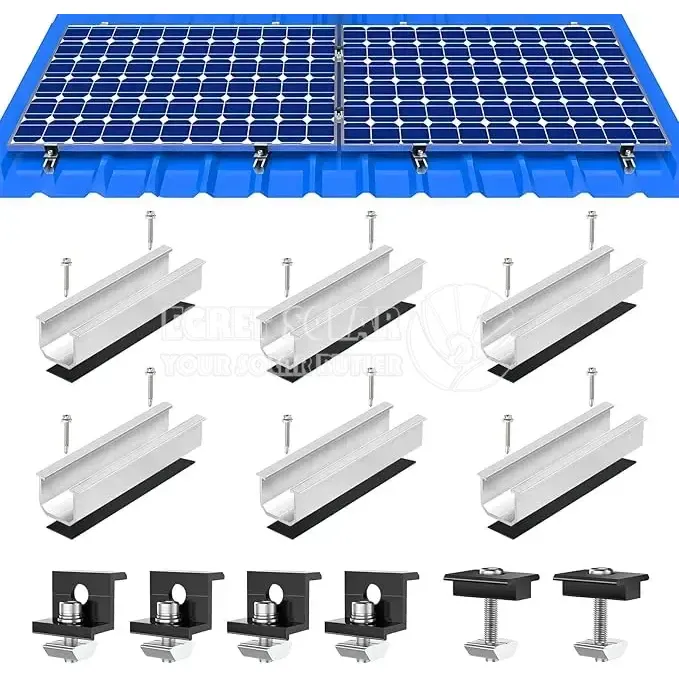

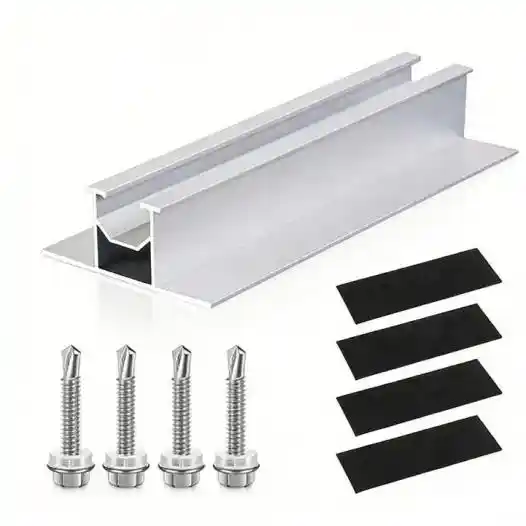

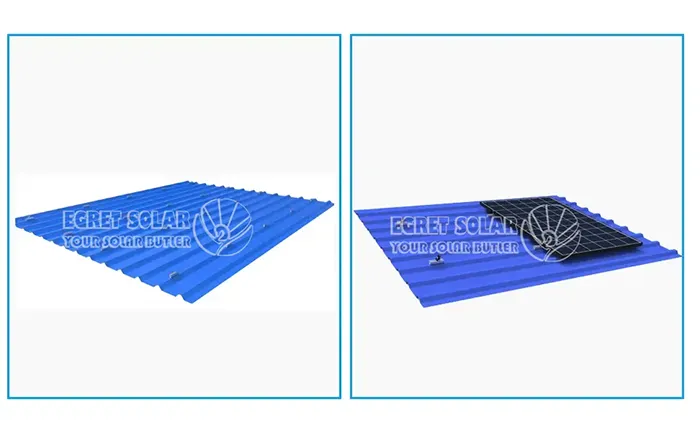

PV Mounting Kit for Trapezoidal Roof

Xiamen Egret Solar PV Mounting Kit for Trapezoidal Roof is made of high-quality aluminium alloy material with anodised surface, which is rust and corrosion resistant. It provides reliable attachment for your solar panels and ensures a long service life, even in extreme weather conditions.Thanks to the thoughtful design and clear instructions, the installation of our rails is quick and easy. By using our complete Trapezoidal Sheet Solar Mount, you will not only save time on sourcing accessories, but also money as you don't have to buy additional part

Details:

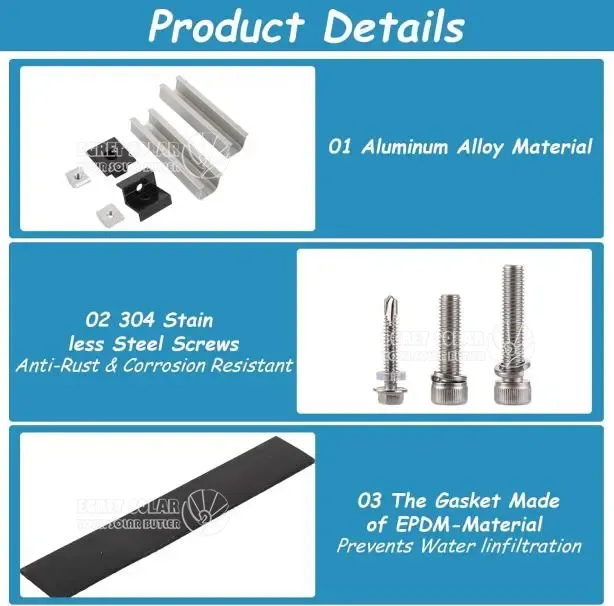

High Quality Material Aluminum Alloy: Solar Metal Roof Mount is made of aluminum alloy (AL6005-T5), which is strong and durable, corrosion resistant and suitable for all weather conditions.

Mounting for solar modules on tin roof mounting, suitable for solar panels.

Product colour: black+silver

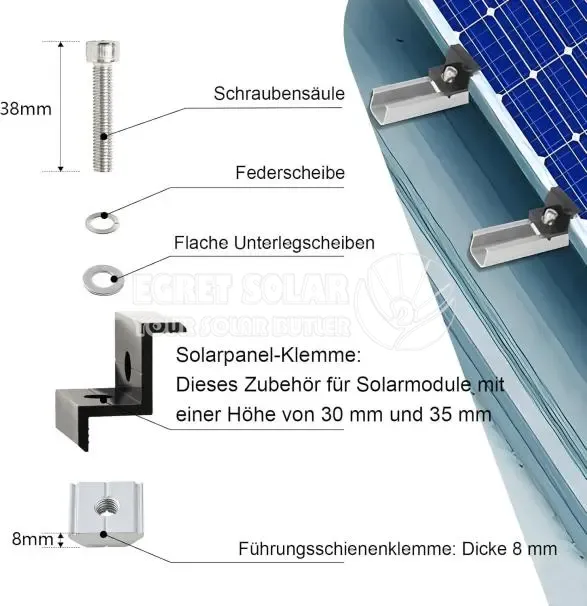

Mid clamp: 30 mm, 35 mm (suitable for solar panels).

End Clamps: 30 mm, 35 mm (suitable for solar panels).

Advantage：

PV Mounting Kit for Trapezoidal Roof made of high-quality aluminium alloy (AL6005-T5), surface anodised for smooth edges, stable and corrosion resistant to UV rays, heat, cold and moisture.

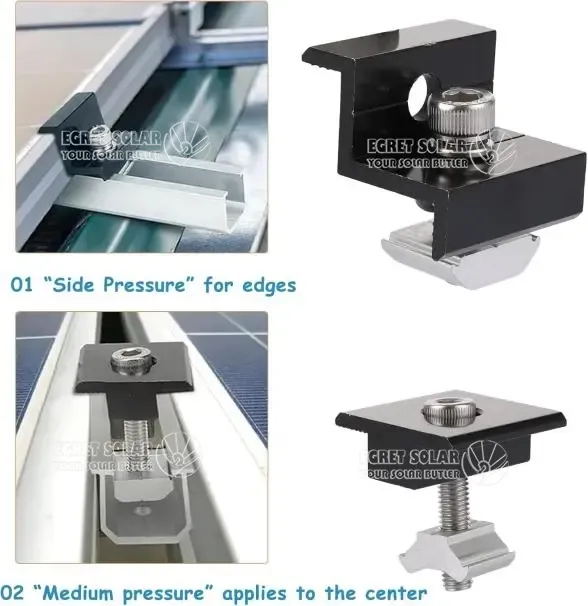

Solar Mount for Tin Roof for solar module clamps are used to attach the modules to the rails and to create a solid connection between the modules. Suitable for module height of 30-35mm, you can adjust the setting according to your needs to ensure stability and performance.

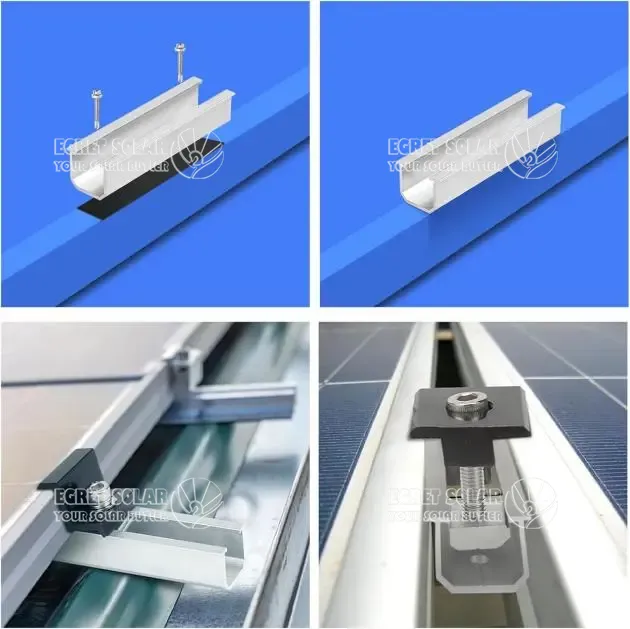

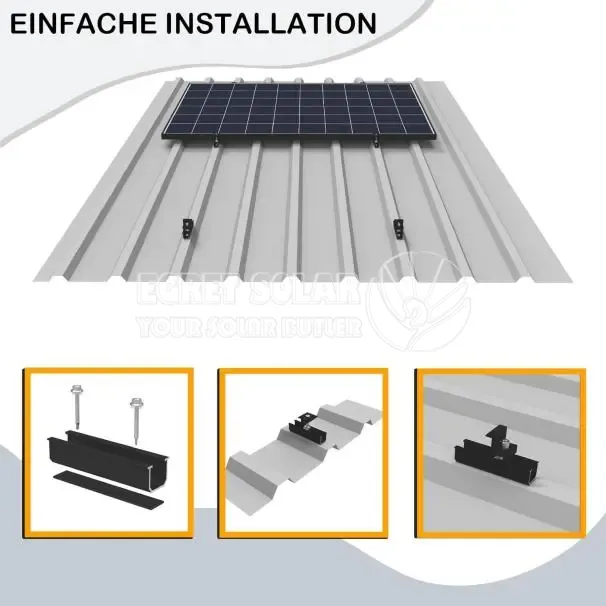

solar bracket, modular construction for easy and convenient installation, no need for complicated accessories, PV module bracket wall mounting, only screws and nuts required to securely attach and connect the solar panels to the rails.

Solar Mount for Trapezoidal Roof is equipped with an improved adjustable clamp, which is suitable for solar panels with a thickness of 30 to 35 mm. You can attach the solar panel by adjusting the clamp to achieve the best installation effect.

PV mount is suitable for a variety of applications, including caravans, houses, boats and balconies. It can be installed on different types of roof such as tiles, asphalt or flat roofs. With this mount, you can mount your solar panels anywhere you want to use solar energy.

FAQ

1. What types of PV brackets are suitable for tin roofs?

Non-Penetrating Clamps:

Ideal for standing seam or corrugated tin roofs. These clamp onto raised seams/ribs without drilling, preserving waterproofing.

Penetrating Mounts:

For roofs without raised seams. Use self-drilling screws with EPDM washers and waterproof sealants (e.g., butyl tape) at penetration points.

Rail-Less Systems:

Directly attach panels to brackets, reducing material costs. Suitable for low-wind areas (<45 m/s) .

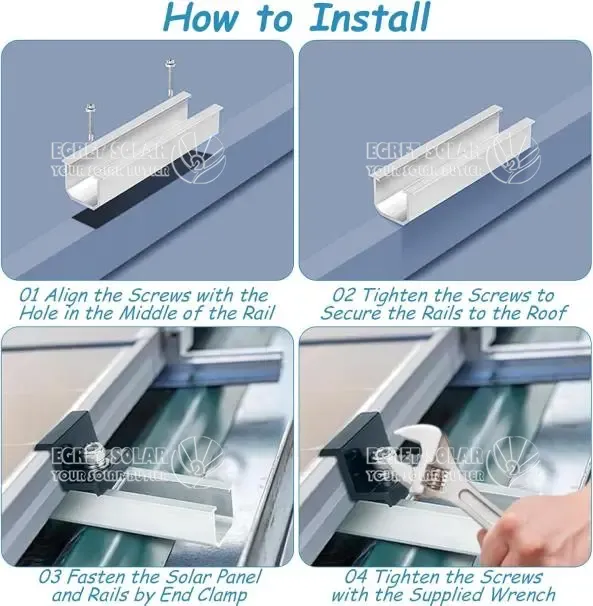

2. How are brackets installed on corrugated tin roofs?

Key Steps:

Roof Assessment: Verify structural capacity (≥1.4 kN/m² snow load, ≥216 km/h wind resistance) and check for corrosion/damage .

Clamp/Rail Alignment:

Align rails parallel to corrugations.

Clamp spacing: 600–900 mm for standard panels; reduce to 500 mm in high-wind zones .

Sealing: Apply sealant under clamp bases and around screws to prevent water ingress .

Torque Control: Tighten bolts to 25 ft-lb max—over-tightening deforms tin sheets .

3. What material ensures longevity?

Aluminum Alloy (6065-T5): Lightweight, corrosion-resistant; anodized for UV protection .

Stainless Steel (SUS304): Essential for coastal/high-salinity areas. Avoid mixing with galvanized steel to prevent electrolytic corrosion .

Surface Treatment: Anodizing or powder coating extends lifespan to 25+ years .

4. What wind/snow loads can these brackets withstand?

Wind Resistance: The PV Mounting Kit for Trapezoidal Roof can reach up to 216 km/h (60 m/s) when the track spacing is ≤1.2 m..

Snow Load: Certified for 1.4–1.6 kN/m² (30–40 psf). For heavier snow, reduce rail spacing or add mid-span supports .

Engineering Standards: Complies with AS/NZS 1170, DIN 1055, and TÜV wind tunnel testing .

5. How does roof angle affect bracket choice?

Low-Slope Roofs (0°–10°): Use tilt brackets (5°–10° kits) to optimize panel angle .

Steep Roofs (up to 60°): Adjustable triangle brackets allow 10°–60° tilt .

Wind Considerations: Higher tilts increase wind uplift—reinforce with extra clamps .

6. What maintenance is required?

Annual Inspections: After the installation of the Solar Panel Mount for 2 Solar Panels is completed, the tightness of the bolts needs to be checked every year. If there is any looseness, it should be reinforced and tightened in time.

Cleaning: Remove debris from clamp channels to prevent water pooling.

Coating Repair: Touch up scratched anodizing/paint within 48 hours to avoid rust .

7. Certifications and Warranty ?

Mandatory Certs: TÜV, CE, SGS, and ISO 9001 ensure structural compliance .

Warranty: 125 years on hardware; 25-year performance guarantees available .
