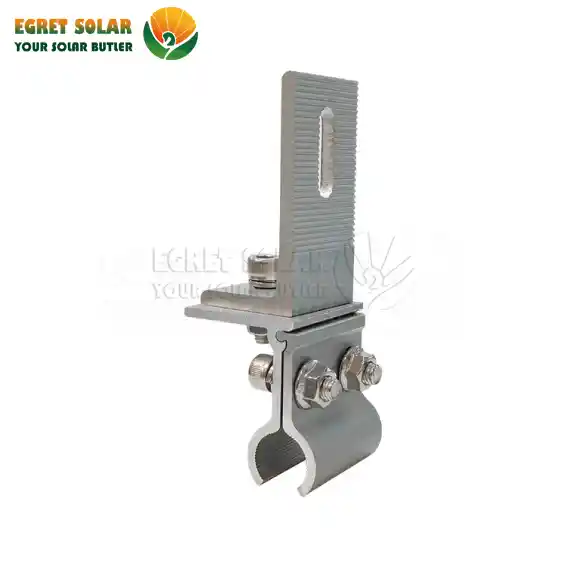

Solar Standing Seam Metal Roof Mounting System

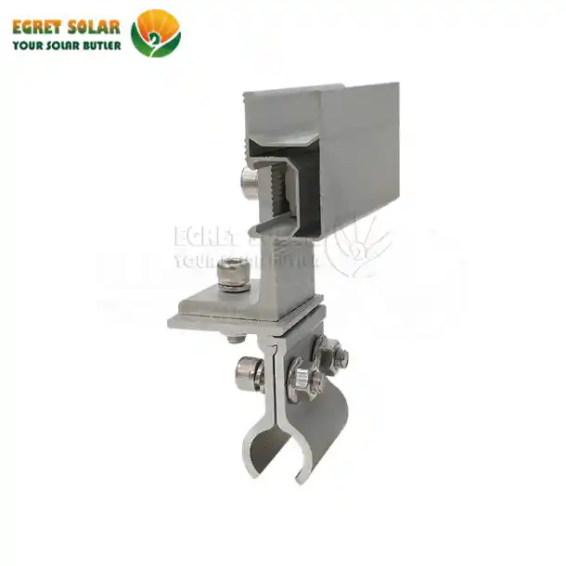

Egret Solar offers customized for Solar Standing Seam Metal Roof Mounting System. Based on the actual roof dimensions of the project and the arrangement of photovoltaic panels, them match the solutions one by one instead of using generic components for general application. All the structural components of this Solar Clamp Standing Seam Roof System are made of aluminum alloy. Each part has undergone surface oxidation treatment, forming a stable protective layer with excellent weather resistance. Those are unlikely to change color or corrode in the long-term exposure to sunlight and rain, thus ensuring the continuous and stable operation of the solar energy system.

MAIN PRODUCTS

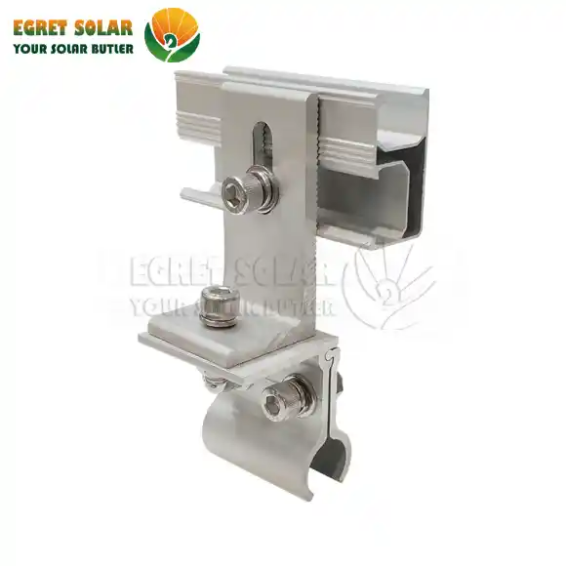

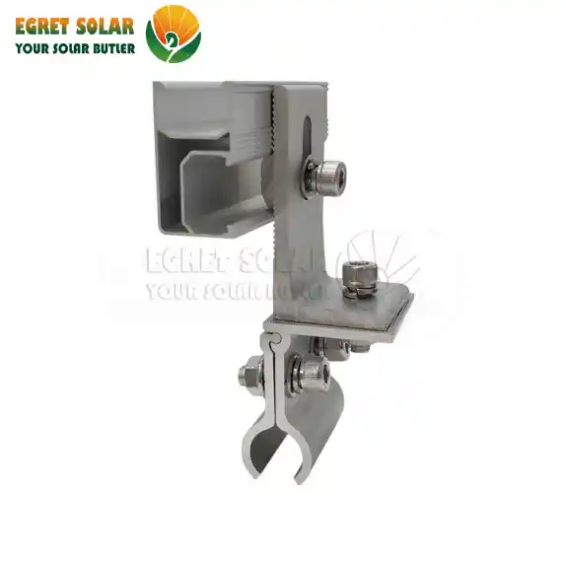

Customized Metal Roof Clamp System is composed of roof clamps, L feet, rails, mid clamp and end clamp. The clamps are responsible for securely fitting and fixing the roof. The L feet connect the clamps to the rails. The rails provide longitudinal support. The mid clamp and end clamp are used to lock the photovoltaic panels. When these four components work together, they form a complete and stable installation system.

ADVANTAGES

1.The non-penetrating design means no holes are drilled on the roof, eliminating problems such as water leakage, rusting, and aging of rubber strips. This design is particularly suitable for factories with high waterproofing requirements. The clamps are directly clamped onto the vertical seams, without damaging the coating or finish of the metal plates, making the roof more durable.

2.The Solar PV Standing Seam Roof Clamp force is reliable and the wind-breaking and lifting performance is excellent. It is tightened by screws and locked with a torque wrench according to the standard value. The fixture can firmly bite into the vertical seam.

3.The orientations, areas and load-bearing capacities of the roofs of different factories vary. It can not only meet the conventional layout but also adapt to irregular or non-standard roofs, with high flexibility.

PRODUCT SHOW

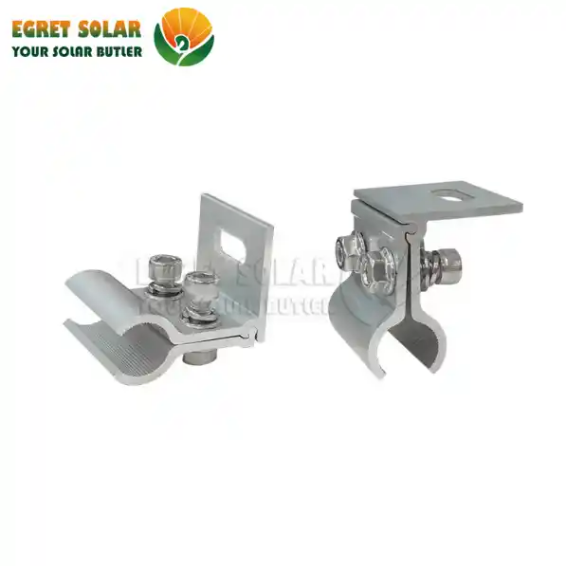

During Solar Standing Seam Roof System installation, first insert the roof clamp into the vertical joint of the metal roof, then tighten the screws on the side until the roof clamp tightly grips the joint position. It is recommended to finally lock it with a torque wrench according to the standard value to ensure the clamping force is adequate. The roof clamp is provided with installation holes, and in combination with the L feet, use the clamping blocks and bolts to fix the solar rail. Finally, use the mid clamp and end clamp to press the photovoltaic panel tightly.

FAQ

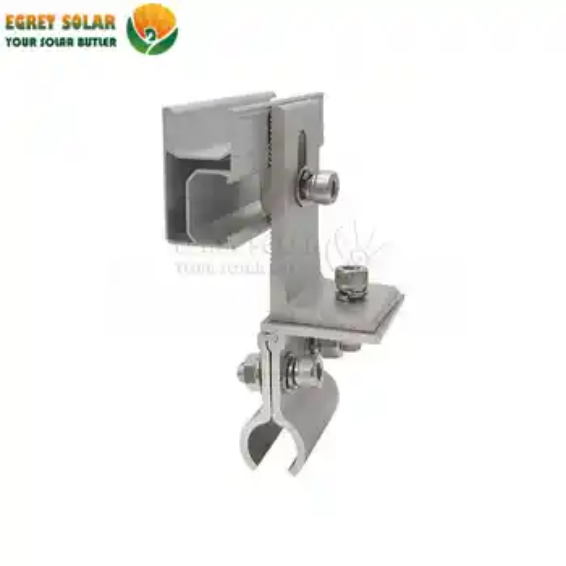

Q1: In which types of metal roofing can Solar Standing Roof Clamp System

be applied?

A: Most common metal roofing profiles can be used, such as corrugated type, standing seam type, trapezoidal type, etc. If there are special profiles, we can also customize and match according to the on-site situation.

Q2: Do you only sell standard parts or can you provide parts by project?

A: We can do either. But most customers go with the custom option – we look at your roof size, panel layout, and how much weight the roof can take, then put together a solution that fits. No one-size-fits-all stuff.

Q3: Will aluminum alloy parts corrode faster in coastal areas or industrial zones?

A: Not really. All our parts come with a surface oxidation coating. That coating keeps moisture and corrosive stuff out. They hold up just fine along the coast, in industrial areas, or anywhere with high humidity – and they last a lot longer than plain aluminum without the coating.
