Aluminum Grounding Lug Solar Mounting

Aluminum grounding lug solar mounting bracket resistant Solar Ground Clip for Solar Mounting System. The high-quality aluminum grounding lug for solar mounting is a vital component in solar systems. Its sleek profile allows for flexible positioning, accommodating one or two copper wires, and it is secured using stainless steel mounting hardware. The conductive plate's specialized teeth establish a strong and airtight electrical connection by embedding into anodized aluminum or other conductive metals.

Brand : Egret Solar
Material :AL6005-T5
Color : Natural
Lead Time:10-15 Days
Certification :ISO/SGS/CE
Payment :T/T,Paypal
Product Origin : China
Shipping Port :Xiamen

Send Inquiry

Product Description

Aluminum grounding lug solar mounting is a grounding component for solar modules and solar mounting systems allowing easy termination to the ground wire.

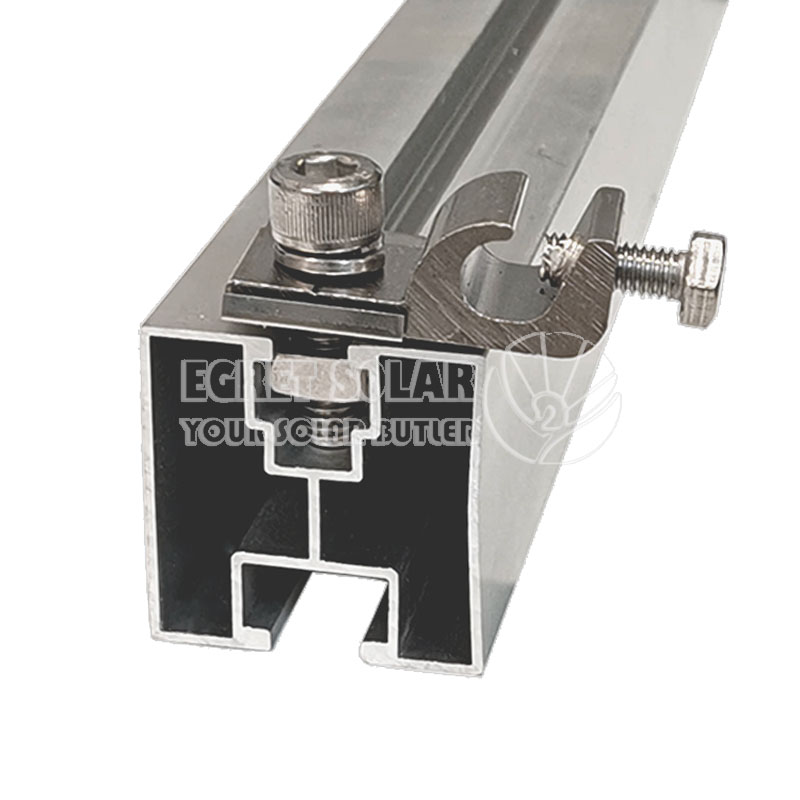

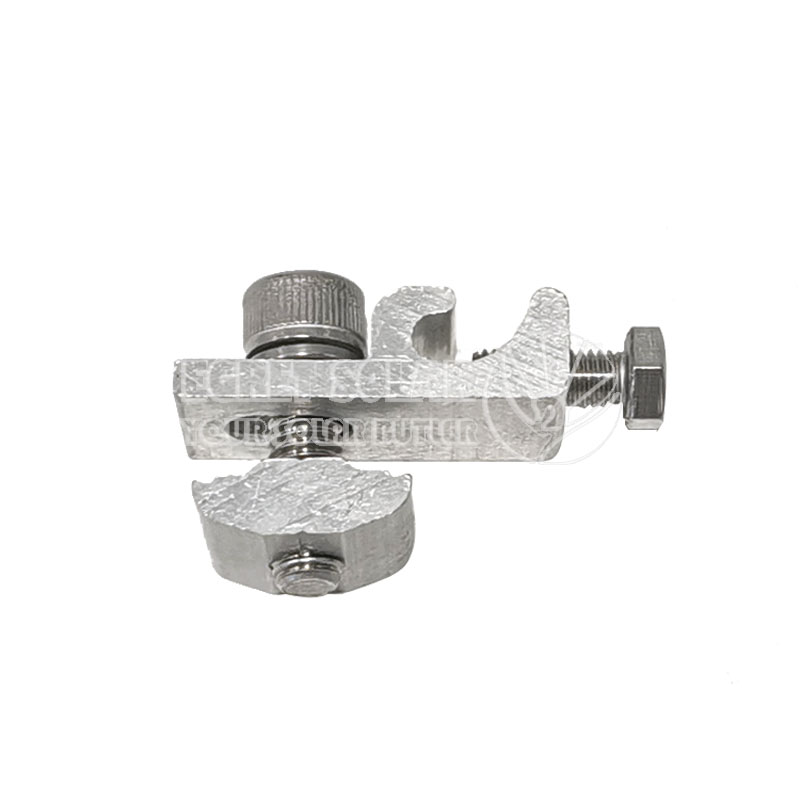

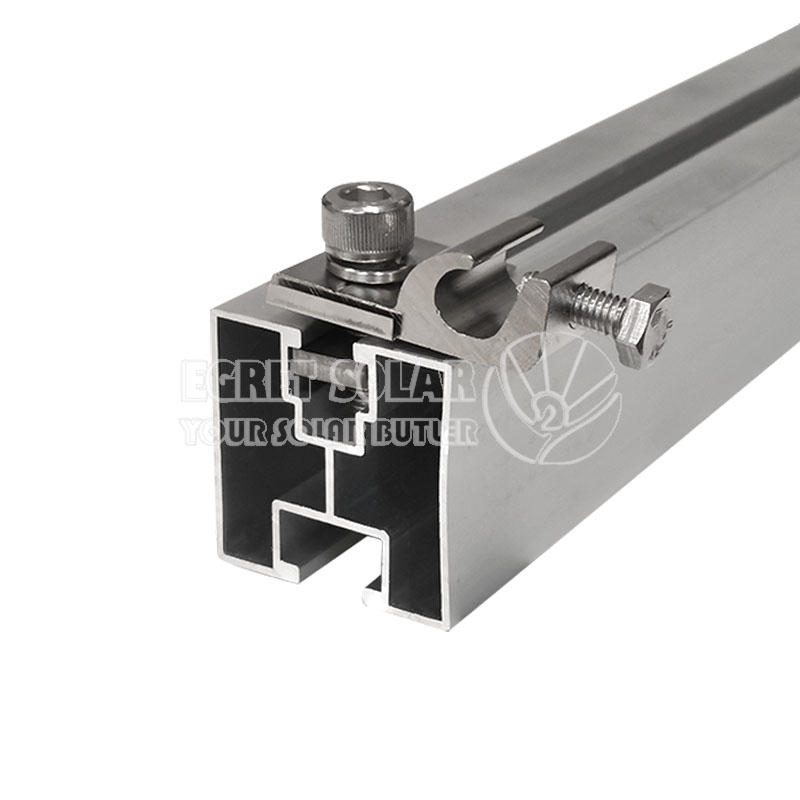

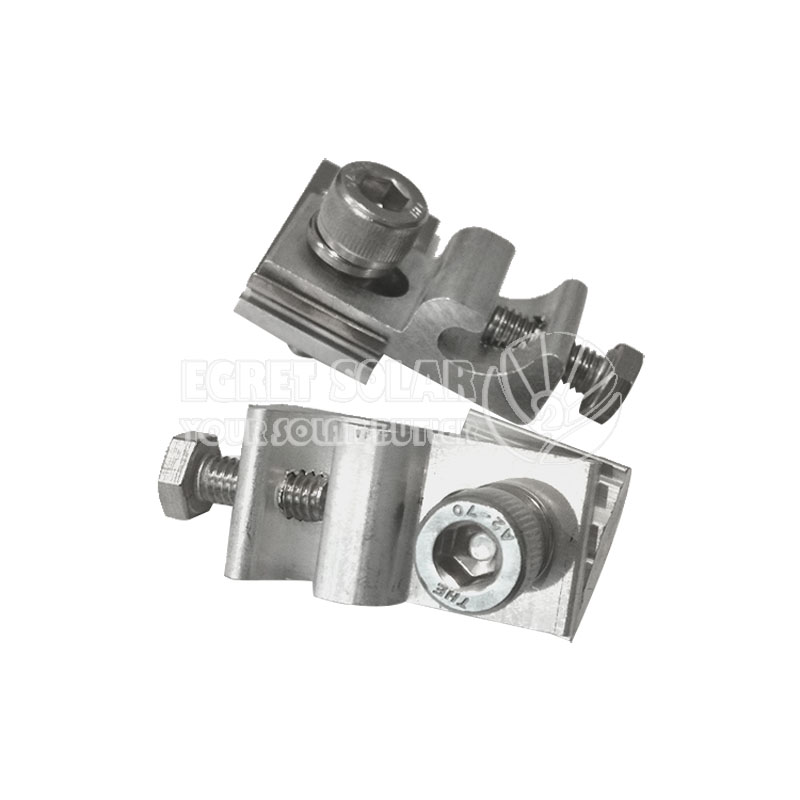

The low profile of the grounding lug allows it to be installed in a variety of positions with one solid or stranded copper wire or two copper wires .It is installed using stainless steel mounting hardware. When the hardware is tightened, the conductive plate specialized teeth embed into anodized aluminum or any electrically conductive metal to establish a gas tight electrical connection.

Our company，Xiamen Egret Solar New Energy Technology Co., Ltd.， has strong technical force and strong production capacity, the use of advanced management mode, with its own strong technical force and the professional production equipment, production of high quality products, looking forward to long-term cooperation with you.

PRODUCT PARAMETERS

Product name	Aluminum grounding lug solar mounting
Model Number	EG-GL01
Installation Site	Roof Mounting, ground mounting.
Surface Treatment	Anodized
Warranty	12 years
Snow Load	1.4KN/M²
Wind Speed	60M/S
OEM Service	Available
